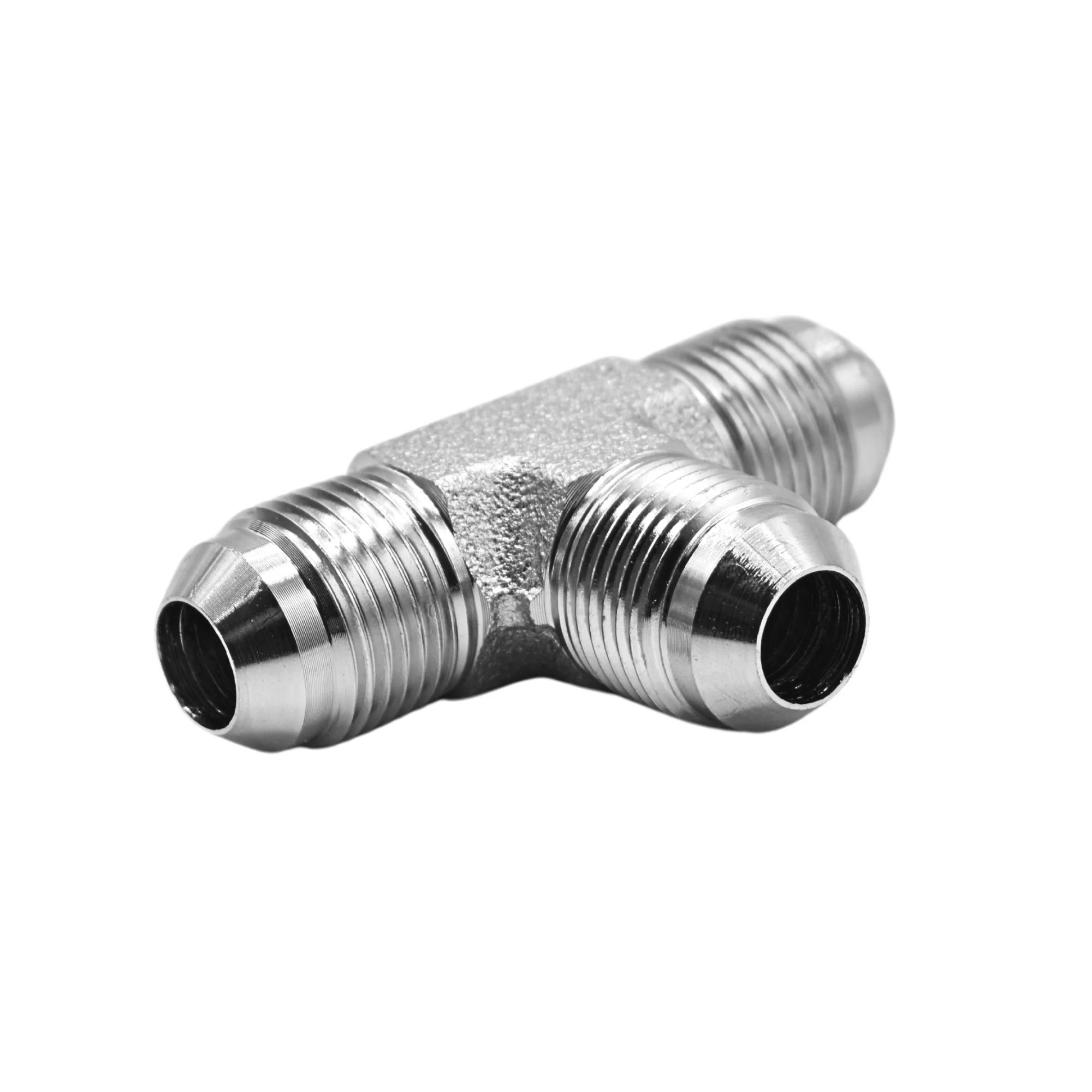

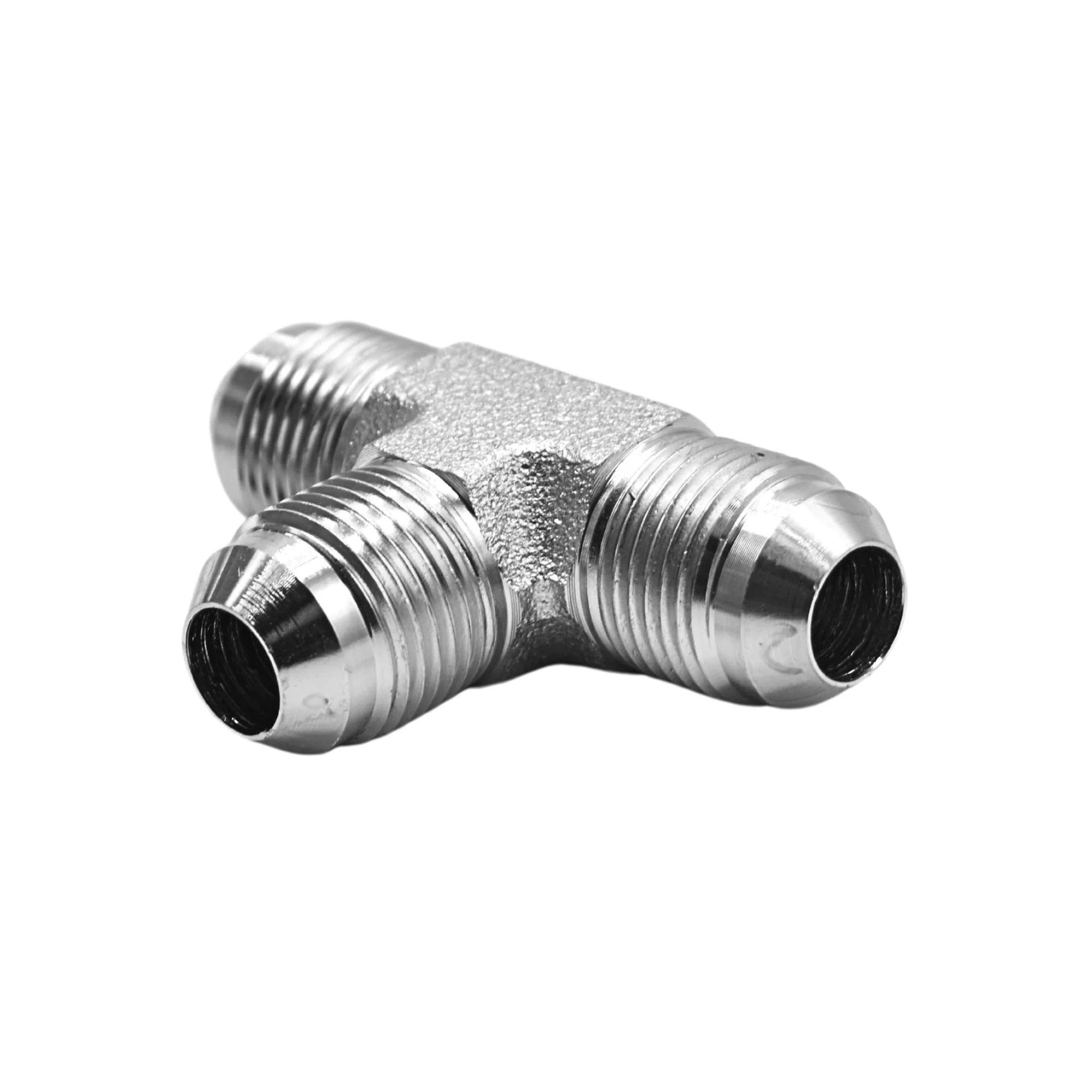

Hydraulics | 08MJ-08MJ-08MJ Tee Forg Adapter | 2603-08-08-08-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.500 |
| OVERALL LENGTH L2 IN | 1.250 |
| CENTERLINE LENGTH M IN | 1.250 |
| CENTERLINE LENGTH M2 IN | 1.250 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.262 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.047 |
$2.88
Original: $8.24
-65%Hydraulics | 08MJ-08MJ-08MJ Tee Forg Adapter | 2603-08-08-08-FG—
$8.24
$2.88Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.500 |
| OVERALL LENGTH L2 IN | 1.250 |
| CENTERLINE LENGTH M IN | 1.250 |
| CENTERLINE LENGTH M2 IN | 1.250 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.262 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.047 |
