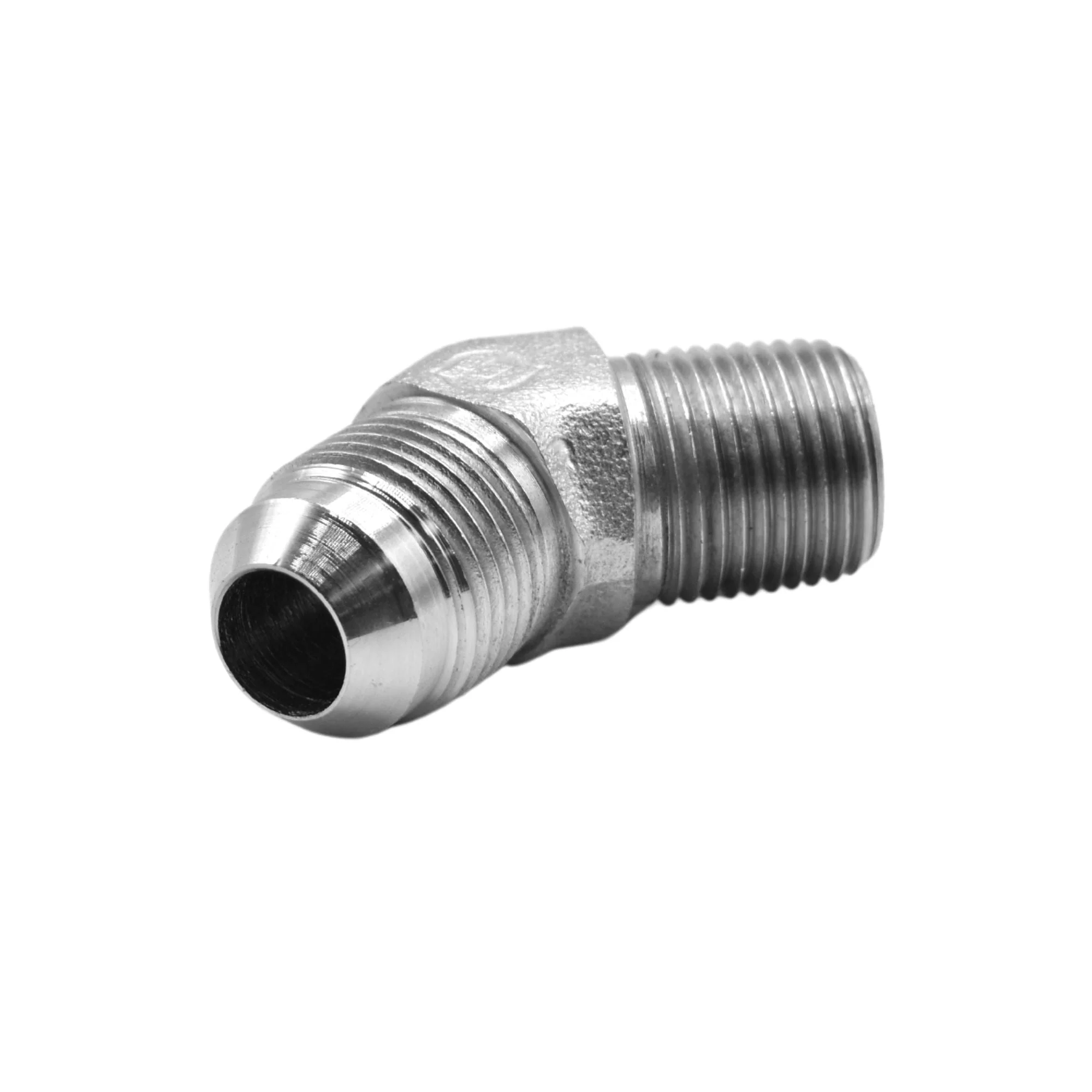

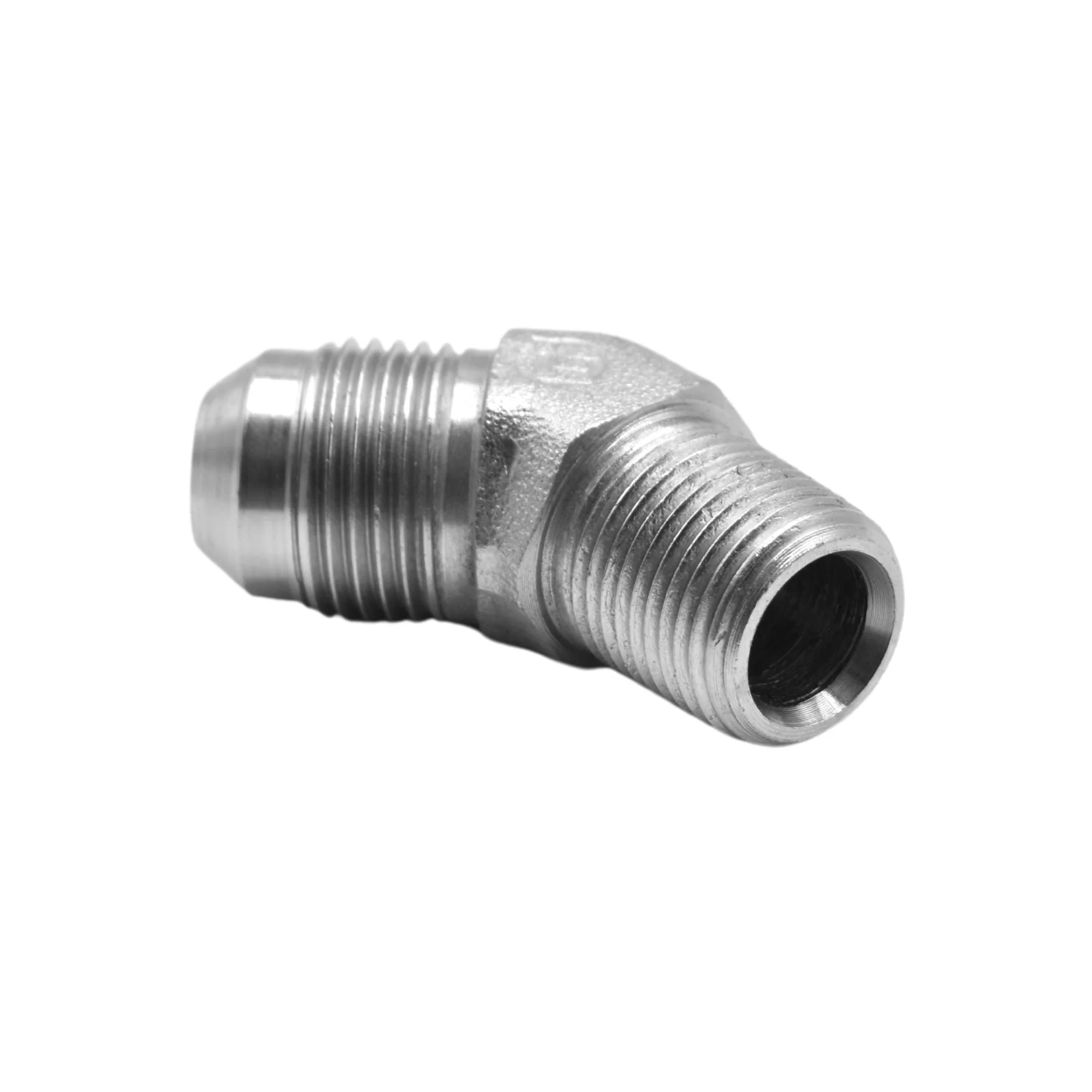

Hydraulics | 08MJ-06MP 45deg Elb Forg Adapter | 2503-08-06-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.406 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.950 |
| CENTERLINE LENGTH M IN | 0.980 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1437 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.918 |
$4.37
Hydraulics | 08MJ-06MP 45deg Elb Forg Adapter | 2503-08-06-FG—
$4.37
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.406 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.950 |
| CENTERLINE LENGTH M IN | 0.980 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1437 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.918 |
