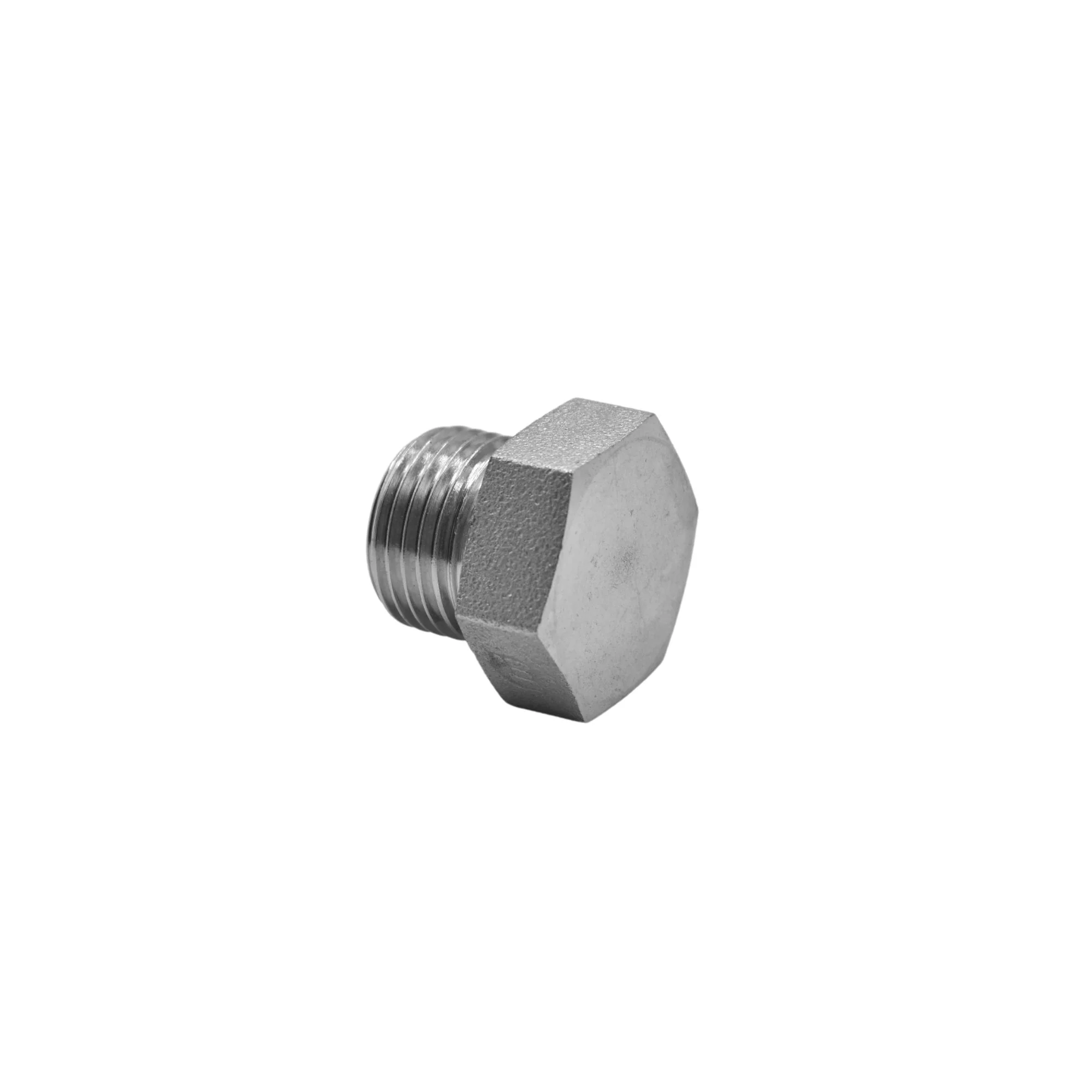

Hydraulics | 08MBSPP Hex Plug | 9522-P-08
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B1 | 1/2-14 |
| THREAD DRILL B1 (MM) | 12.7 |
| THREAD SPECIFICATION B1 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 24.0 |
| OVERALL LENGTH W (MM) | 10.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.150 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.068 |
