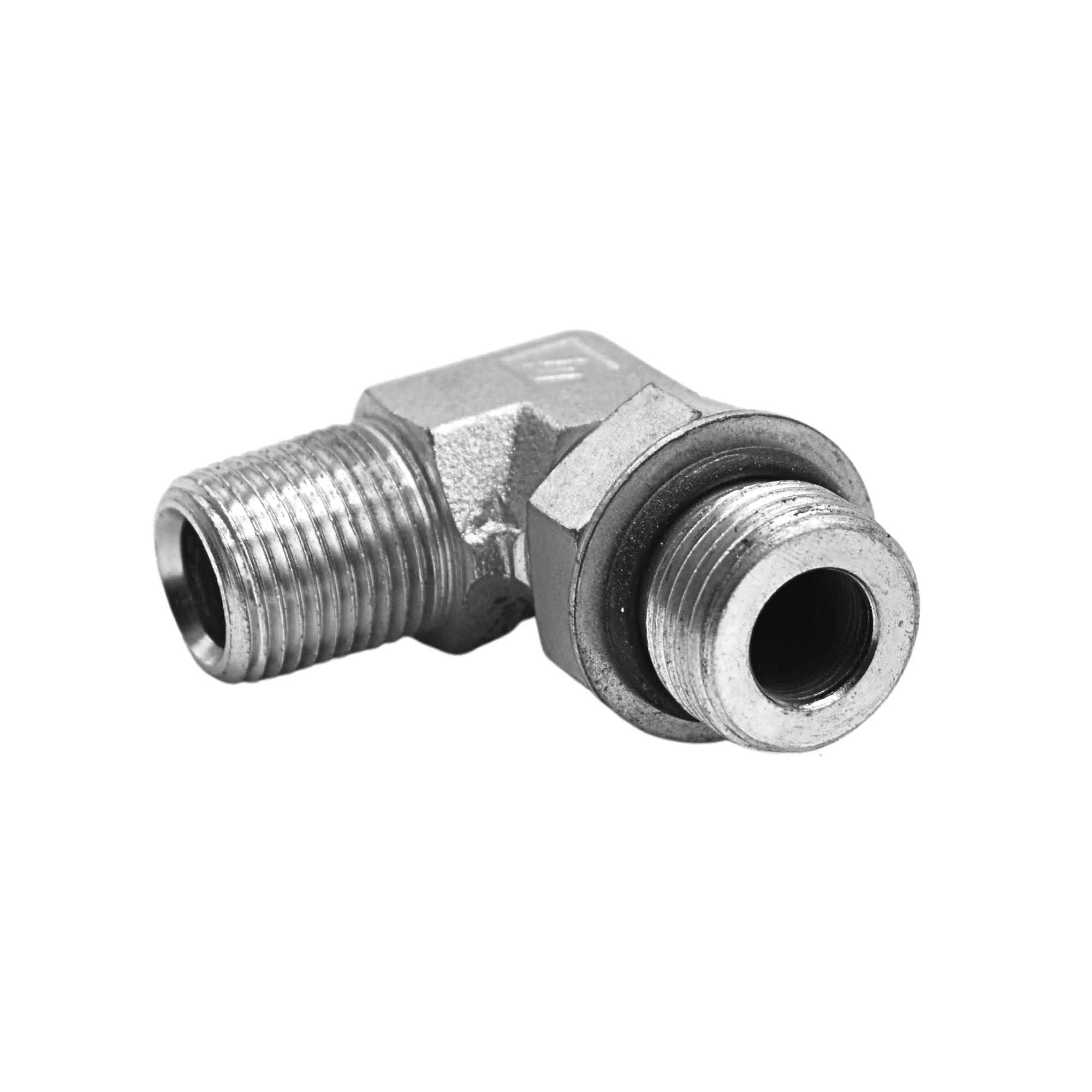

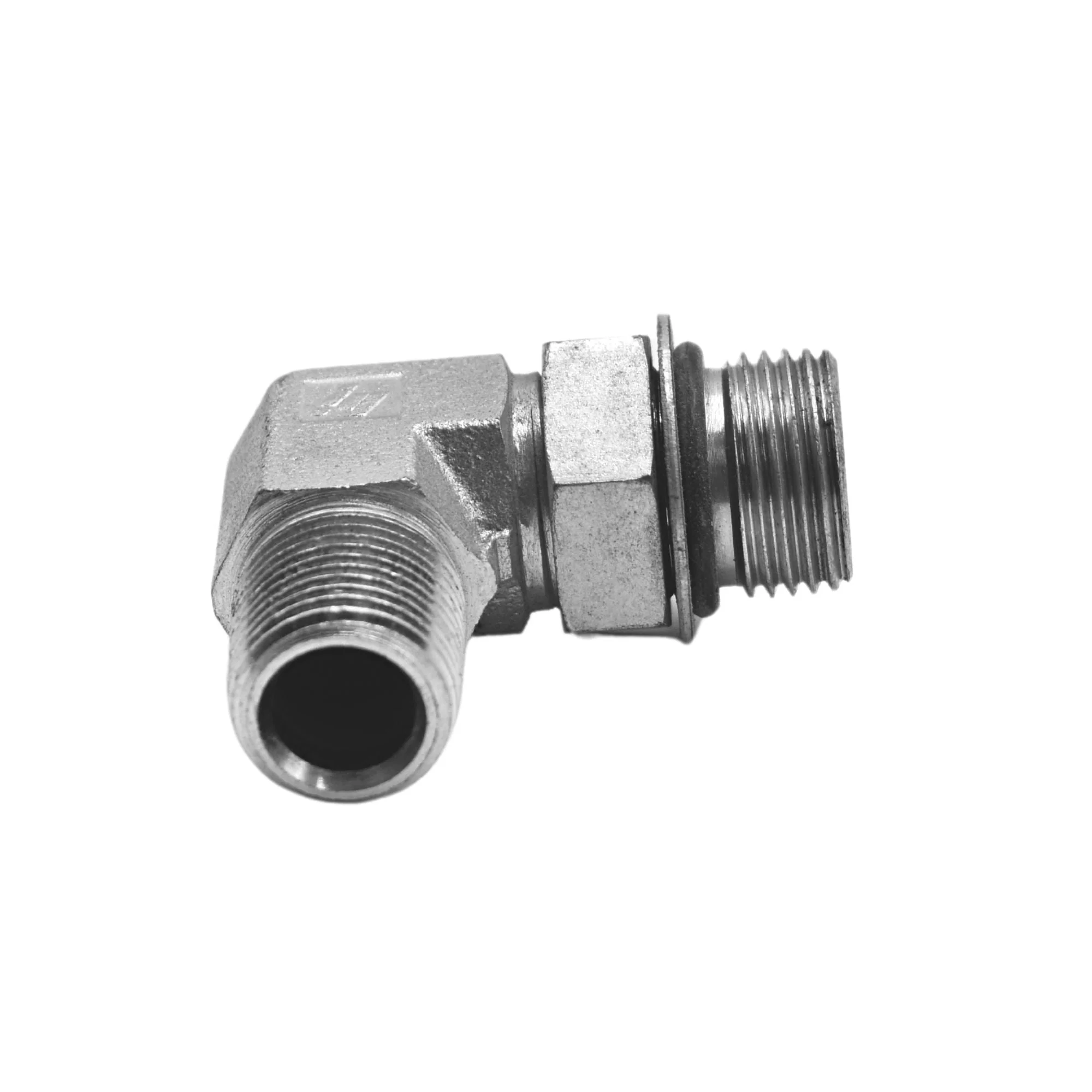

Hydraulics | 08MAORB-08MP 90deg Elb Forg Adapter | 6806-08-08-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.470 |
| CENTERLINE LENGTH M IN | 1.540 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.3125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$2.27
Original: $6.48
-65%Hydraulics | 08MAORB-08MP 90deg Elb Forg Adapter | 6806-08-08-NWO-FG—
$6.48
$2.27Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.470 |
| CENTERLINE LENGTH M IN | 1.540 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.3125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
