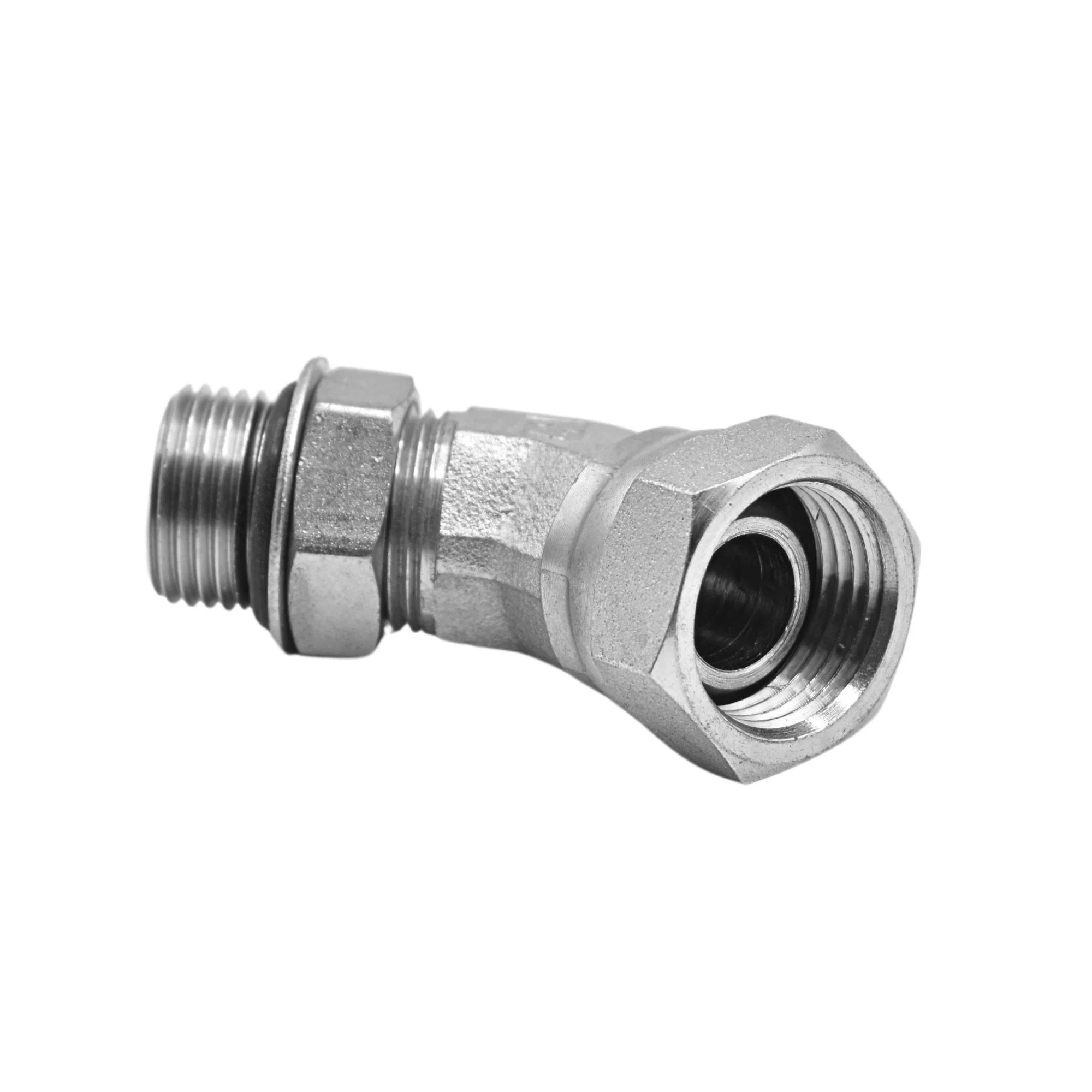

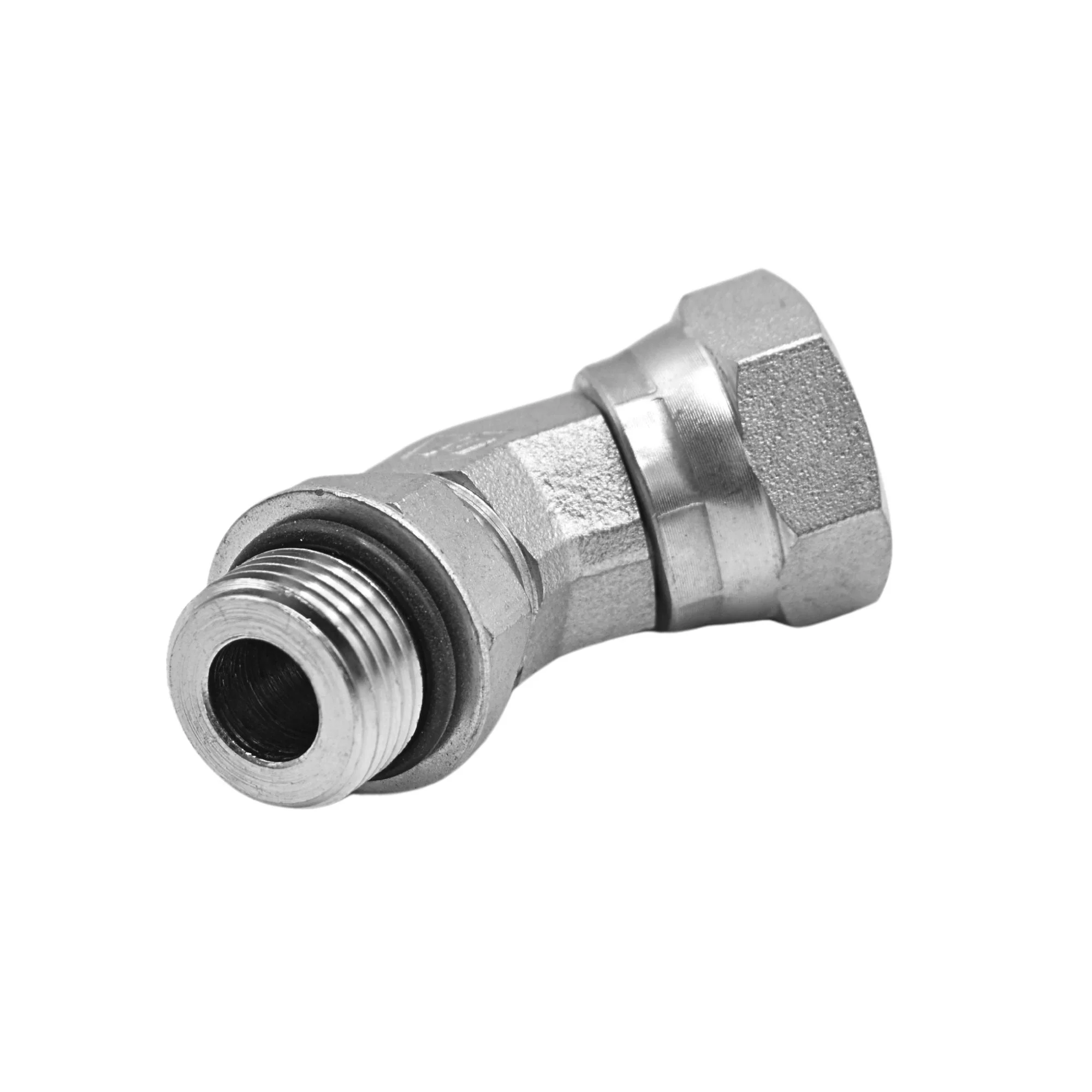

Hydraulics | 08MAORB-08FPS 45deg Elb Forg Adapter | 6902-08-08-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.44/0.46 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| C HEX 2 IN | 1.000 |
| OVERALL LENGTH L IN | 1.170 |
| OVERALL LENGTH L2 IN | 0.890 |
| CENTERLINE LENGTH M IN | 1.300 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.2625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$4.33
Original: $12.38
-65%Hydraulics | 08MAORB-08FPS 45deg Elb Forg Adapter | 6902-08-08-NWO-FG—
$12.38
$4.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.44/0.46 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| C HEX 2 IN | 1.000 |
| OVERALL LENGTH L IN | 1.170 |
| OVERALL LENGTH L2 IN | 0.890 |
| CENTERLINE LENGTH M IN | 1.300 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.2625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
