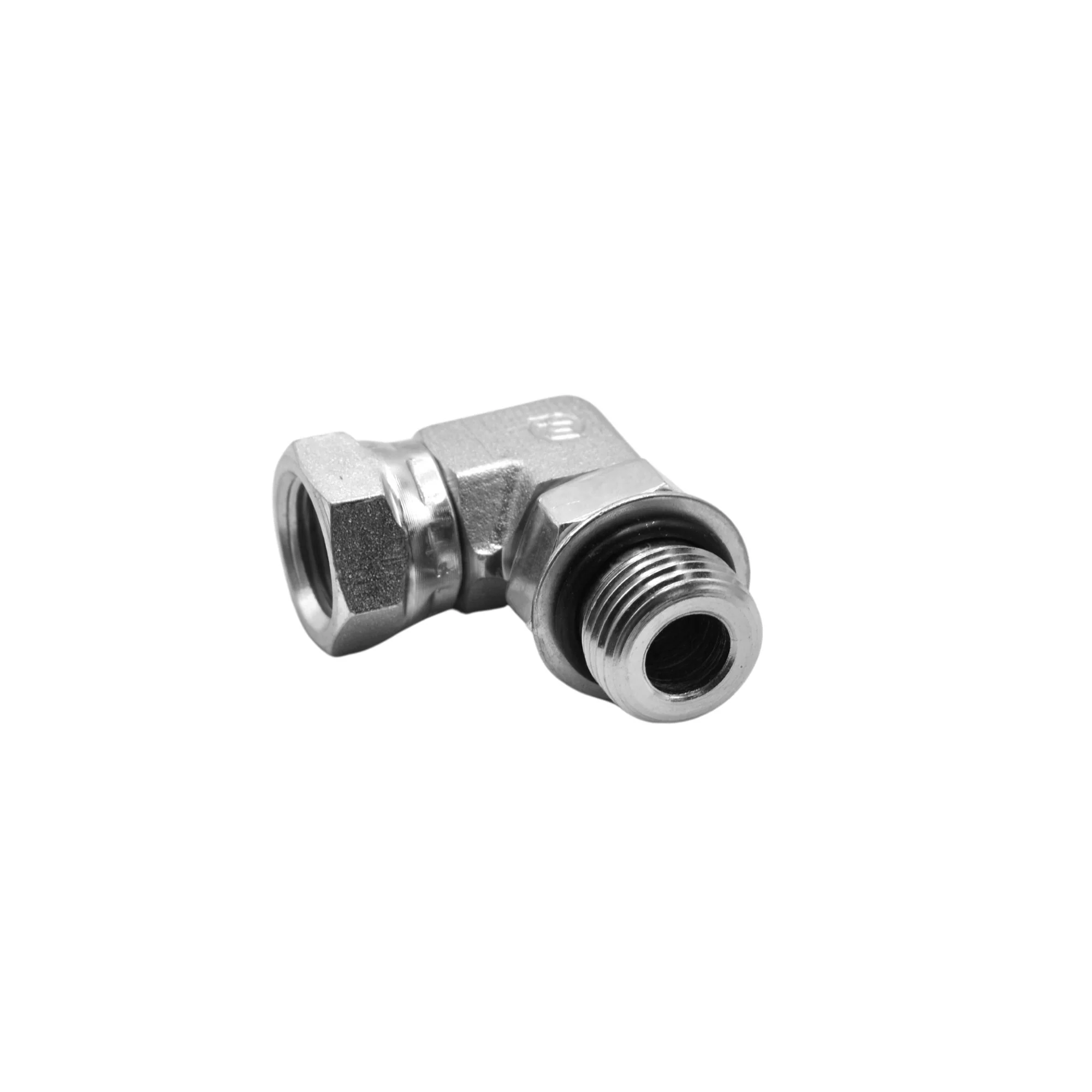

Hydraulics | 08MAORB-06FPS 90deg Elb Forg | 6901-08-06-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.320/0.360 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| C HEX 2 IN | 0.875 |
| OVERALL LENGTH L IN | 1.200 |
| OVERALL LENGTH L2 IN | 0.990 |
| CENTERLINE LENGTH M IN | 1.450 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.275 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$2.69
Original: $7.69
-65%Hydraulics | 08MAORB-06FPS 90deg Elb Forg | 6901-08-06-NWO-FG—
$7.69
$2.69Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.320/0.360 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| C HEX 2 IN | 0.875 |
| OVERALL LENGTH L IN | 1.200 |
| OVERALL LENGTH L2 IN | 0.990 |
| CENTERLINE LENGTH M IN | 1.450 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.275 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
