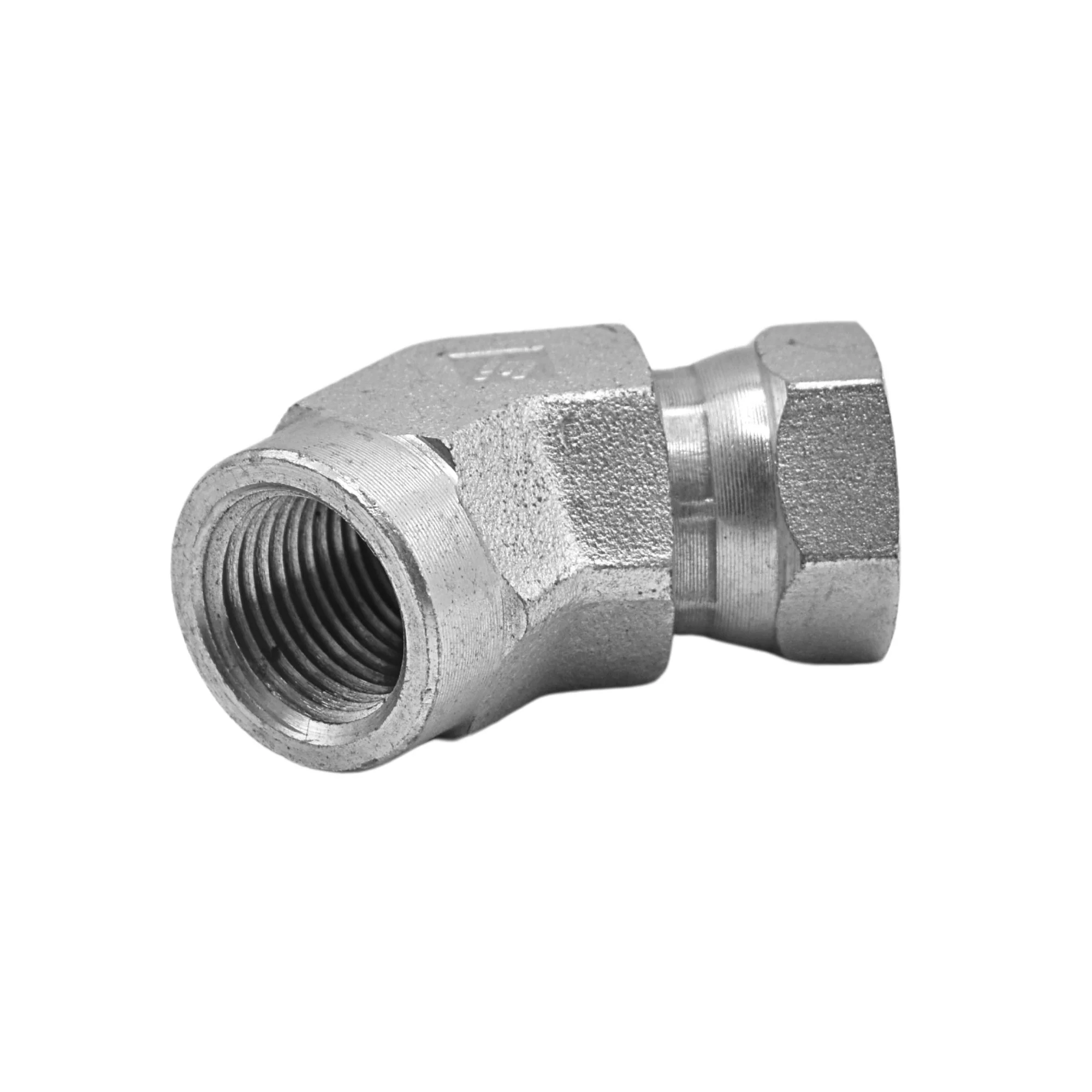

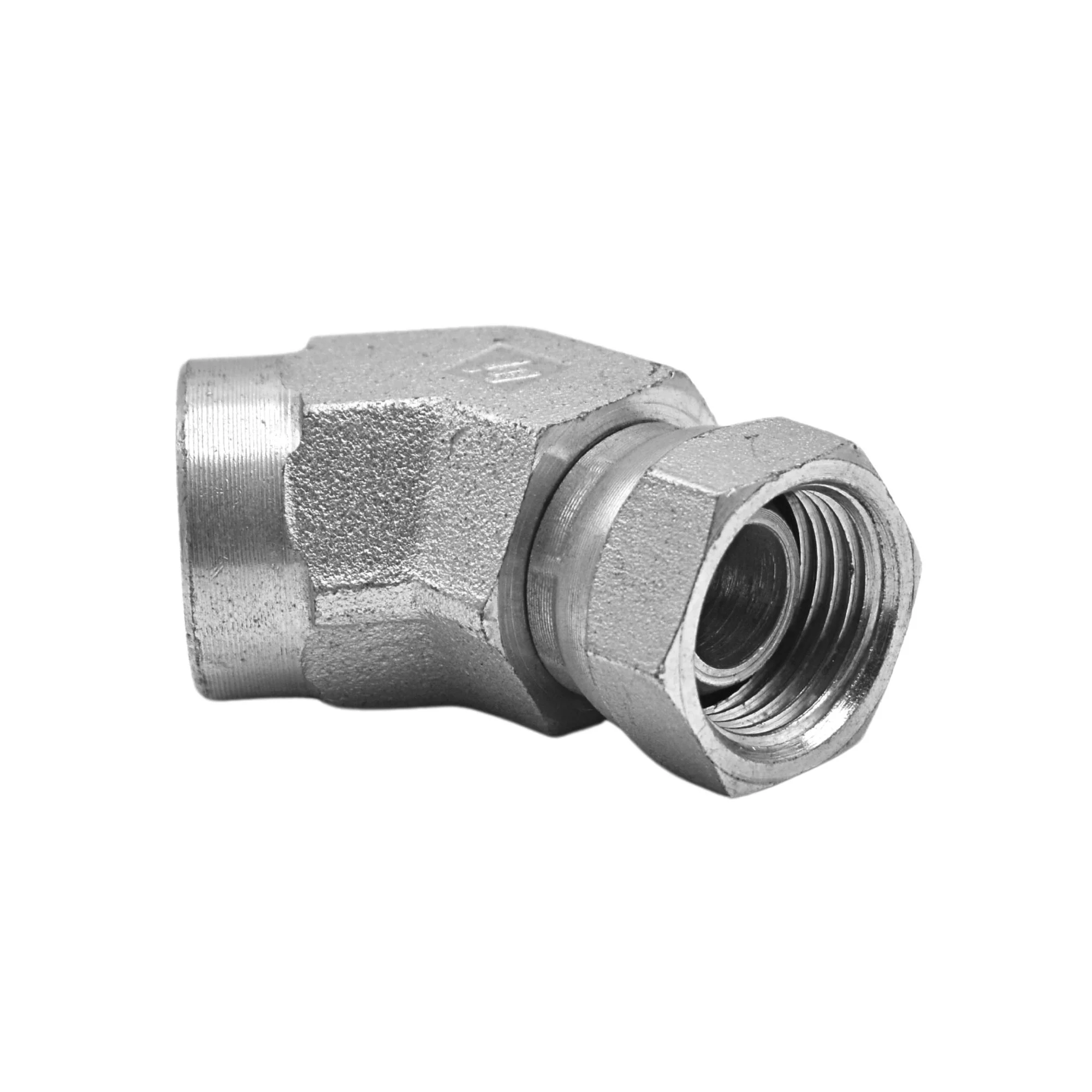

Hydraulics | 08FP-08FPS 45deg Elb Forg Adapter | 1504-08-08-FG
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.440 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.062 |
| OVERALL LENGTH L IN | 0.940 |
| CENTERLINE LENGTH M IN | 1.020 |
| CENTERLINE LENGTH M2 IN | 1.300 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$7.43
Hydraulics | 08FP-08FPS 45deg Elb Forg Adapter | 1504-08-08-FG—
$7.43
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.440 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.062 |
| OVERALL LENGTH L IN | 0.940 |
| CENTERLINE LENGTH M IN | 1.020 |
| CENTERLINE LENGTH M2 IN | 1.300 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
