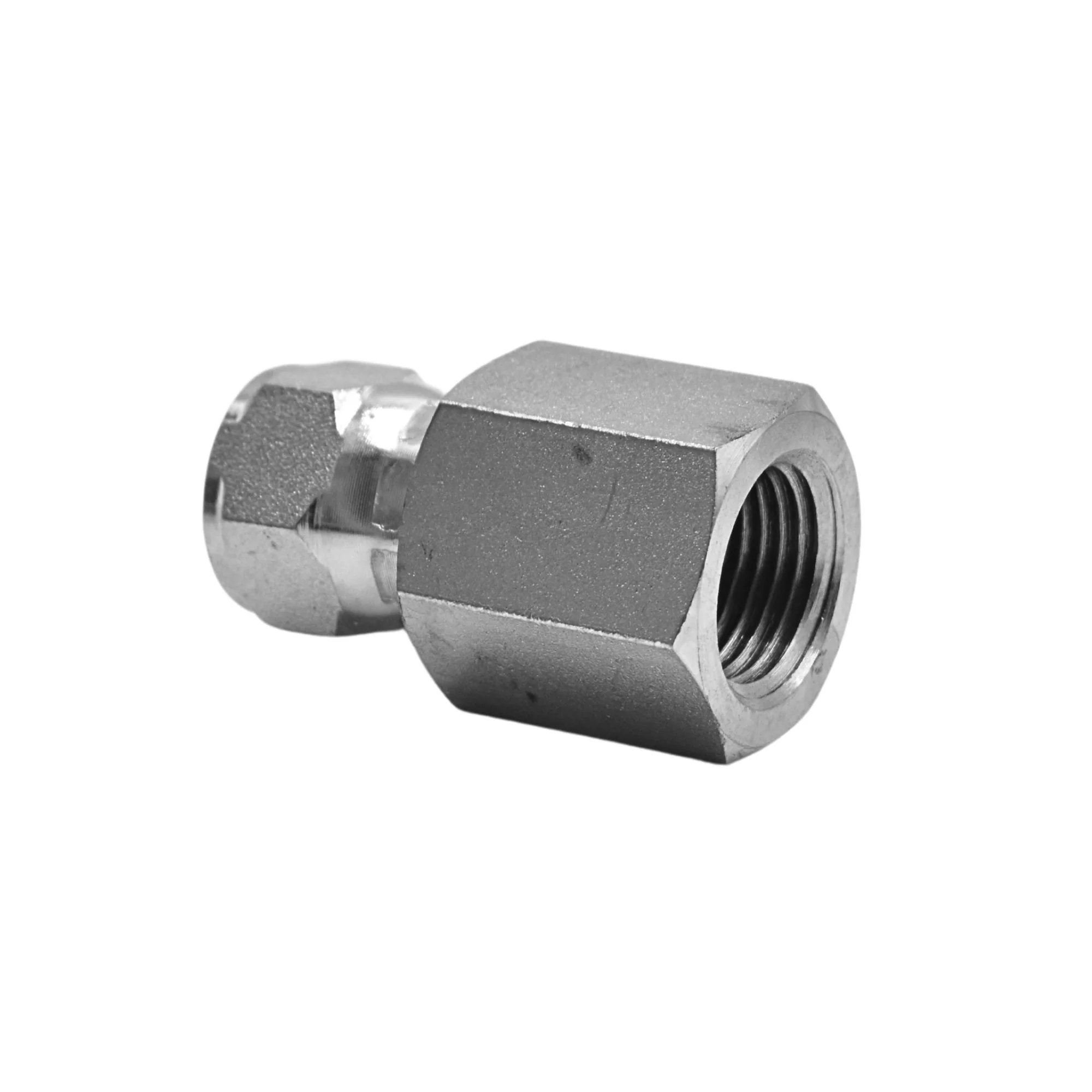

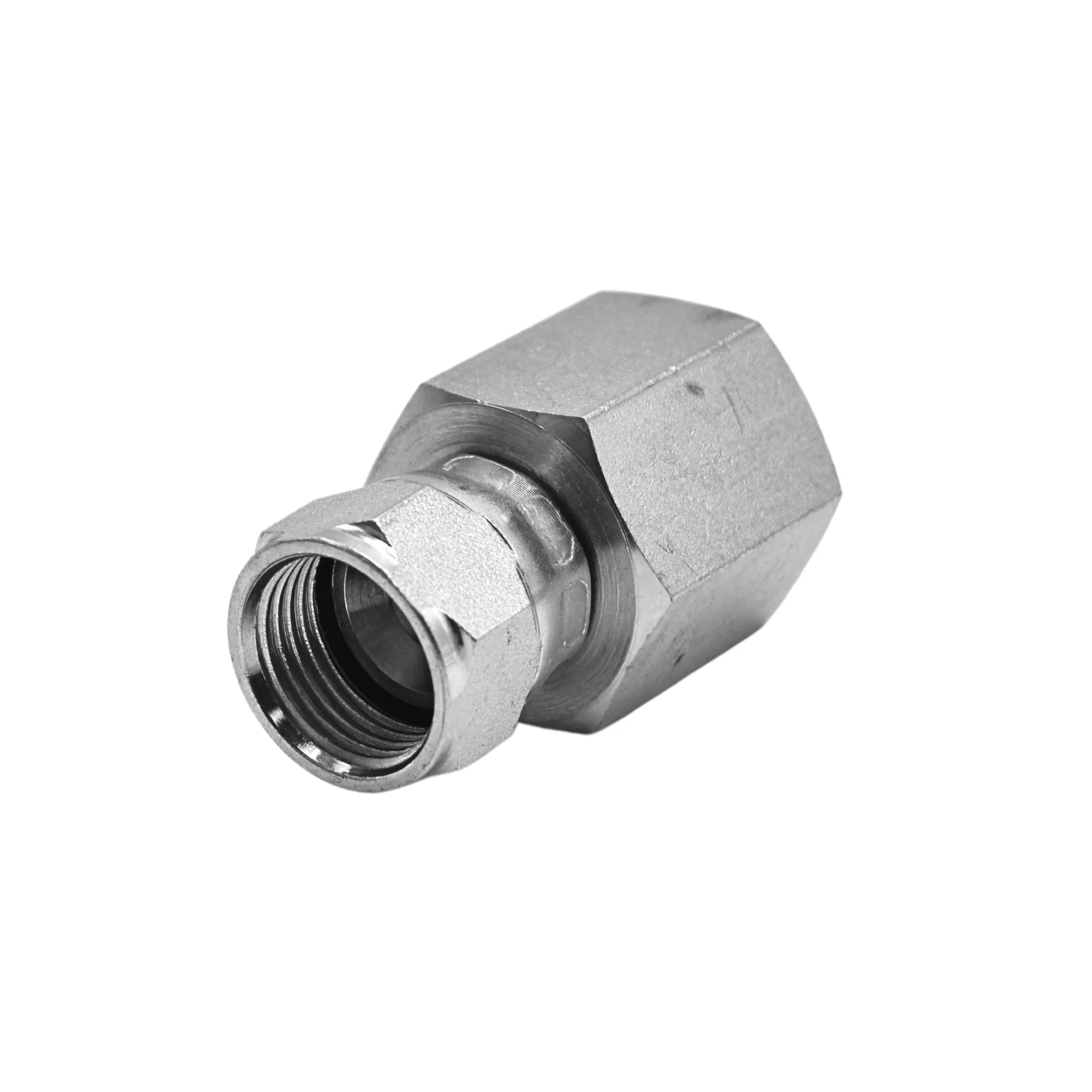

Hydraulics | 08FP-08FJS Straight Adapter | 6506-08-08
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.910 |
| OVERALL LENGTH L2 IN | 1.480 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2985 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$3.20
Original: $9.14
-65%Hydraulics | 08FP-08FJS Straight Adapter | 6506-08-08—
$9.14
$3.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.910 |
| OVERALL LENGTH L2 IN | 1.480 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2985 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
