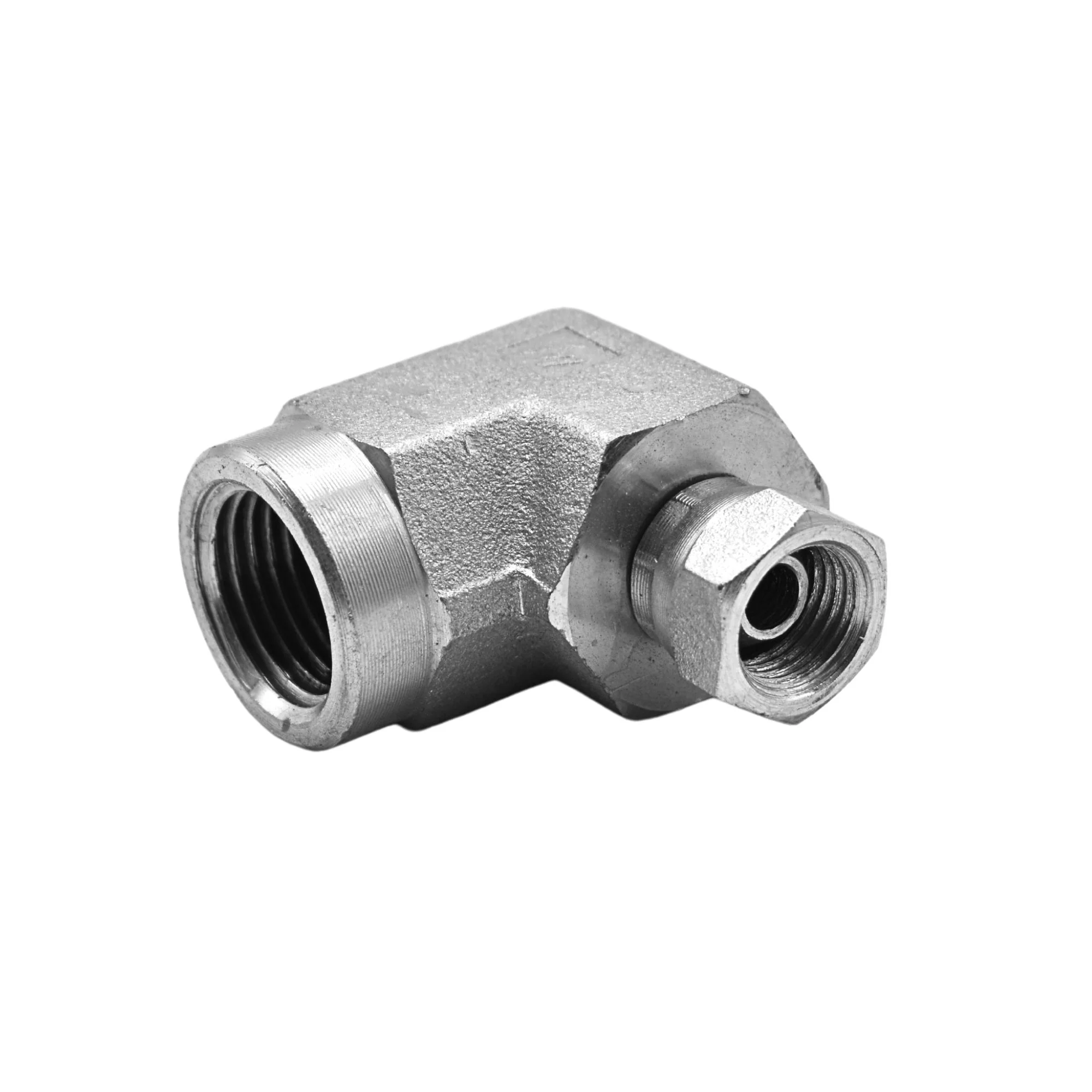

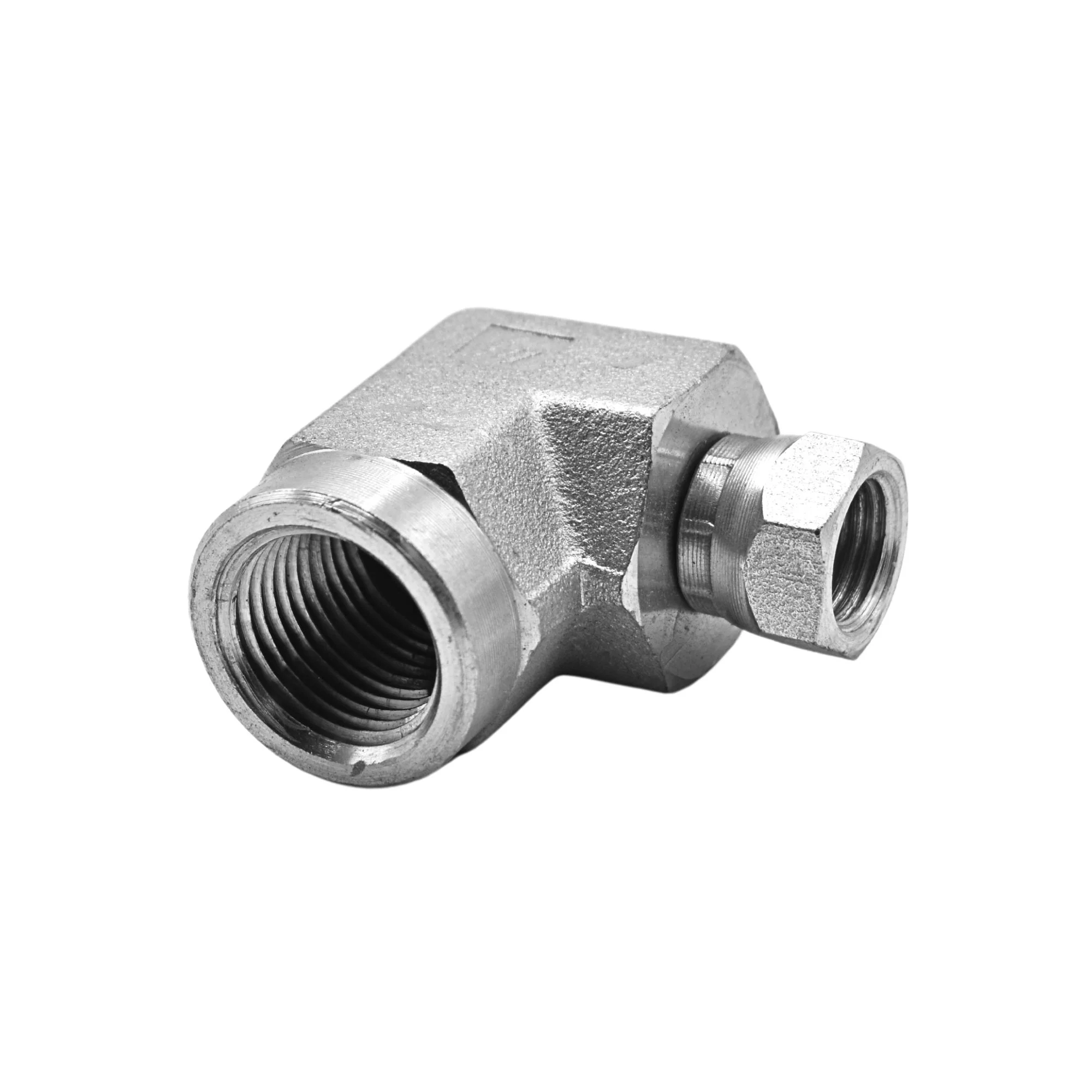

Hydraulics | 08FP-04FPS 90deg Forged Adapter | 1502-08-04-FG
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 1.230 |
| CENTERLINE LENGTH M IN | 1.340 |
| CENTERLINE LENGTH M2 IN | 1.150 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.4125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.13 |
$13.12
Hydraulics | 08FP-04FPS 90deg Forged Adapter | 1502-08-04-FG—
$13.12
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 1.230 |
| CENTERLINE LENGTH M IN | 1.340 |
| CENTERLINE LENGTH M2 IN | 1.150 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.4125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.13 |
