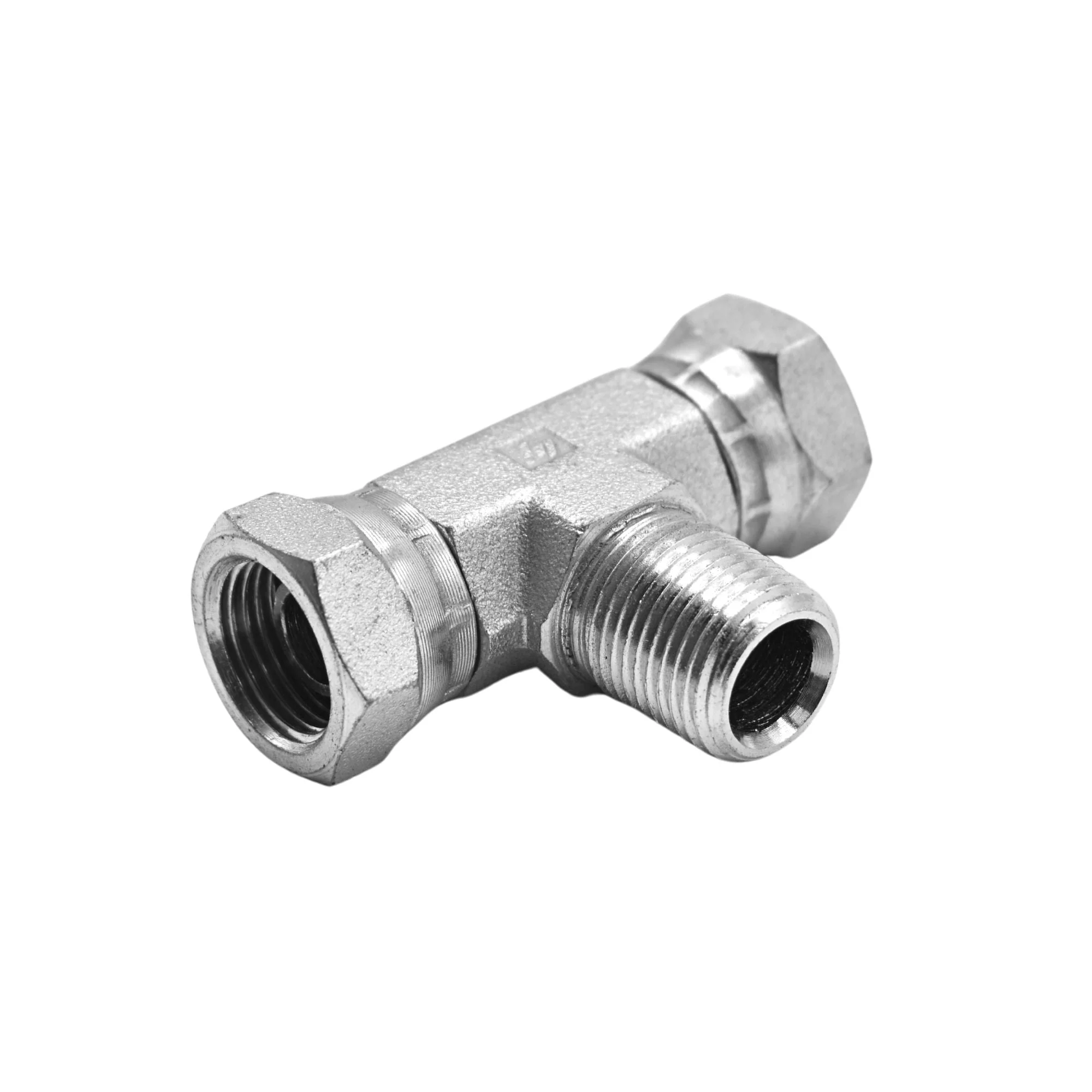

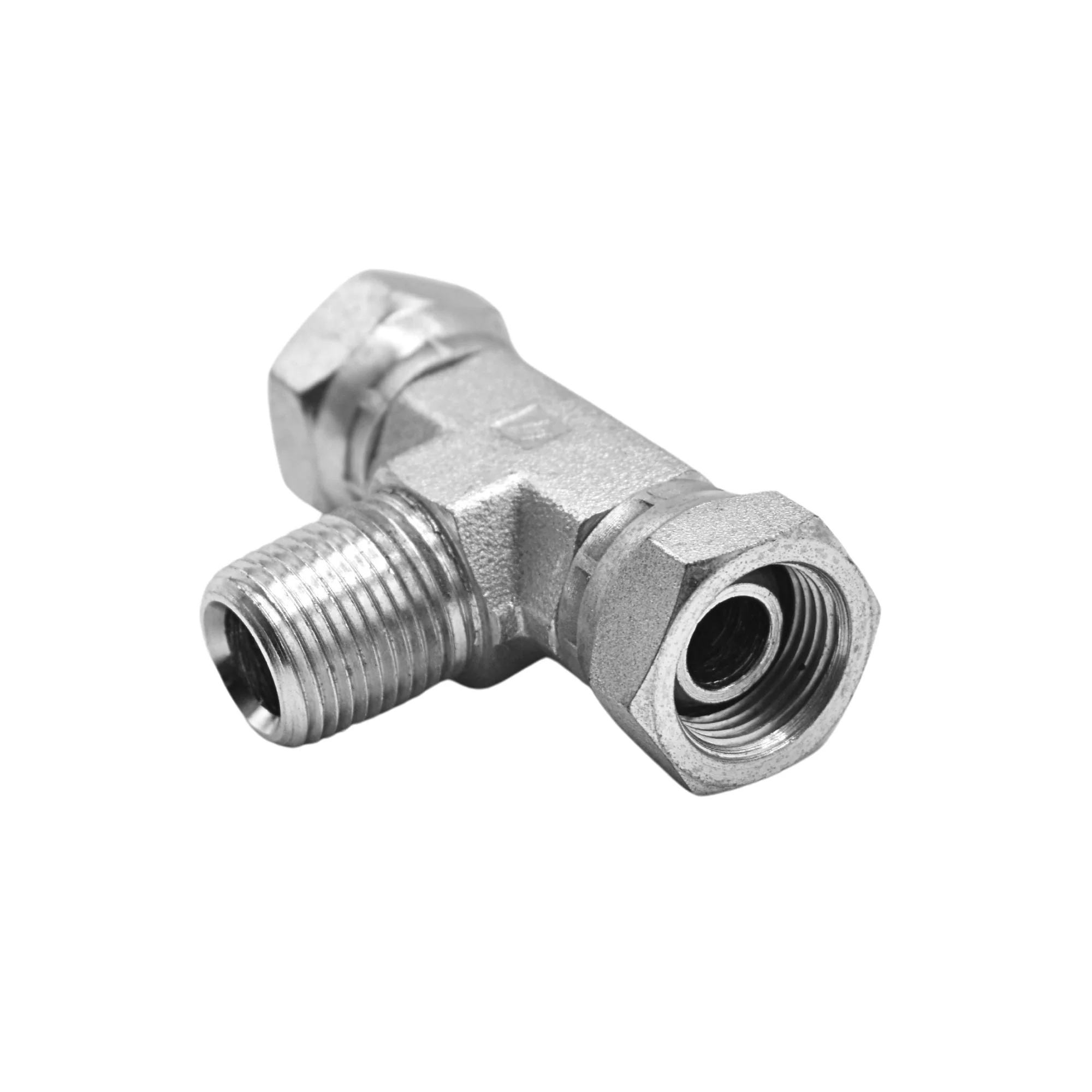

Hydraulics | 06MP-06FPS-06FPS Tee Forg Adapter | 1601-06-06-06-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.340 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPSM SWIVEL |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.340 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.750 |
| C HEX 2 IN | 0.750 |
| OVERALL LENGTH L IN | 2.400 |
| OVERALL LENGTH L2 IN | 1.220 |
| CENTERLINE LENGTH M IN | 1.200 |
| CENTERLINE LENGTH M2 IN | 0.990 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$12.33
Hydraulics | 06MP-06FPS-06FPS Tee Forg Adapter | 1601-06-06-06-FG—
$12.33
