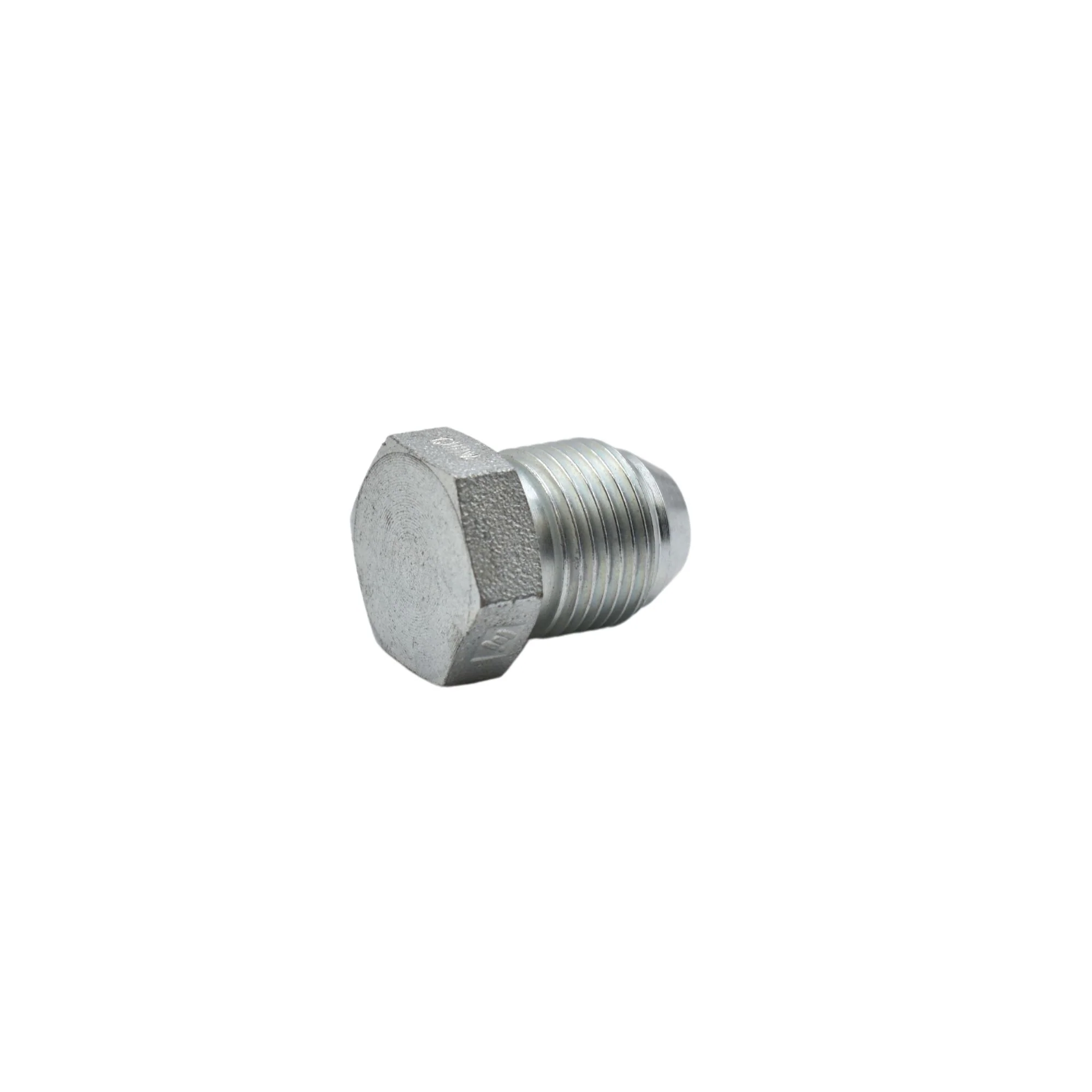

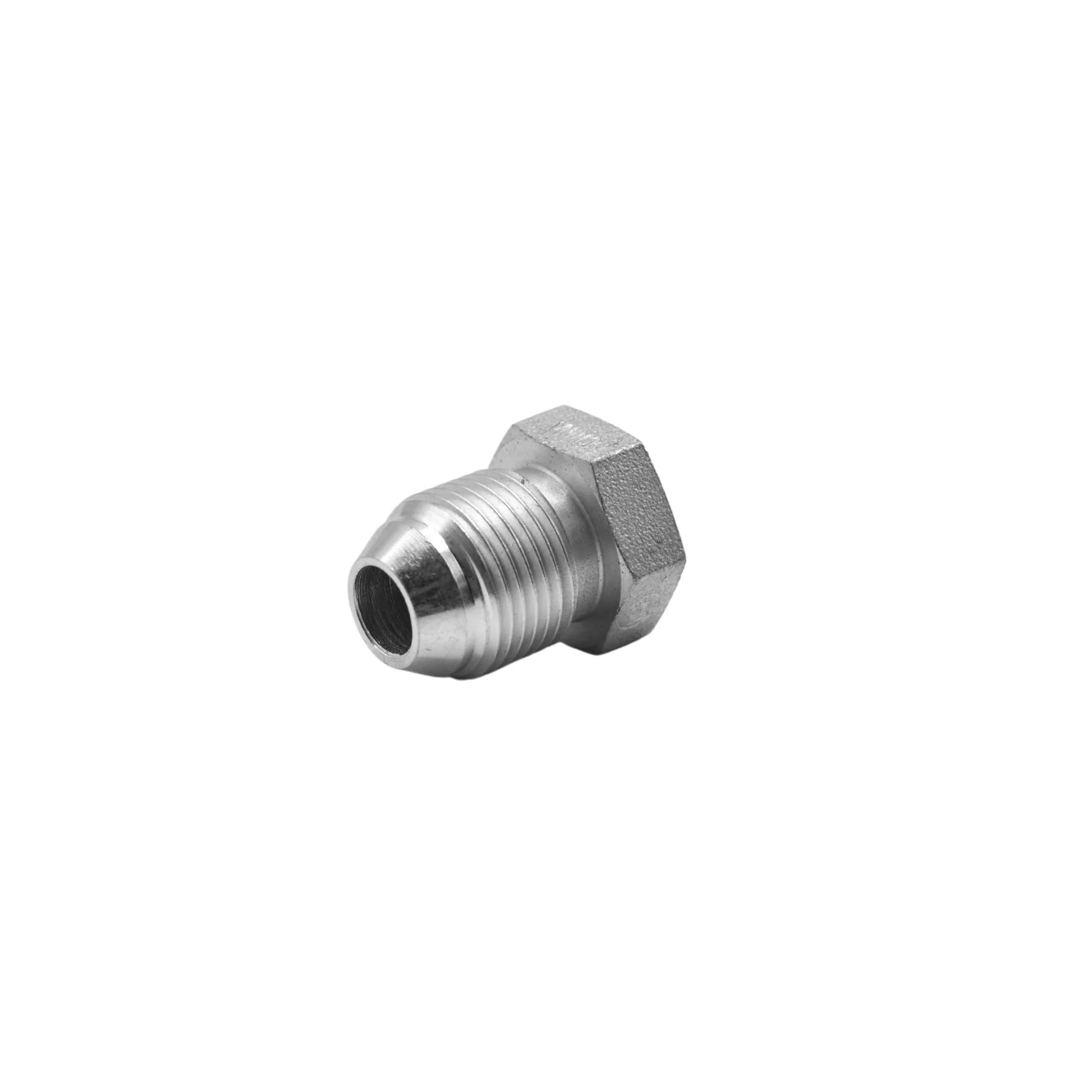

Hydraulics | 06MJIS Plug | 7588-P-06
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B1 | 3/8-19 |
| THREAD DRILL B1 (MM) | 10.0 |
| THREAD SPECIFICATION B1 | JIS B 0202 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 24.6 |
| OVERALL LENGTH W (MM) | 6.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.075 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.542 |
$3.22
Original: $9.20
-65%Hydraulics | 06MJIS Plug | 7588-P-06—
$9.20
$3.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | MALE JIS 30 DEGREE FLARE |
| THREAD SIZE B1 | 3/8-19 |
| THREAD DRILL B1 (MM) | 10.0 |
| THREAD SPECIFICATION B1 | JIS B 0202 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 24.6 |
| OVERALL LENGTH W (MM) | 6.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.075 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.542 |
