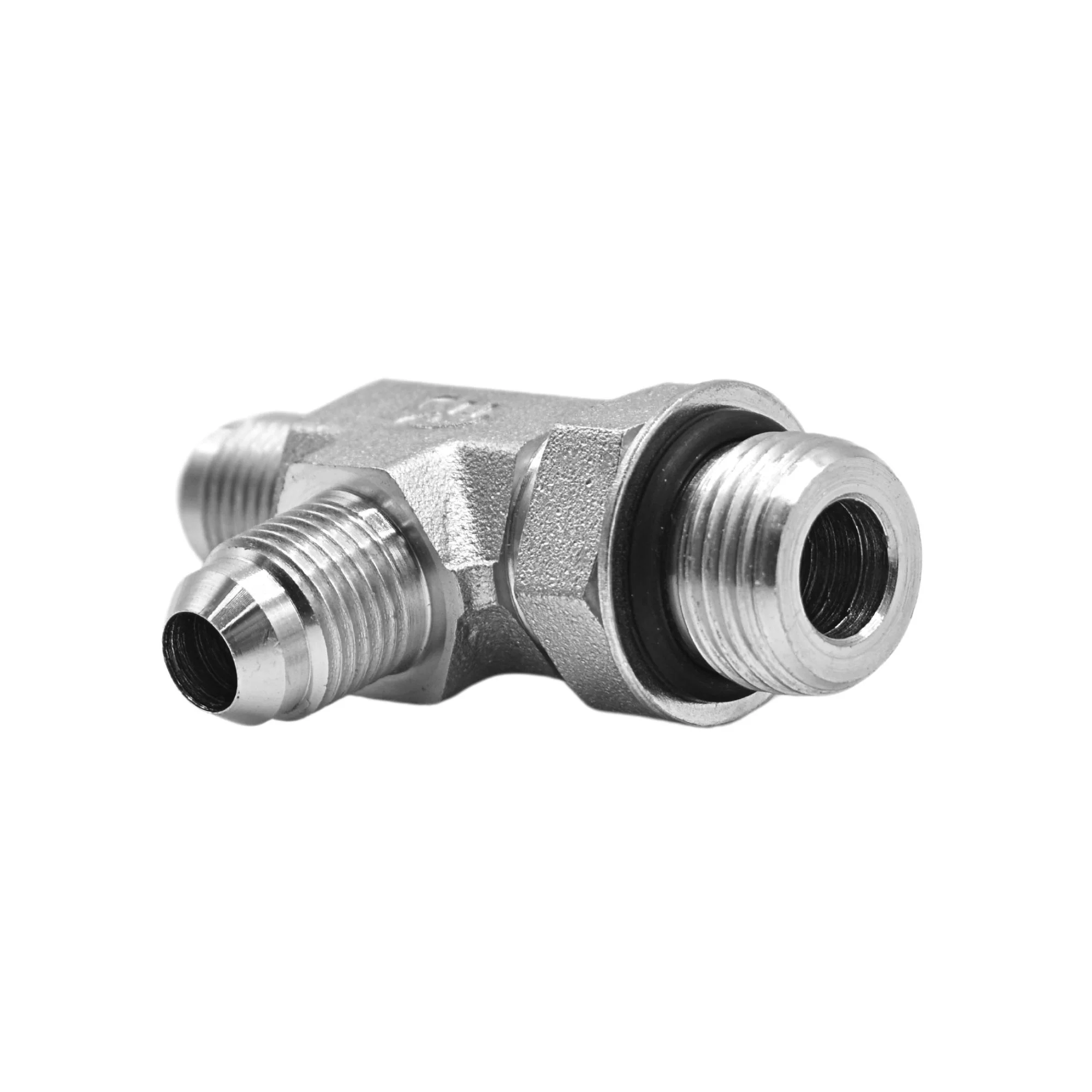

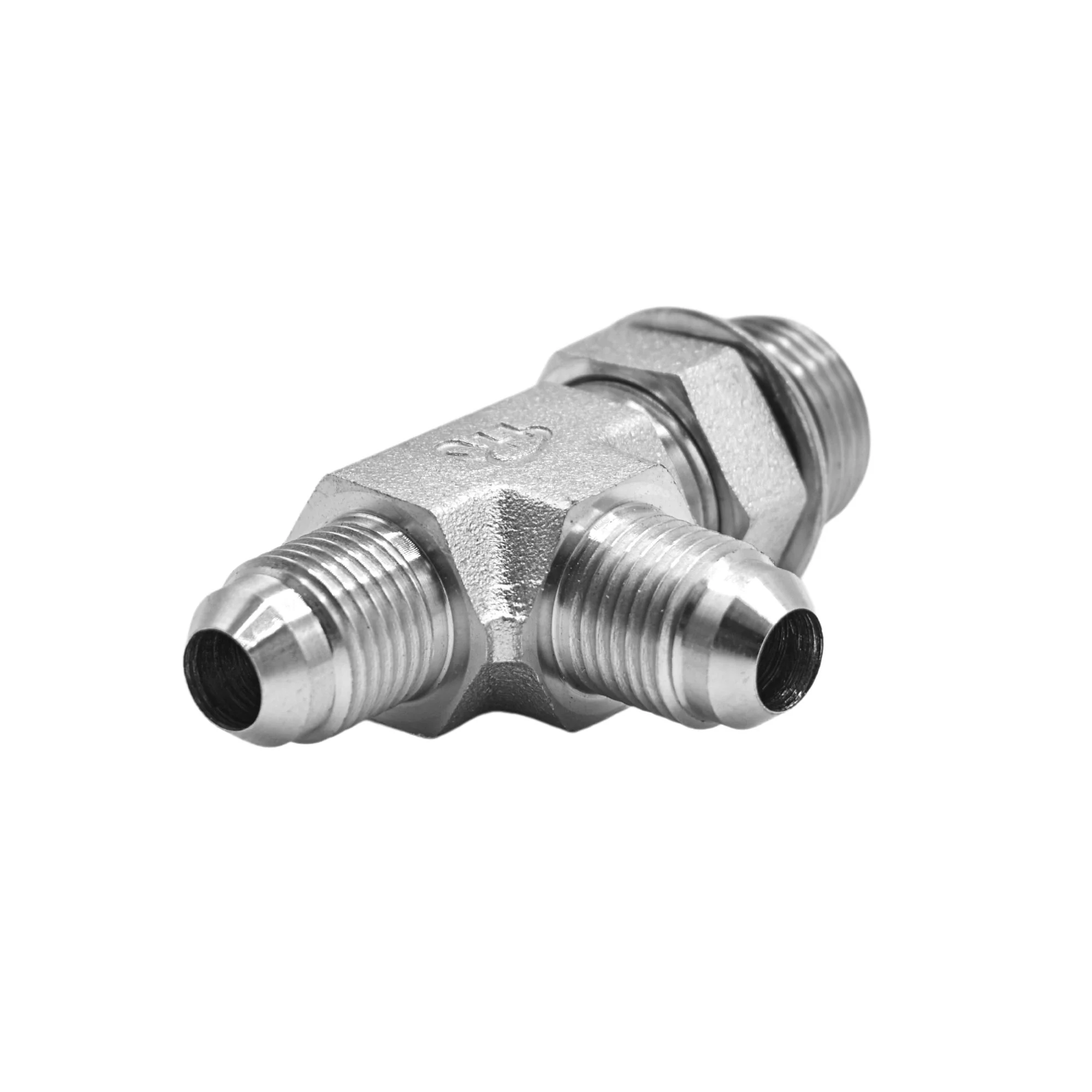

Hydraulics | 06MJ-08MAORB-06MJ Run Tee Forg Adapter | 6804-06-08-06-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.140 |
| CENTERLINE LENGTH M IN | 1.140 |
| CENTERLINE LENGTH M2 IN | 1.450 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.2605 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$3.62
Original: $10.33
-65%Hydraulics | 06MJ-08MAORB-06MJ Run Tee Forg Adapter | 6804-06-08-06-NWO-FG—
$10.33
$3.62Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.140 |
| CENTERLINE LENGTH M IN | 1.140 |
| CENTERLINE LENGTH M2 IN | 1.450 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.2605 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
