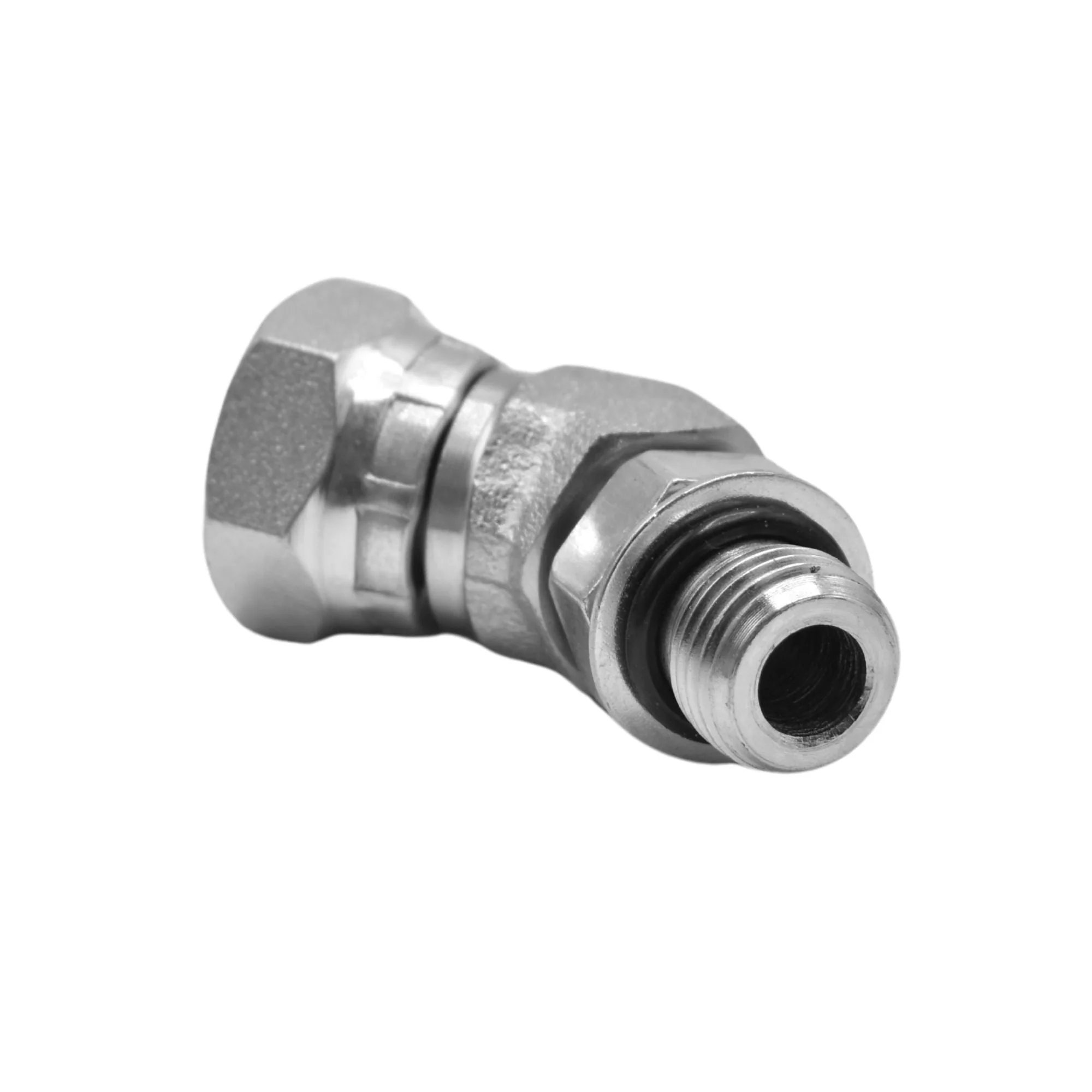

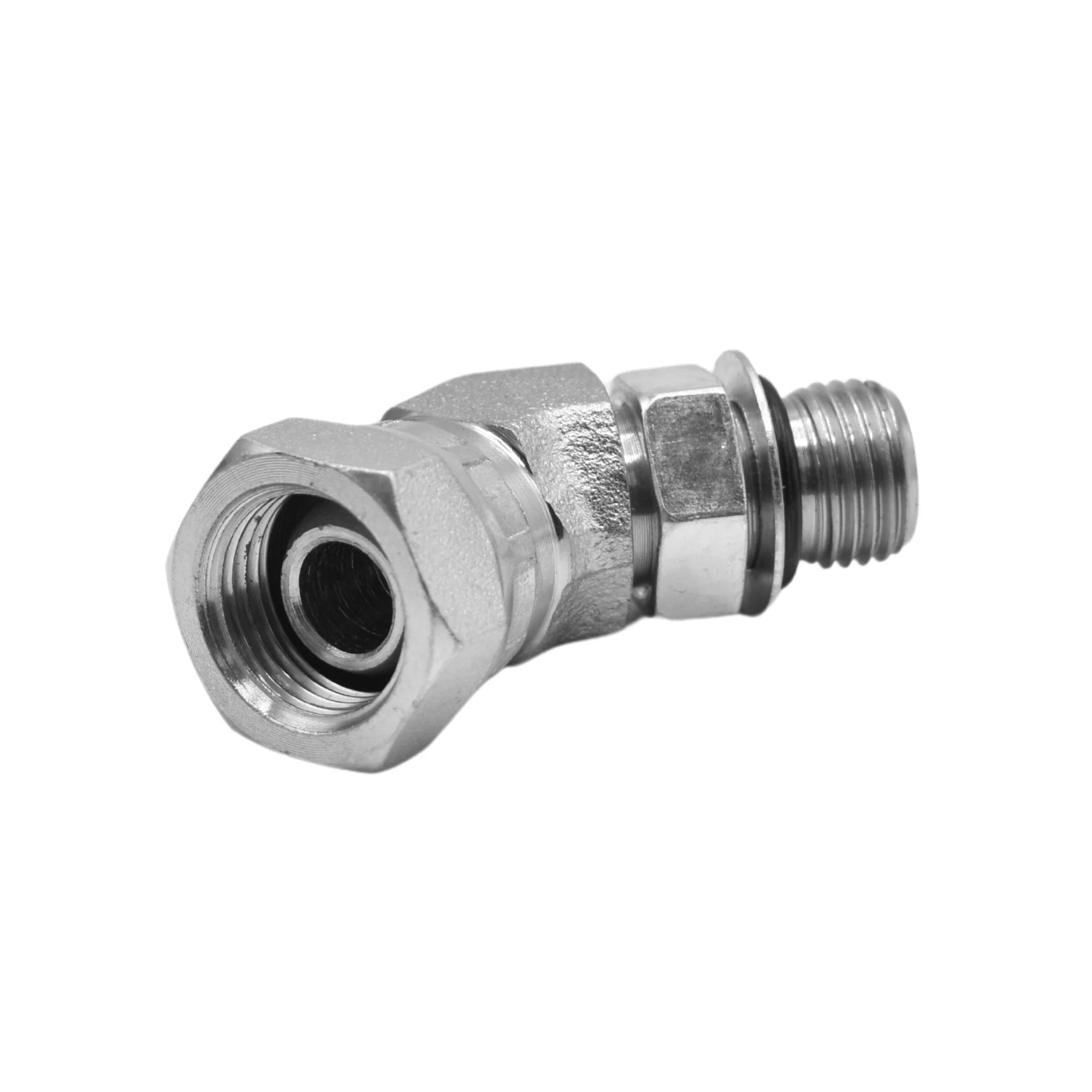

Hydraulics | 06MAORB-06FPS 45deg Elb Forg Adapter | 6902-06-06-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.32/0.36 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| C HEX 2 IN | 0.875 |
| OVERALL LENGTH L IN | 1.040 |
| OVERALL LENGTH L2 IN | 0.830 |
| CENTERLINE LENGTH M IN | 1.140 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.15 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$3.32
Original: $9.49
-65%Hydraulics | 06MAORB-06FPS 45deg Elb Forg Adapter | 6902-06-06-NWO-FG—
$9.49
$3.32Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.32/0.36 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| C HEX 2 IN | 0.875 |
| OVERALL LENGTH L IN | 1.040 |
| OVERALL LENGTH L2 IN | 0.830 |
| CENTERLINE LENGTH M IN | 1.140 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.15 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
