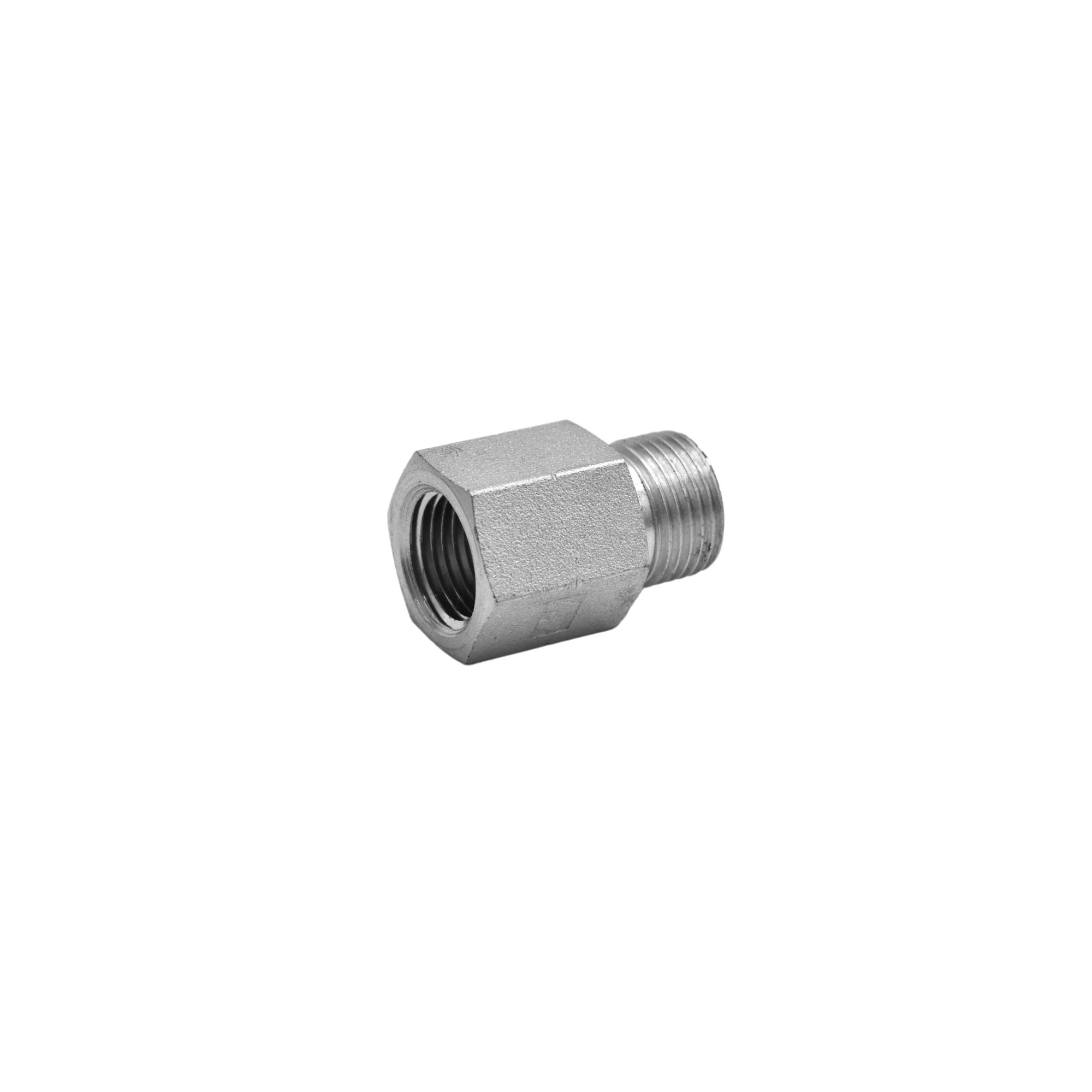

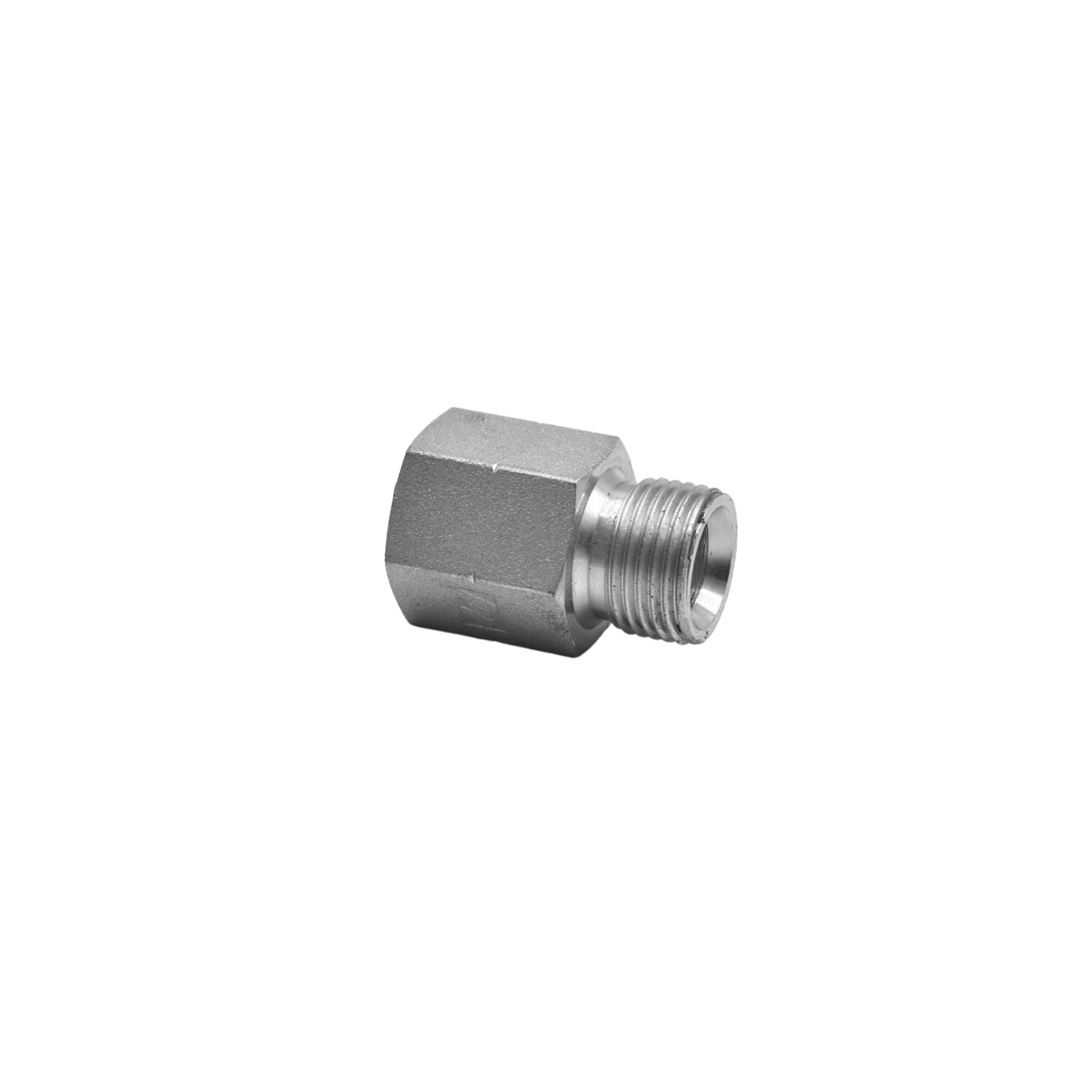

Hydraulics | 06FP-18mm Metric Straight | 7045-06-18
| THREAD TYPE B1 | FEMALE NPTF |
| THREAD SIZE B1 | 3/8-18 |
| THREAD DRILL B1 (MM) | 13.5 |
| THREAD SPECIFICATION B1 | ANSI B1.20.3 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | ISO 9974 |
| BODY HEX (MM) | 22.2 |
| OVERALL LENGTH L (MM) | 34.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.173 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) |
1.038 |
$9.13
Original: $26.08
-65%Hydraulics | 06FP-18mm Metric Straight | 7045-06-18—
$26.08
$9.13Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | FEMALE NPTF |
| THREAD SIZE B1 | 3/8-18 |
| THREAD DRILL B1 (MM) | 13.5 |
| THREAD SPECIFICATION B1 | ANSI B1.20.3 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | ISO 9974 |
| BODY HEX (MM) | 22.2 |
| OVERALL LENGTH L (MM) | 34.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.173 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) |
1.038 |
