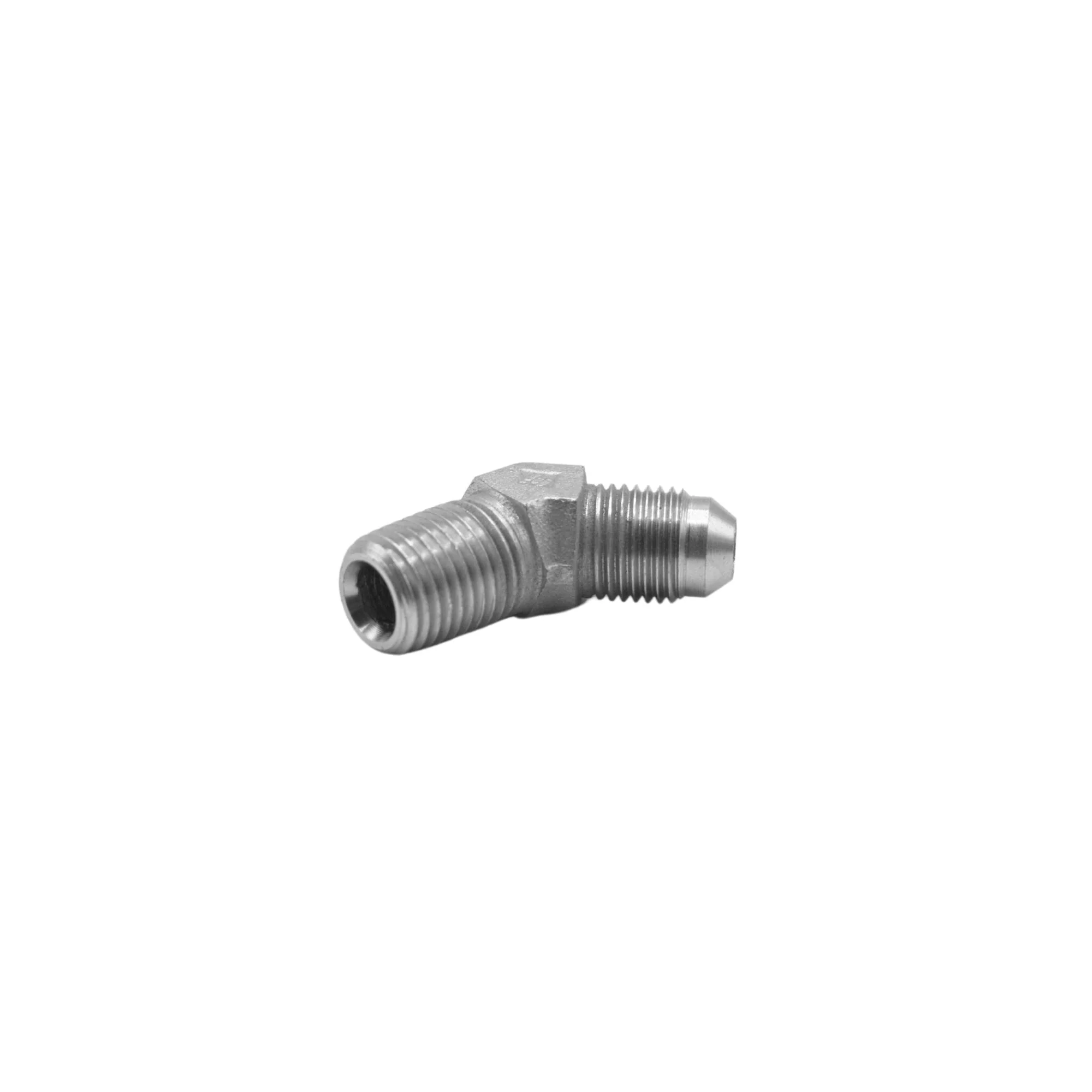

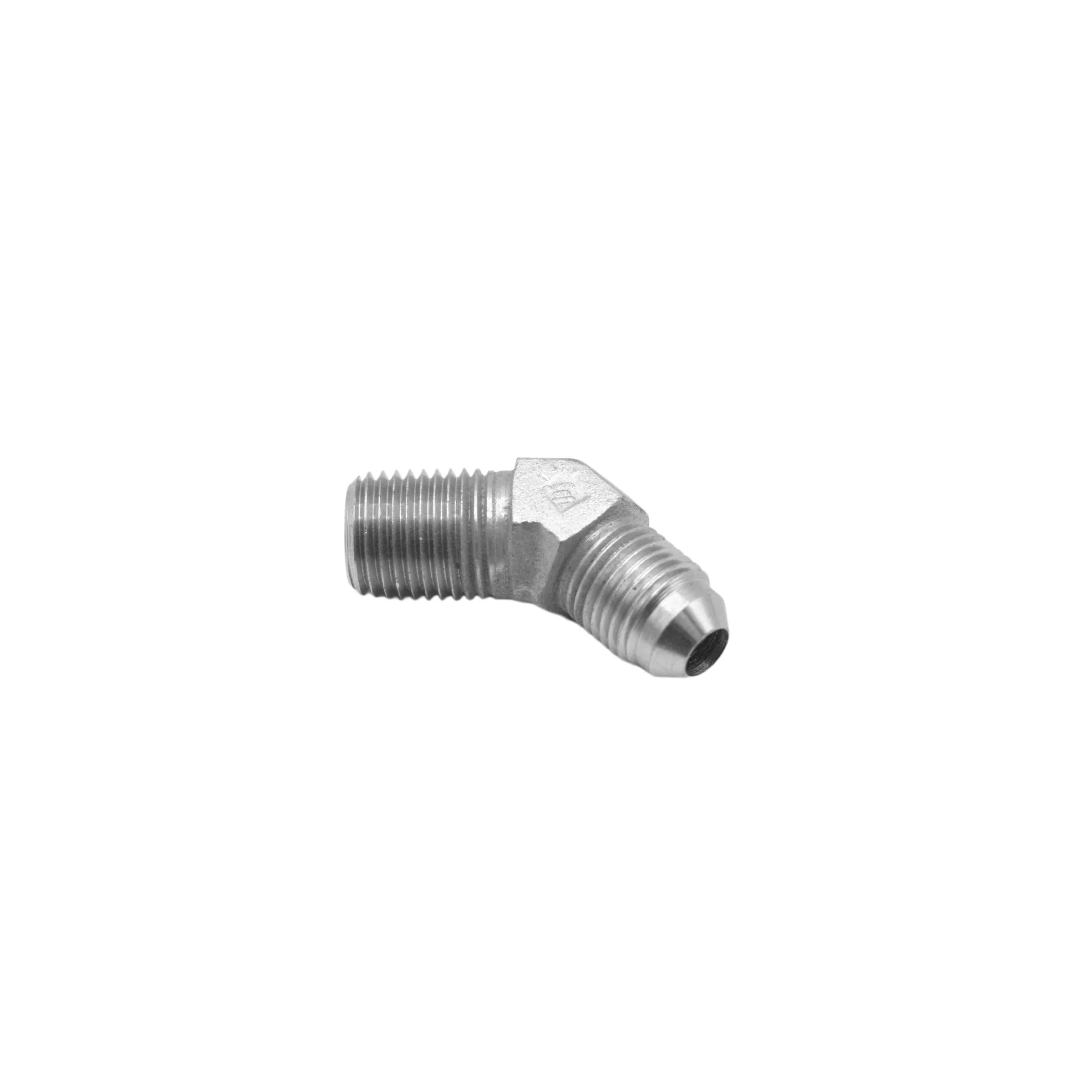

Hydraulics | 05MJ-04MP 45deg Elb Forg | 2503-05-04-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.860 |
| CENTERLINE LENGTH M IN | 0.820 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.075 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.077 |
$2.25
Original: $6.43
-65%Hydraulics | 05MJ-04MP 45deg Elb Forg | 2503-05-04-FG—
$6.43
$2.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.860 |
| CENTERLINE LENGTH M IN | 0.820 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.075 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.077 |
