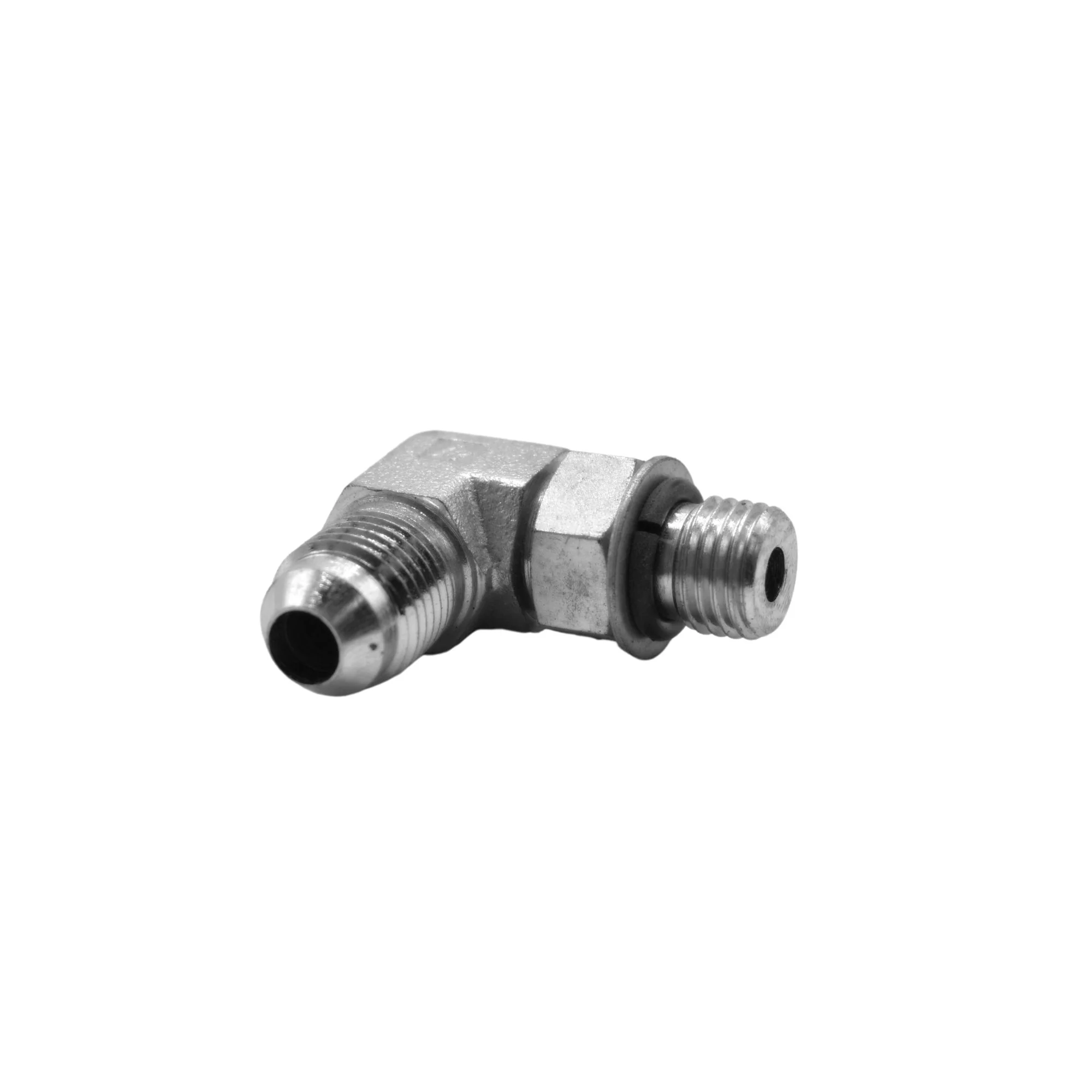

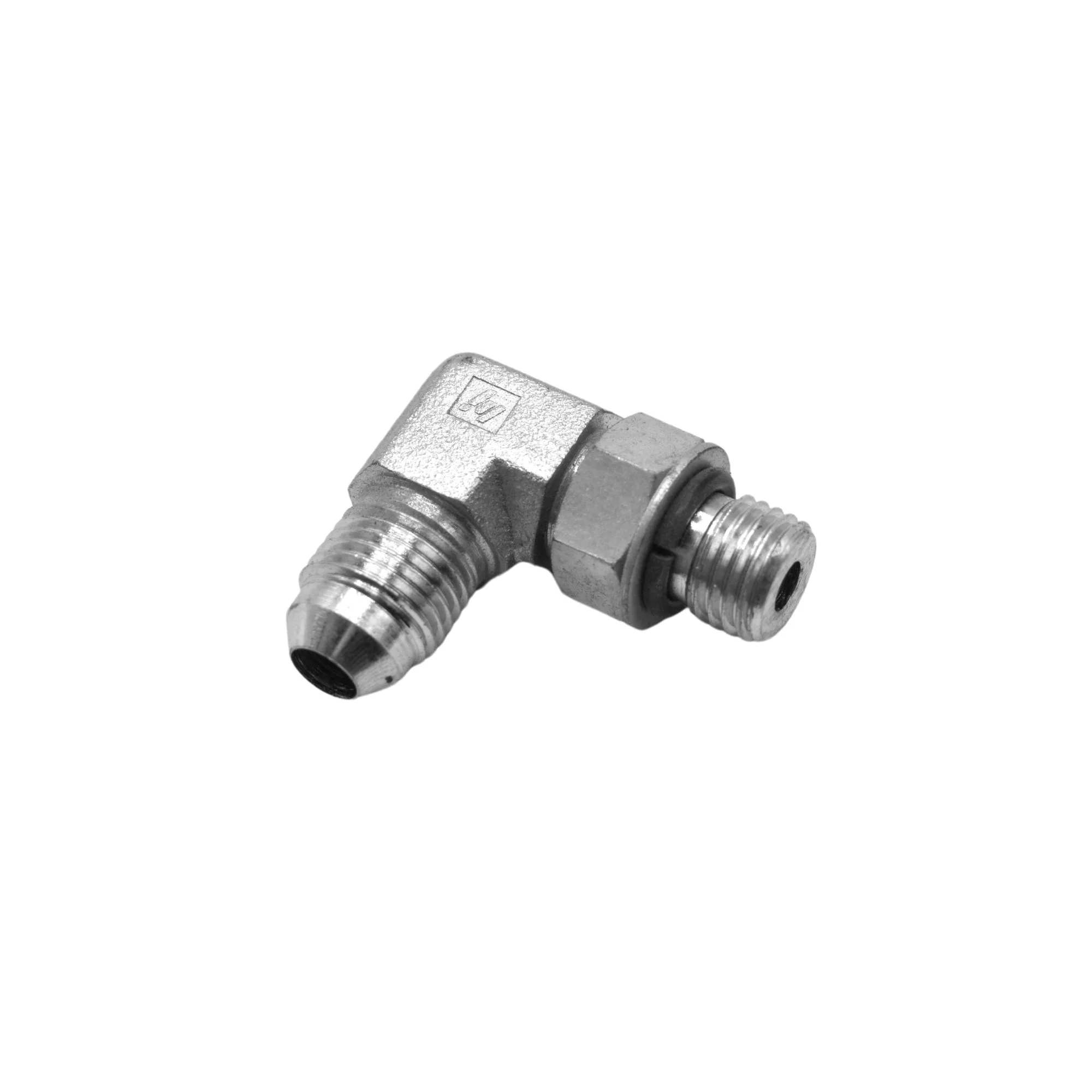

Hydraulics | 05MJ-04MAORB 90deg Elb Forg | 6801-05-04-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 1.130 |
| CENTERLINE LENGTH M IN | 0.950 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.089 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.978 |
$1.12
Original: $3.20
-65%Hydraulics | 05MJ-04MAORB 90deg Elb Forg | 6801-05-04-NWO-FG—
$3.20
$1.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 1.130 |
| CENTERLINE LENGTH M IN | 0.950 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.089 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.978 |
