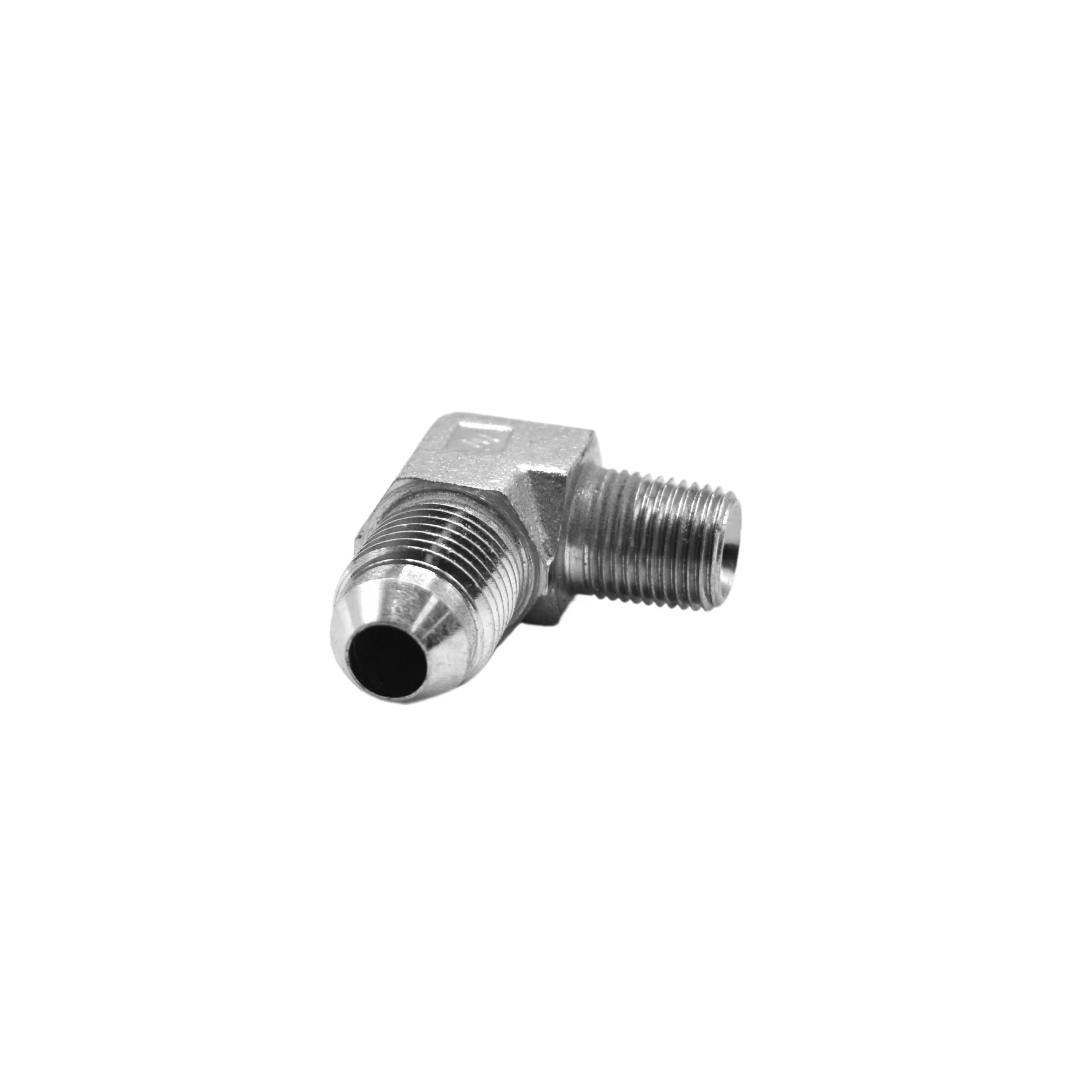

Hydraulics | 05MJ-02MP 90deg Elb Forg | 2501-05-02-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.780 |
| CENTERLINE LENGTH M IN | 0.950 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.072 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H |
0.734 |
$1.59
Original: $4.55
-65%Hydraulics | 05MJ-02MP 90deg Elb Forg | 2501-05-02-FG—
$4.55
$1.59Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.780 |
| CENTERLINE LENGTH M IN | 0.950 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.072 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H |
0.734 |
