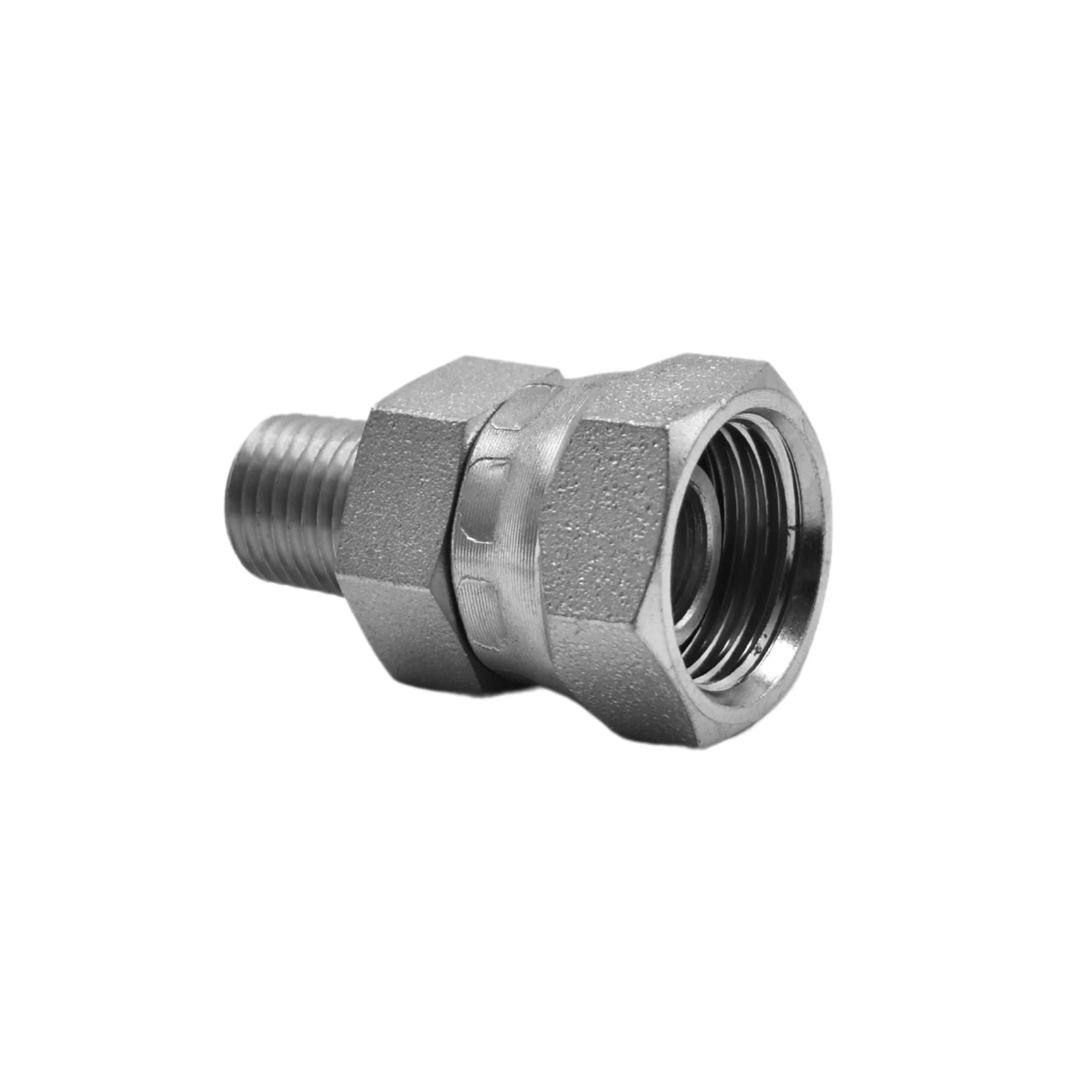

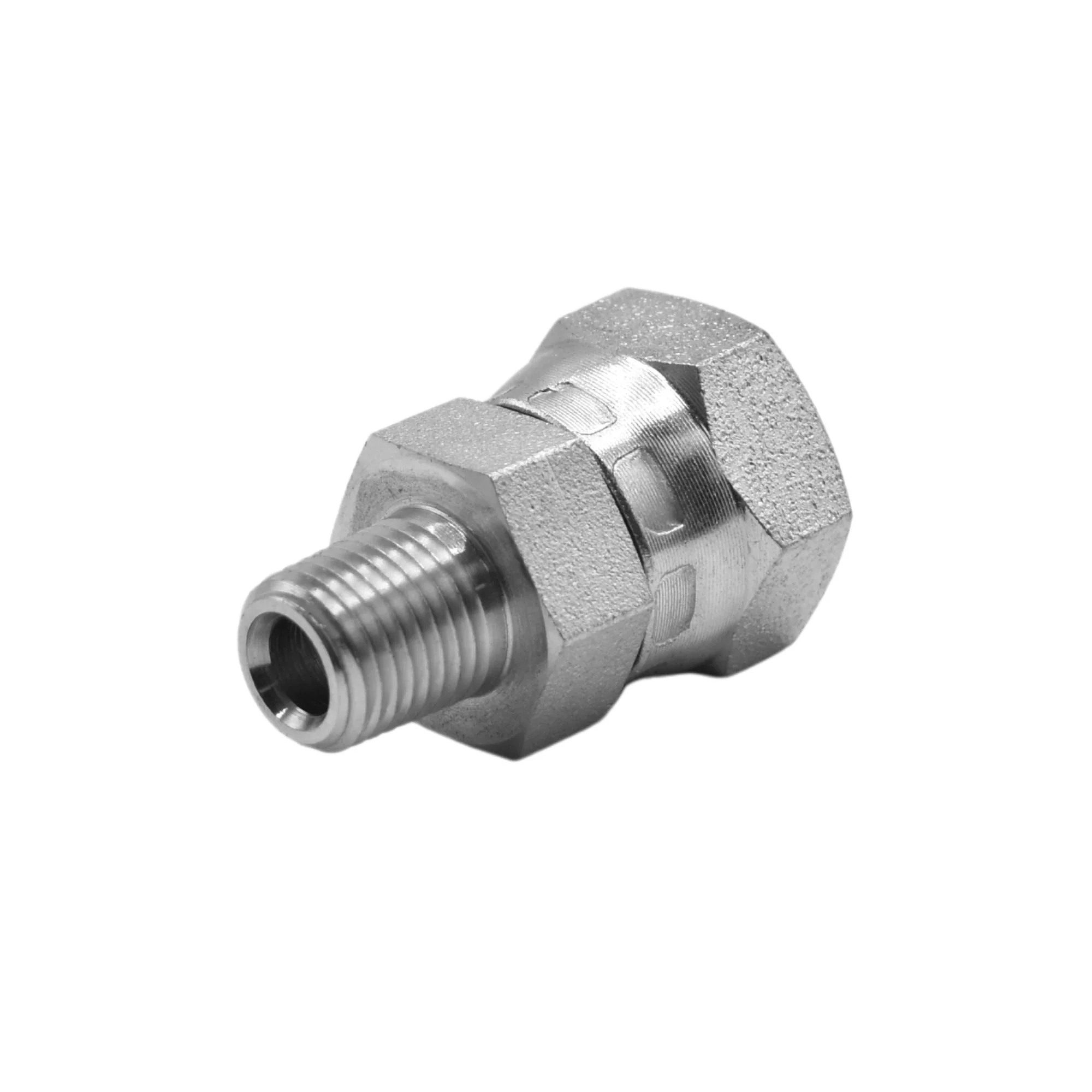

Hydraulics | 04MP-08FPS Straight Adapter | 1404-04-08
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.44 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 1.700 |
| OVERALL LENGTH L2 IN | 1.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2033 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.7 |
$5.05
Original: $14.42
-65%Hydraulics | 04MP-08FPS Straight Adapter | 1404-04-08—
$14.42
$5.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.44 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 1.700 |
| OVERALL LENGTH L2 IN | 1.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2033 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.7 |
