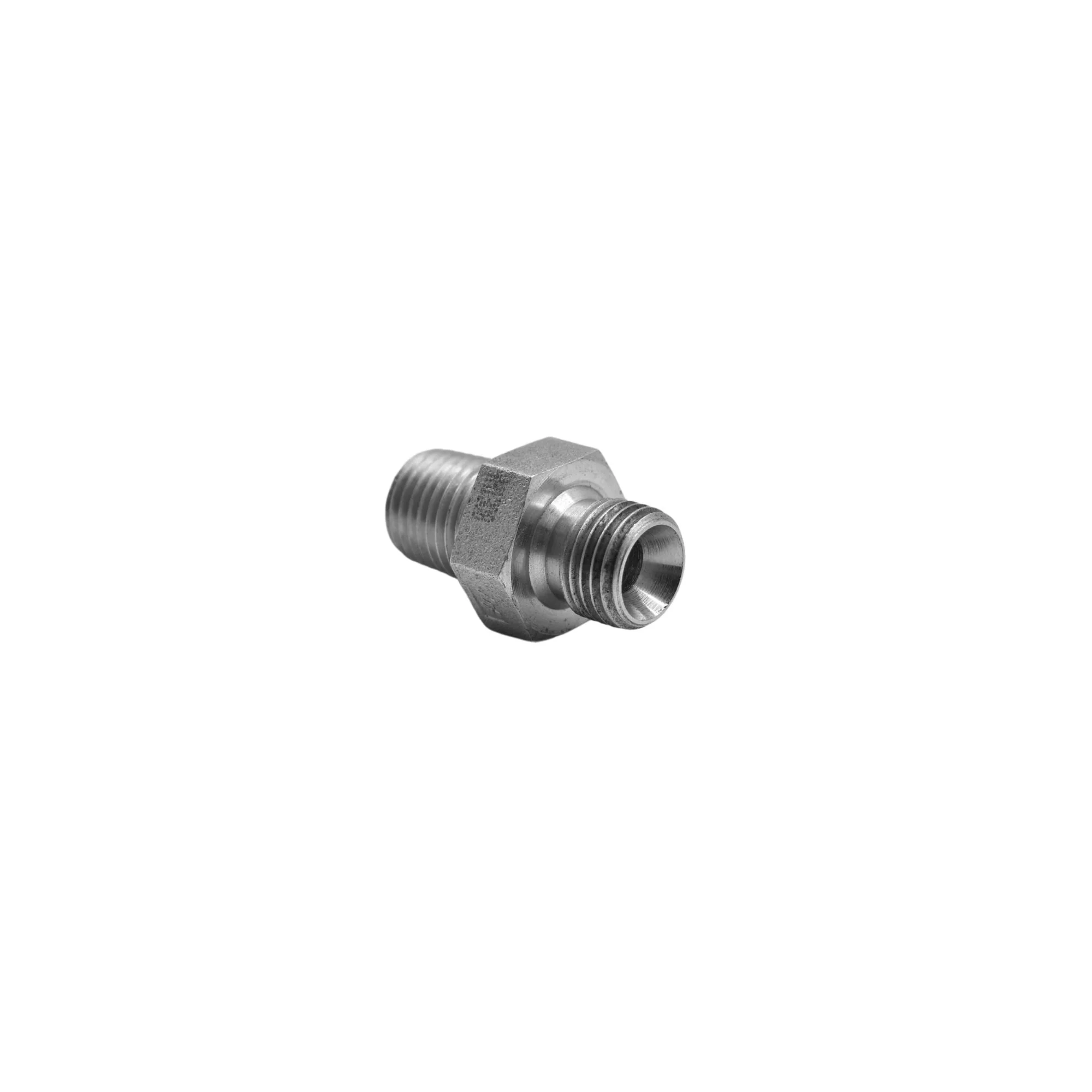

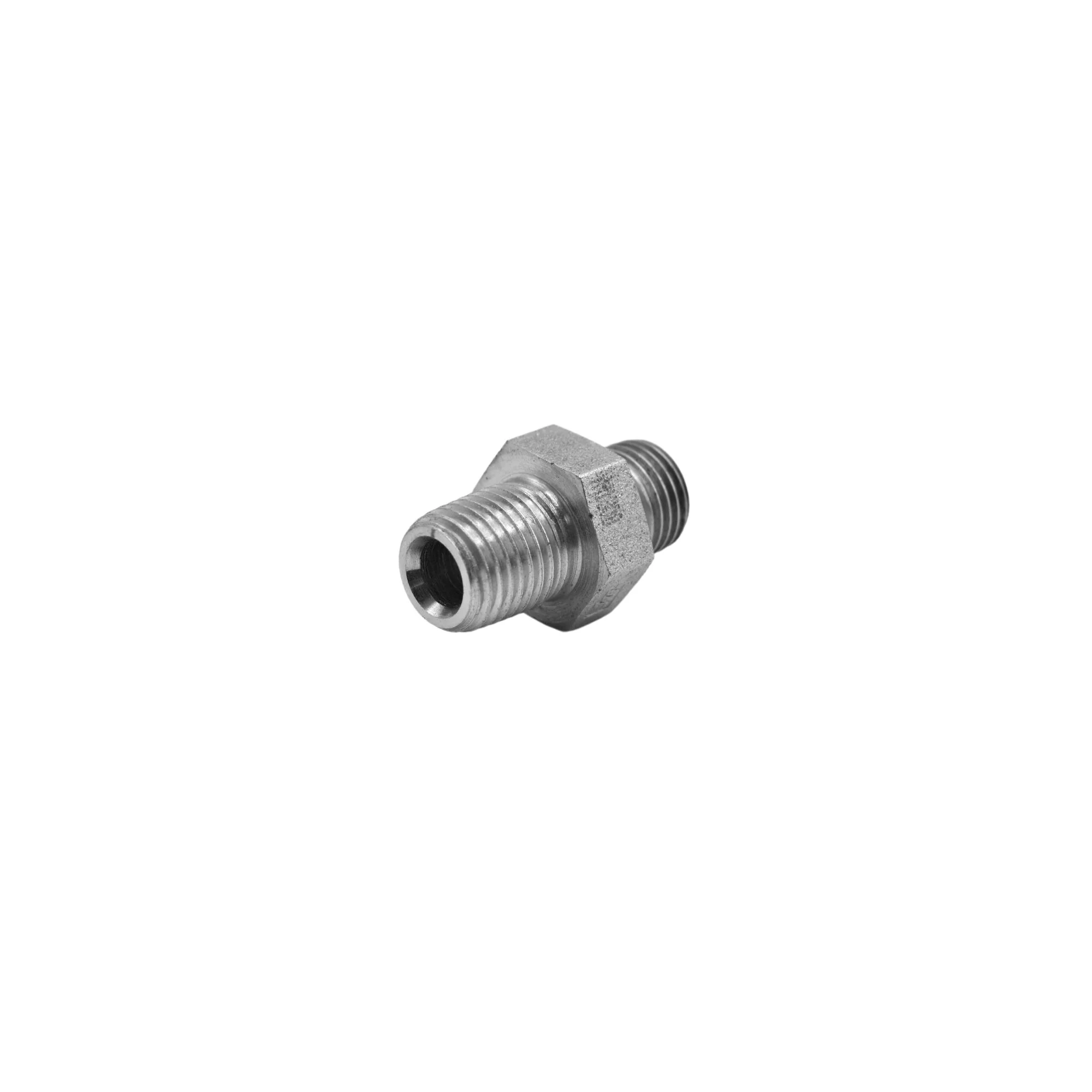

Hydraulics | 04MP-04MBSPP Nipple | 7032-04-04
| THREAD TYPE B1 | MALE NPT |
| THREAD SIZE B1 | 1/4-18 |
| THREAD DRILL B1 (MM) | 7.1 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.075 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.727 |
$2.03
Original: $5.80
-65%Hydraulics | 04MP-04MBSPP Nipple | 7032-04-04—
$5.80
$2.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | MALE NPT |
| THREAD SIZE B1 | 1/4-18 |
| THREAD DRILL B1 (MM) | 7.1 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.075 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.727 |
