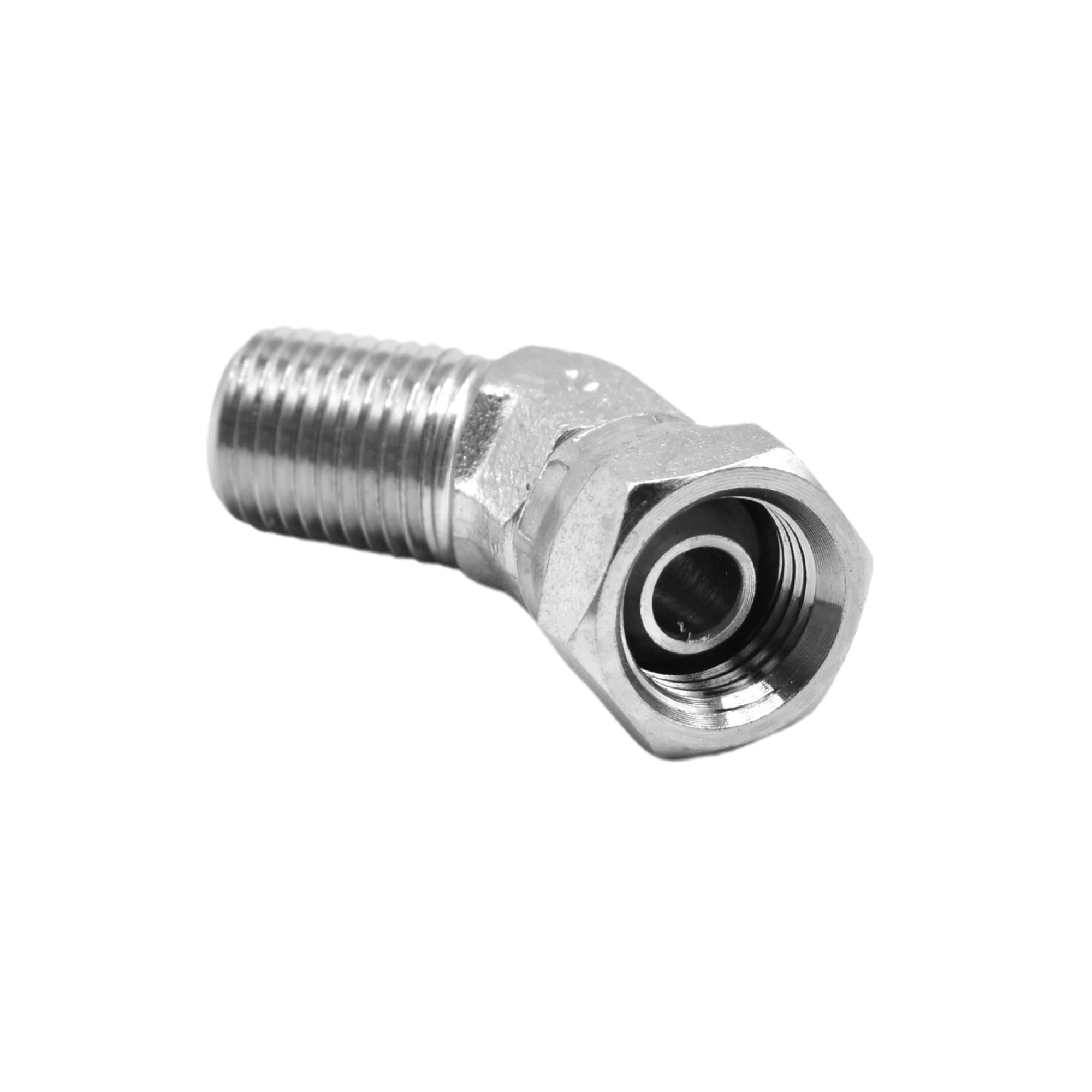

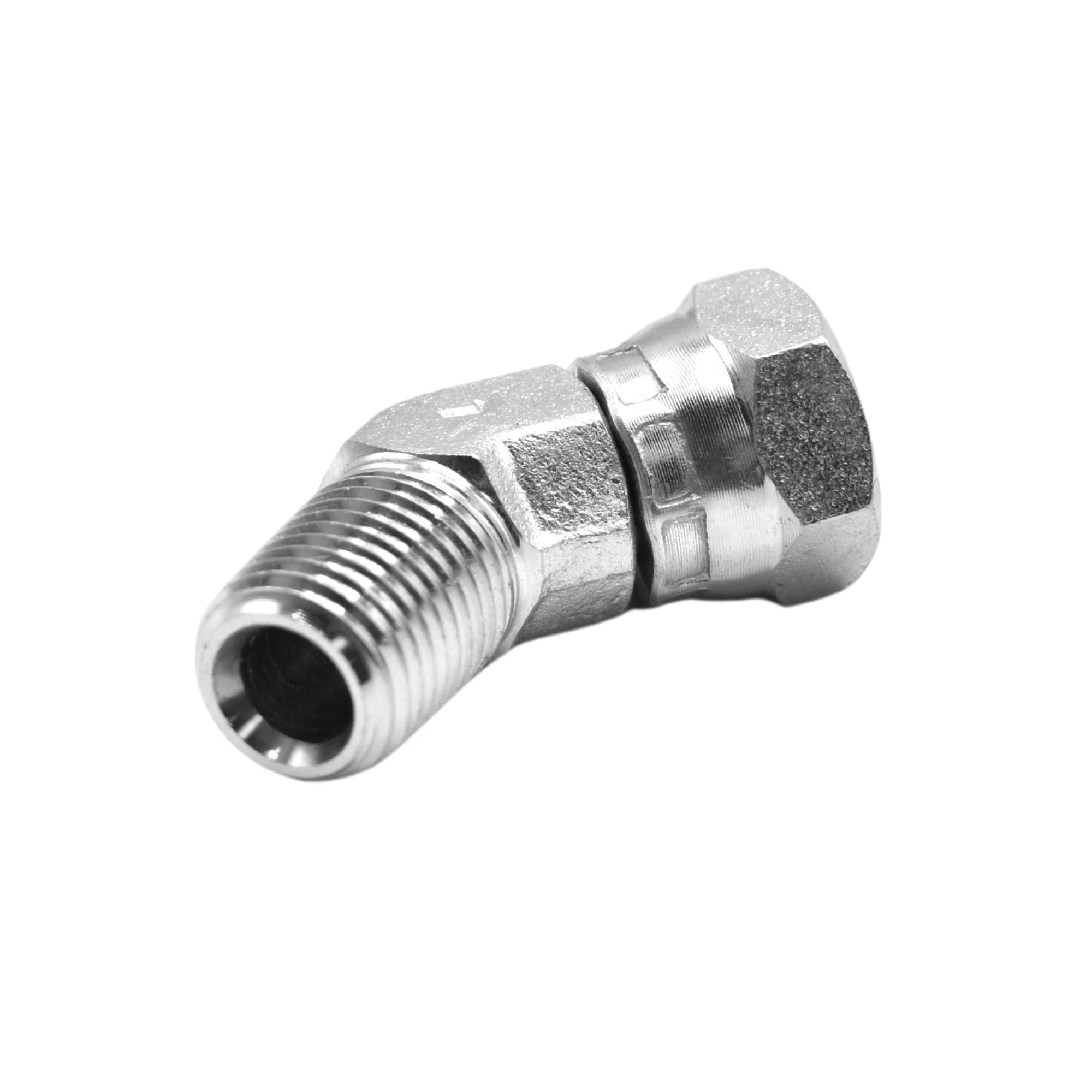

Hydraulics | 04MP-04FPS 45deg Elb Forg Adapter | 1503-04-04-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 0.860 |
| CENTERLINE LENGTH M IN | 0.920 |
| CENTERLINE LENGTH M2 IN | 0.730 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.471 |
$1.29
Original: $3.69
-65%Hydraulics | 04MP-04FPS 45deg Elb Forg Adapter | 1503-04-04-FG—
$3.69
$1.29Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 0.860 |
| CENTERLINE LENGTH M IN | 0.920 |
| CENTERLINE LENGTH M2 IN | 0.730 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.471 |
