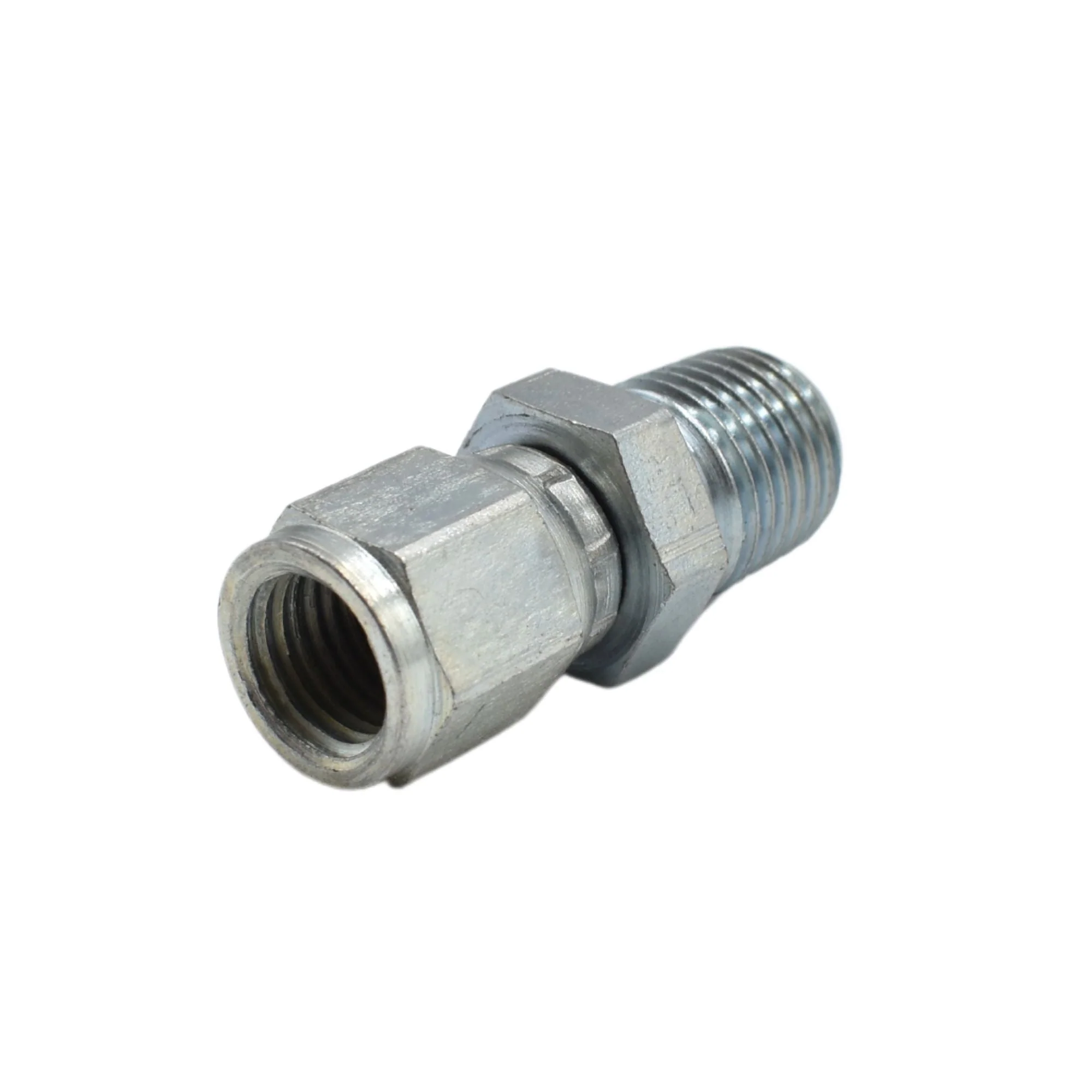

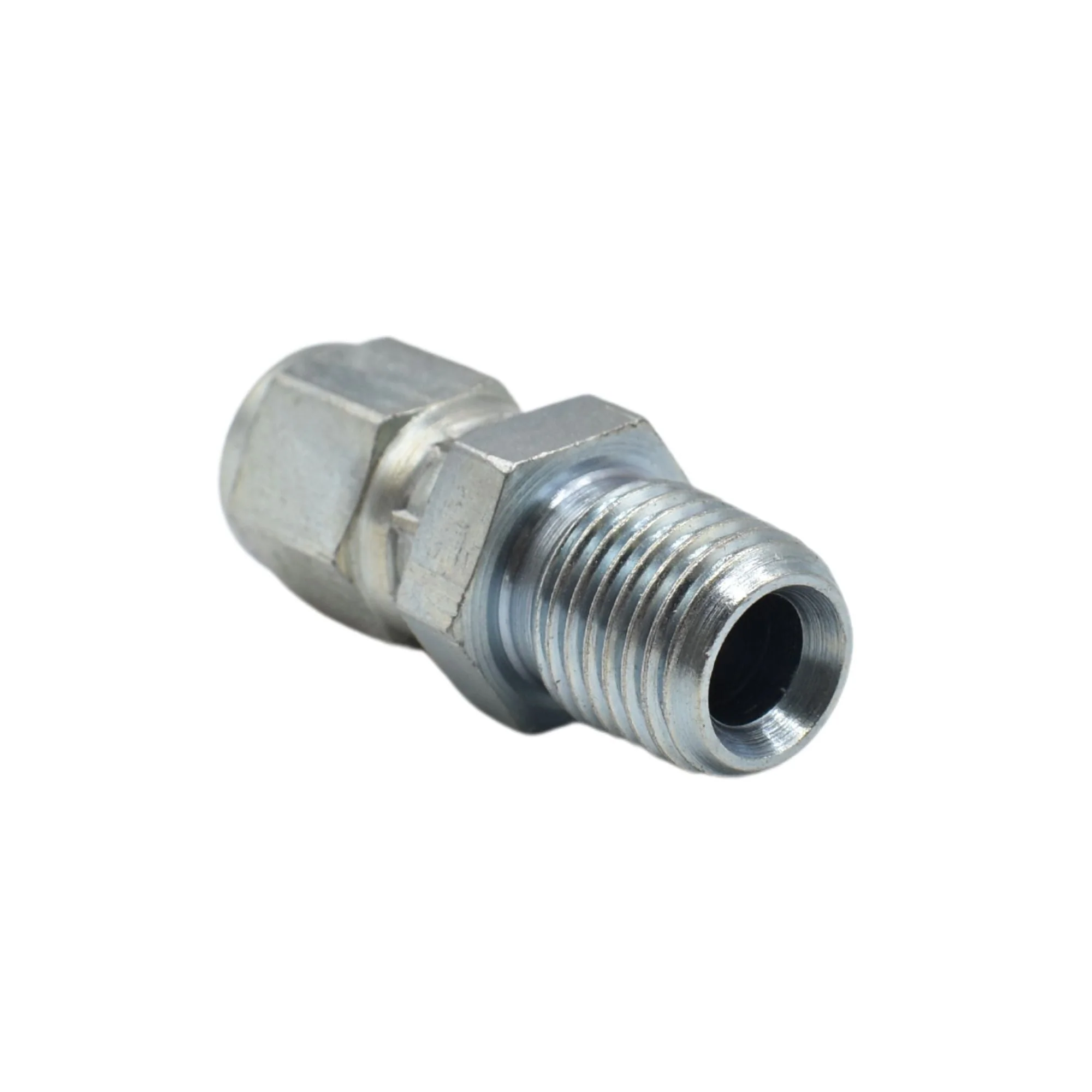

Hydraulics | 04MP-04FJS Straight Adapter | 6505-04-04
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 1.540 |
| OVERALL LENGTH L2 IN | 1.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$1.54
Original: $4.39
-65%Hydraulics | 04MP-04FJS Straight Adapter | 6505-04-04—
$4.39
$1.54Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 1.540 |
| OVERALL LENGTH L2 IN | 1.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
