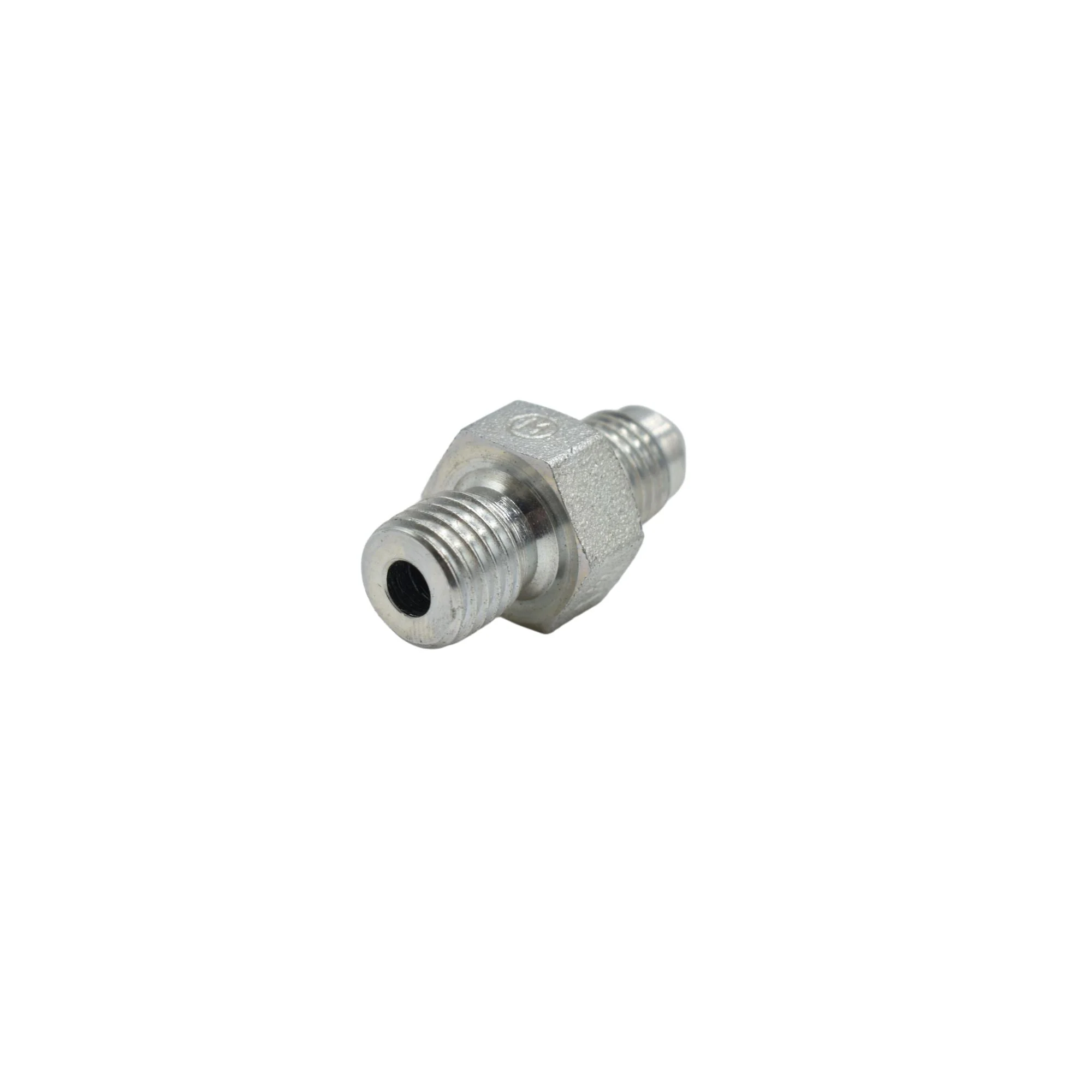

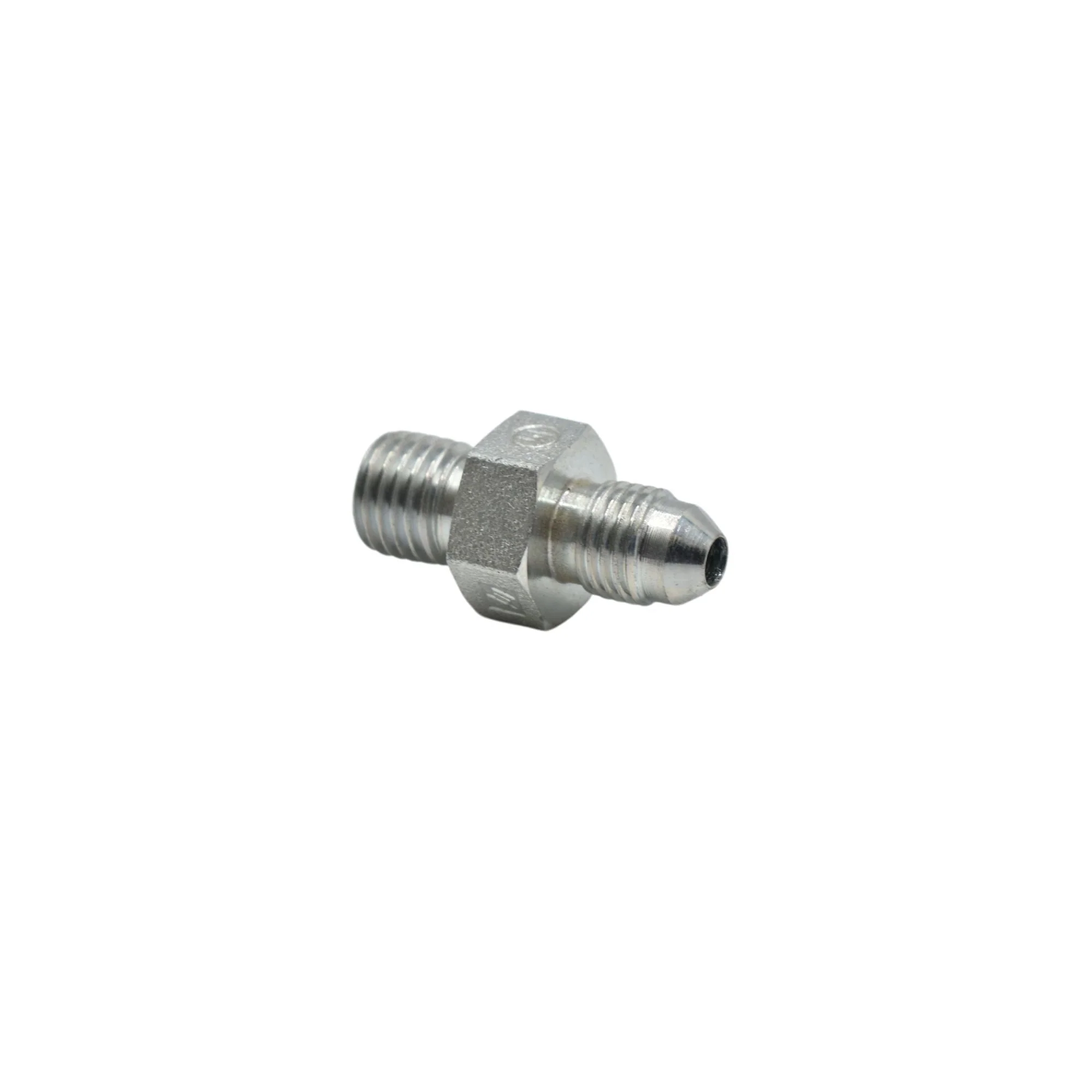

Hydraulics | 04MJ-12mm Port Metric | 7005-04-12
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 5.0 |
| THREAD SPECIFICATION B2 | ISO 9974 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.063 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.600 |
$2.61
Original: $7.45
-65%Hydraulics | 04MJ-12mm Port Metric | 7005-04-12—
$7.45
$2.61Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 5.0 |
| THREAD SPECIFICATION B2 | ISO 9974 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.063 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.600 |
