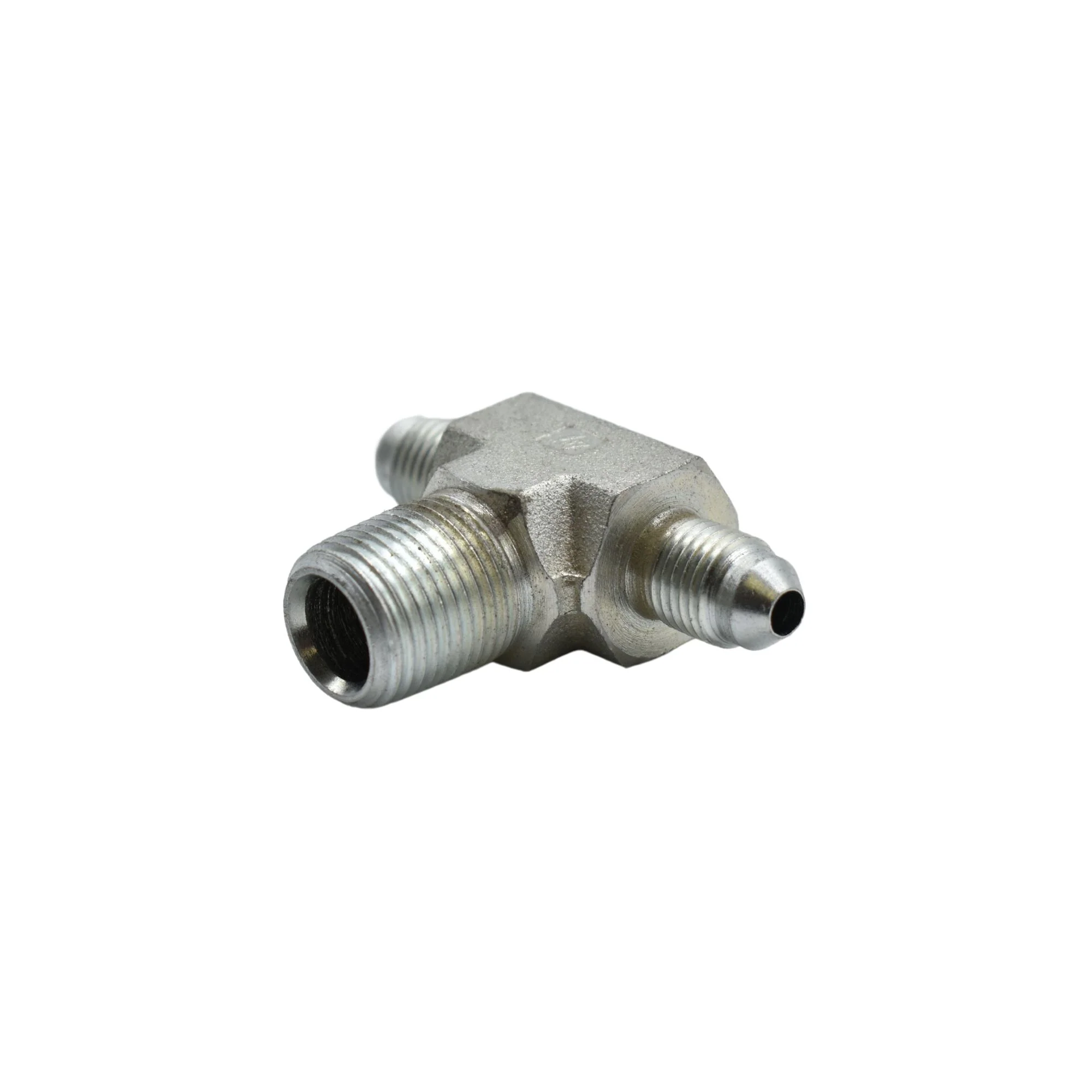

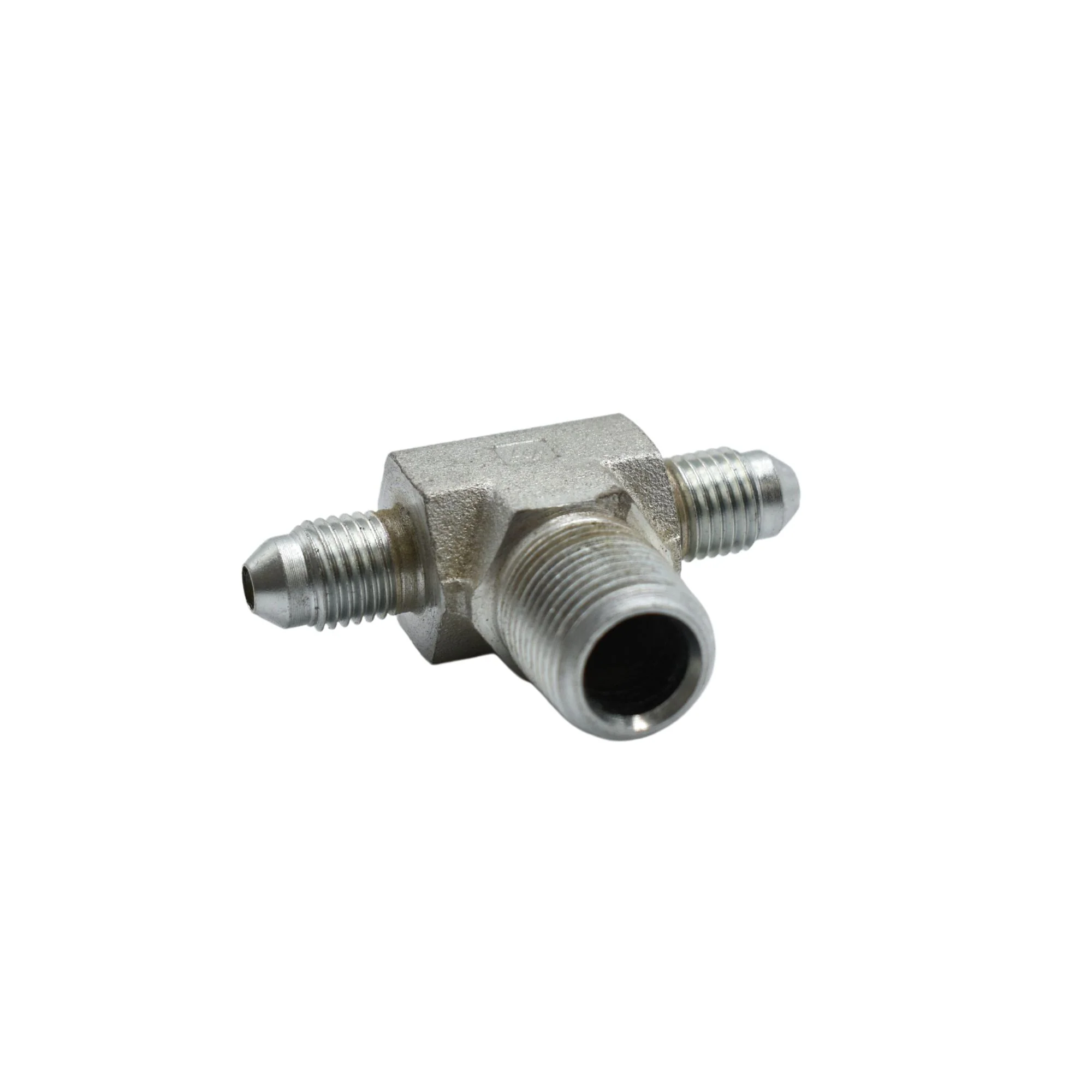

Hydraulics | 04MJ-04MJ-06MP Tee Forg | 2601-04-04-06-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.240 |
| OVERALL LENGTH L2 IN | 1.220 |
| CENTERLINE LENGTH M IN | 1.120 |
| CENTERLINE LENGTH M2 IN | 1.120 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.68 |
$5.72
Original: $16.33
-65%Hydraulics | 04MJ-04MJ-06MP Tee Forg | 2601-04-04-06-FG—
$16.33
$5.72Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.240 |
| OVERALL LENGTH L2 IN | 1.220 |
| CENTERLINE LENGTH M IN | 1.120 |
| CENTERLINE LENGTH M2 IN | 1.120 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.68 |
