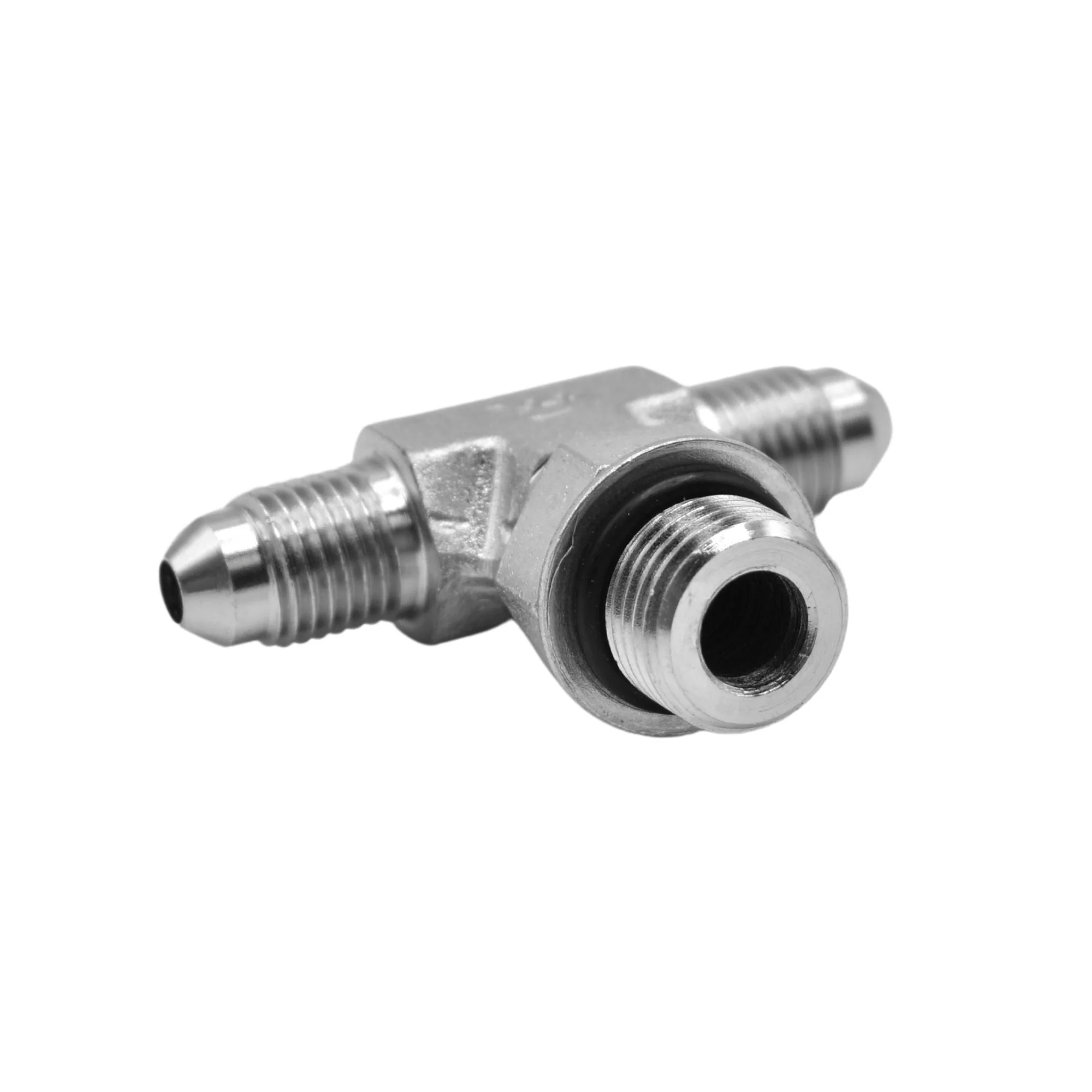

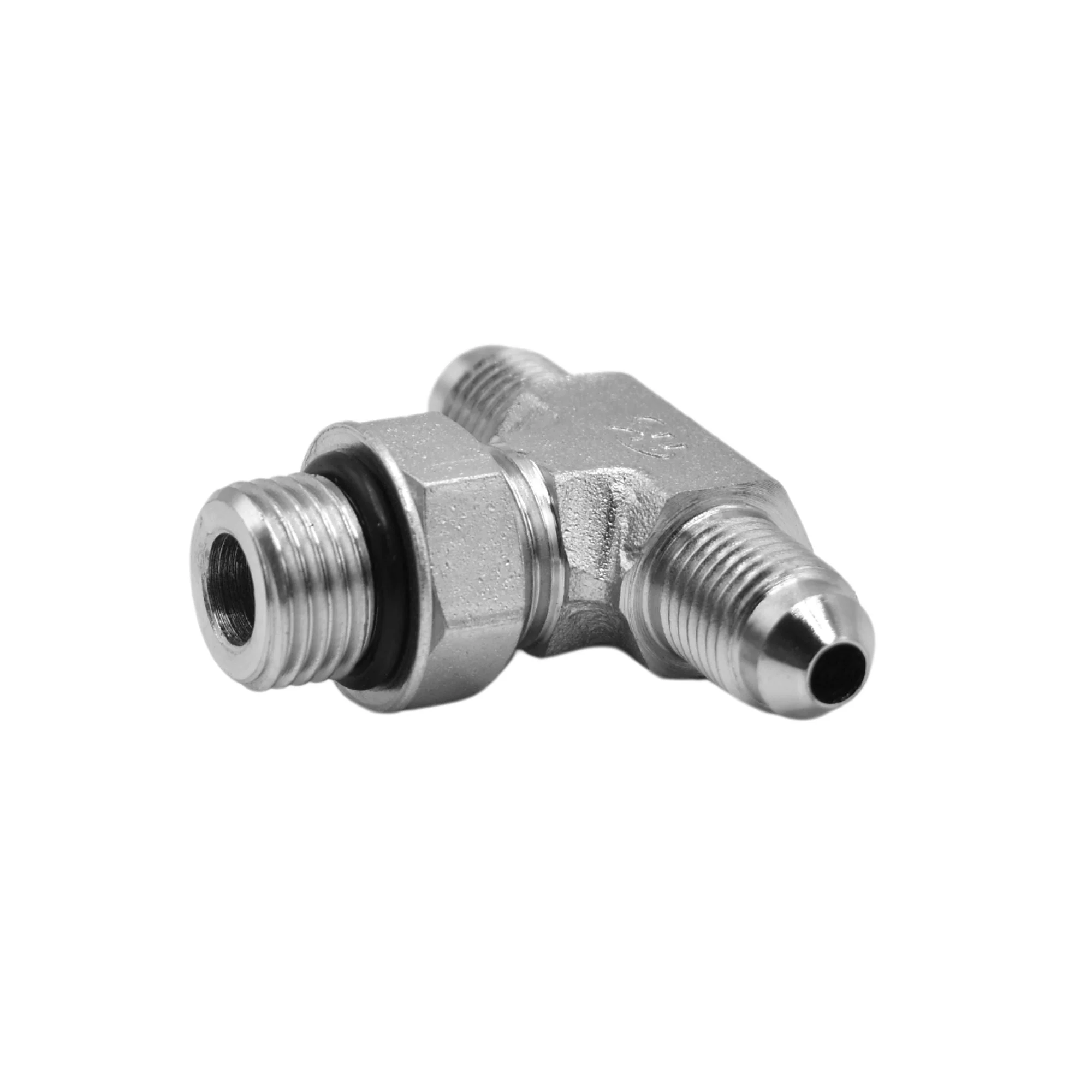

Hydraulics | 04MJ-04MJ-06MAORB Branch Tee Adapter | 6803-04-04-06-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 1.250 |
| CENTERLINE LENGTH M IN | 1.050 |
| CENTERLINE LENGTH M2 IN | 1.050 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1471 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$2.32
Original: $6.62
-65%Hydraulics | 04MJ-04MJ-06MAORB Branch Tee Adapter | 6803-04-04-06-NWO-FG—
$6.62
$2.32Product Information
