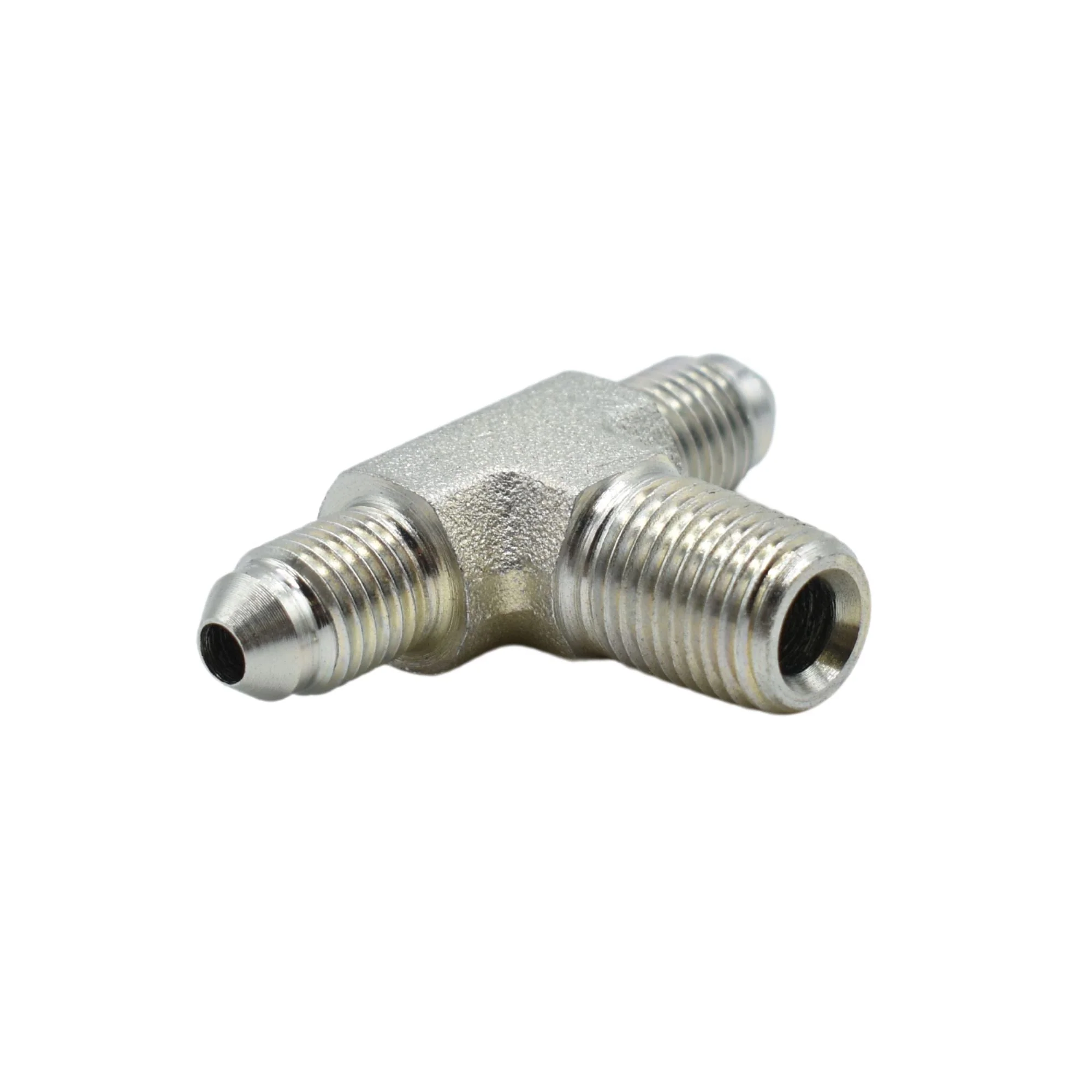

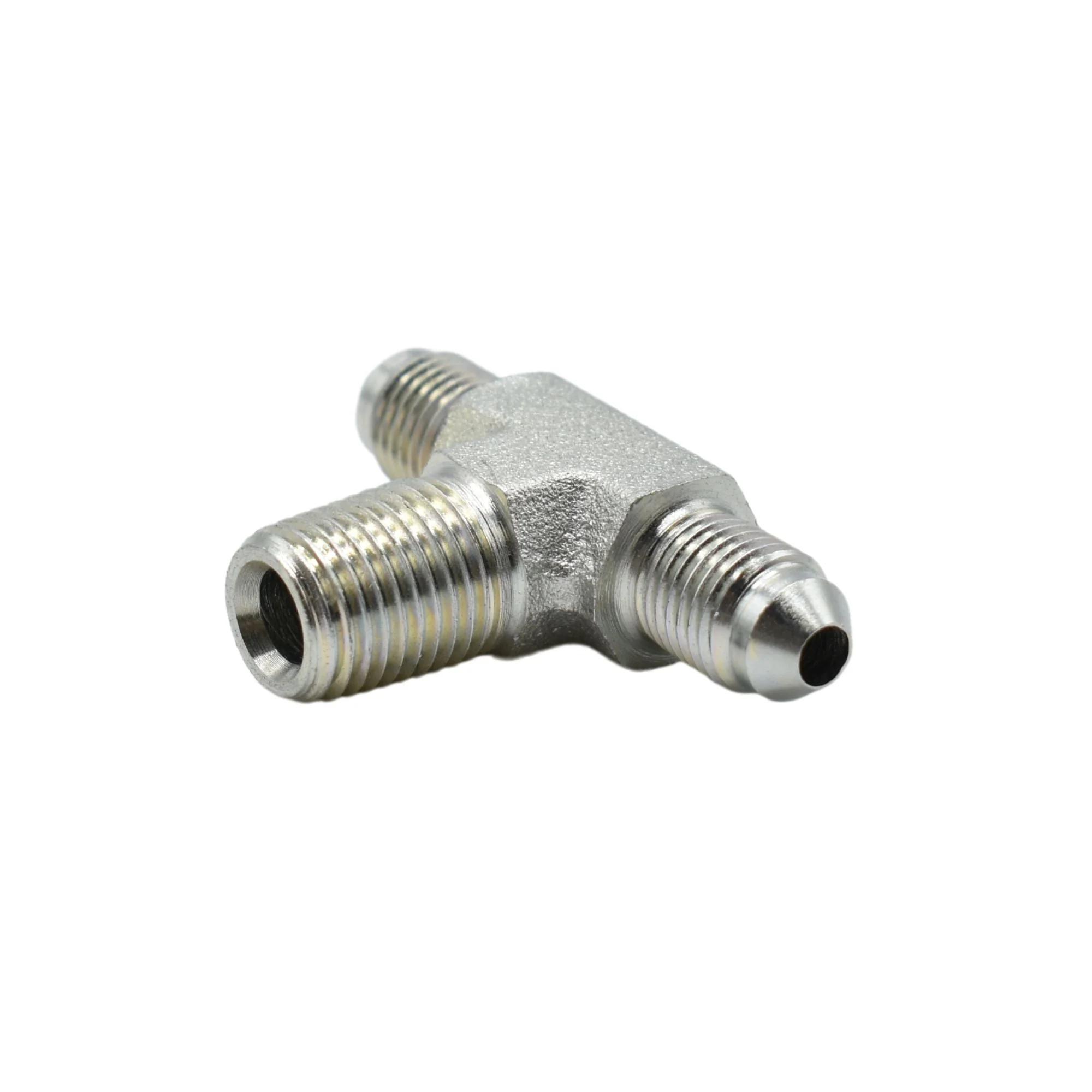

Hydraulics | 04MJ-04MJ-04MP Tee Forg Adapter | 2601-04-04-04-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.100 |
| OVERALL LENGTH L2 IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.050 |
| CENTERLINE LENGTH M2 IN | 1.050 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.618 |
$3.13
Original: $8.95
-65%Hydraulics | 04MJ-04MJ-04MP Tee Forg Adapter | 2601-04-04-04-FG—
$8.95
$3.13Product Information
