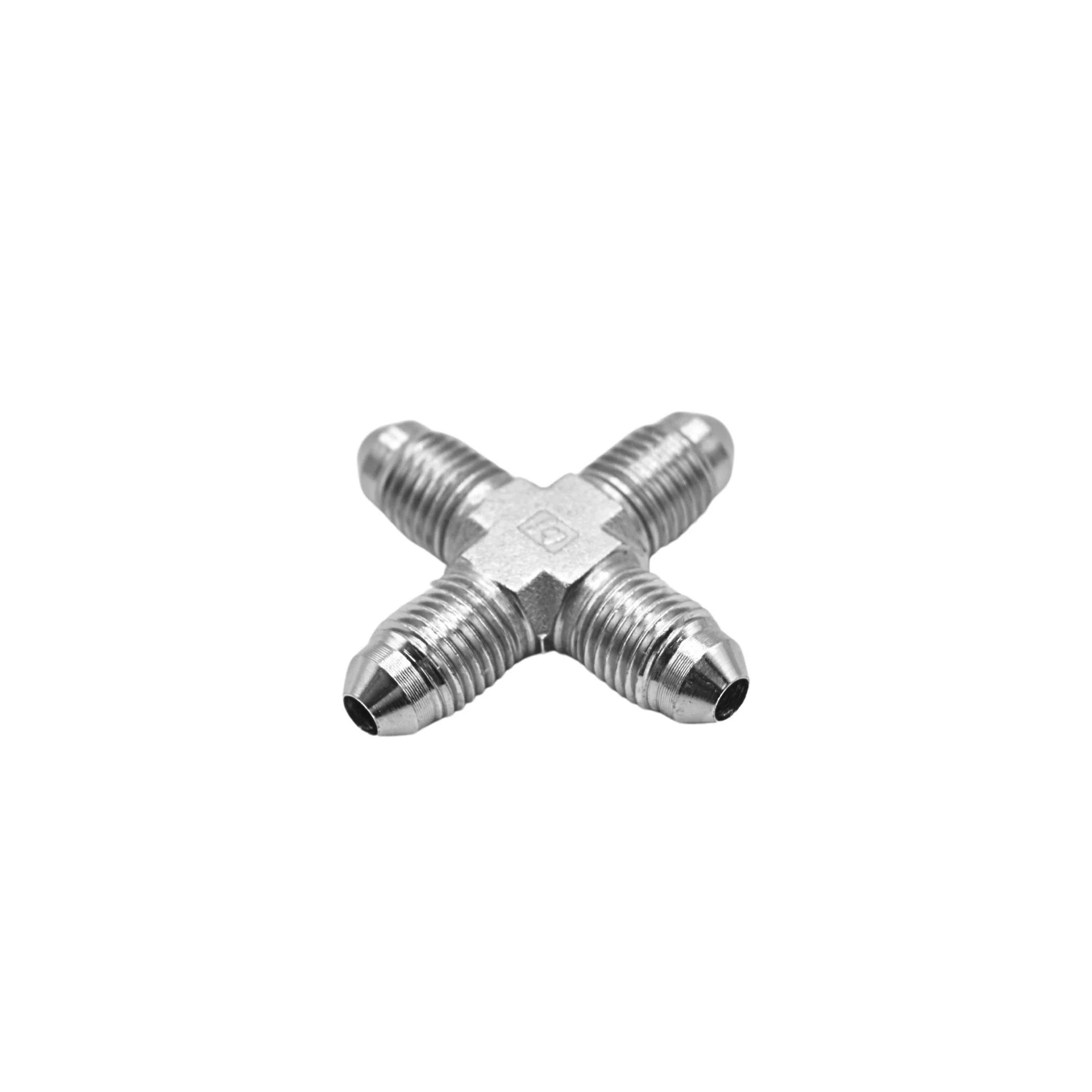

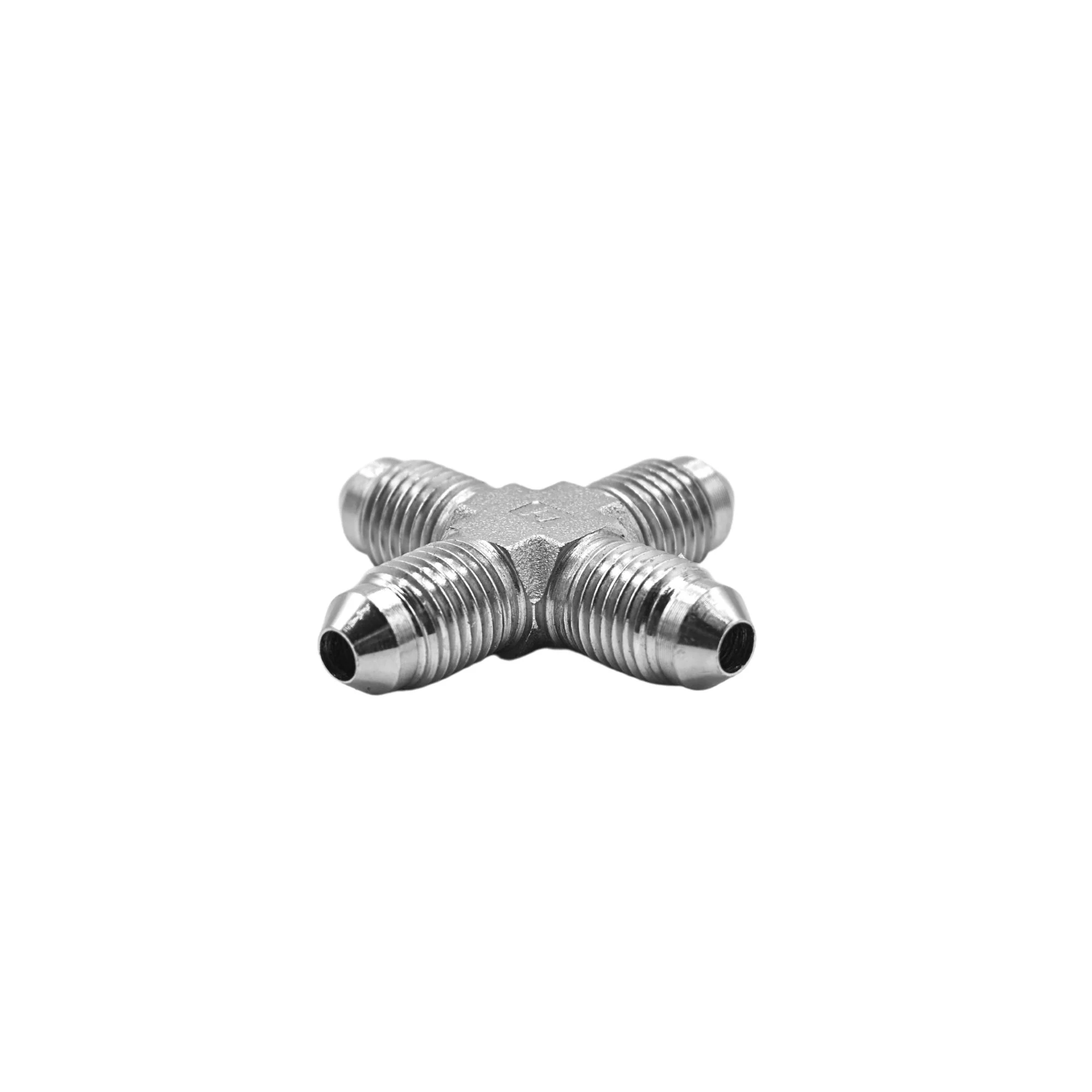

Hydraulics | 04MJ-04MJ-04MJ-04MJ Cross Forg | 2650-04-04-04-04-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 4 SIZE | 7/16-20 |
| THREAD 4 DRILL IN | 0.172 |
| THREAD 4 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 1.780 |
| OVERALL LENGTH L2 IN | 1.780 |
| CENTERLINE LENGTH M IN | 0.890 |
| CENTERLINE LENGTH M2 IN | 0.890 |
| CENTERLINE LENGTH M3 IN | 0.890 |
| CENTERLINE LENGTH M4 IN | 0.890 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$1.69
Original: $4.82
-65%Hydraulics | 04MJ-04MJ-04MJ-04MJ Cross Forg | 2650-04-04-04-04-FG—
$4.82
$1.69Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 4 SIZE | 7/16-20 |
| THREAD 4 DRILL IN | 0.172 |
| THREAD 4 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 1.780 |
| OVERALL LENGTH L2 IN | 1.780 |
| CENTERLINE LENGTH M IN | 0.890 |
| CENTERLINE LENGTH M2 IN | 0.890 |
| CENTERLINE LENGTH M3 IN | 0.890 |
| CENTERLINE LENGTH M4 IN | 0.890 |
| SHAPE | CROSS |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
