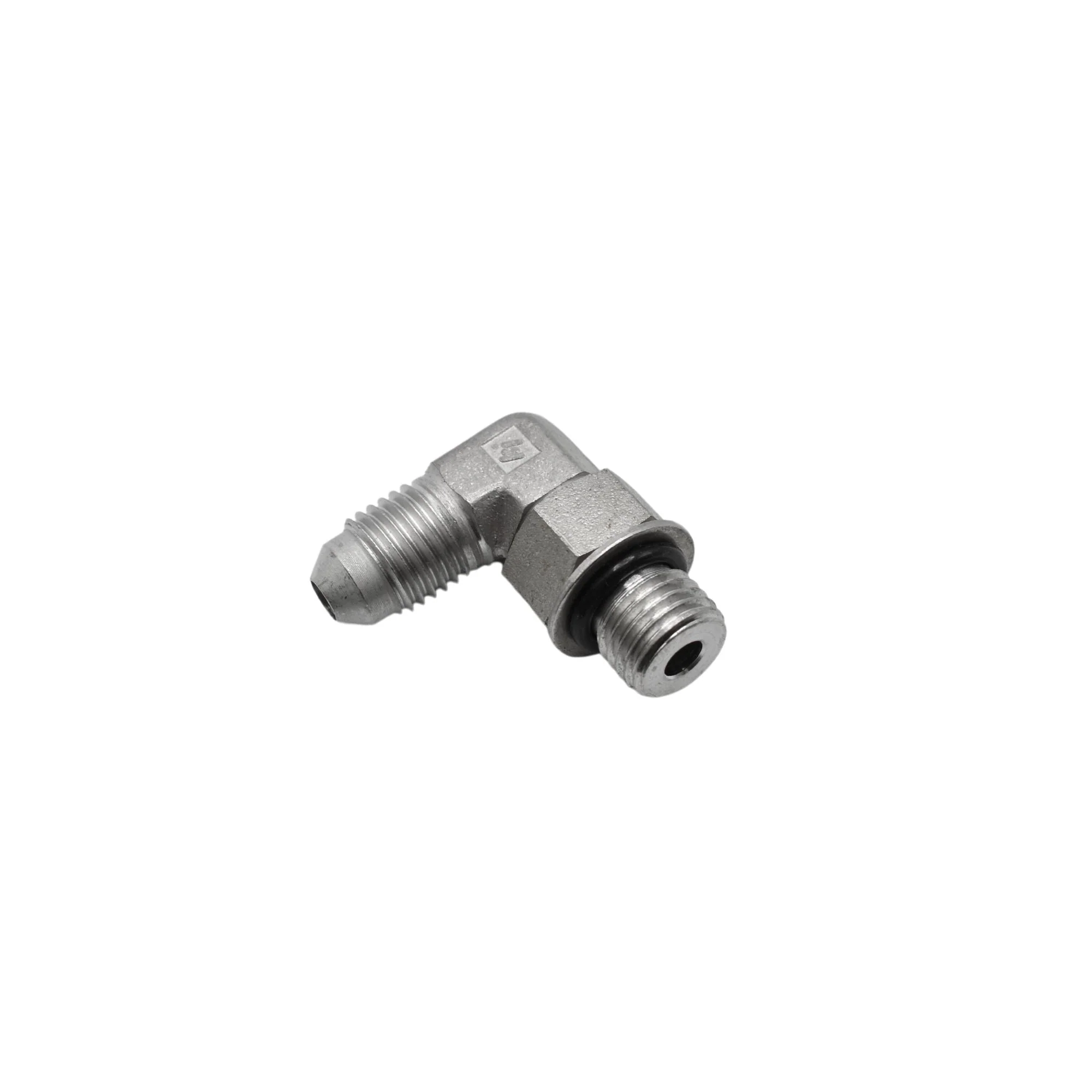

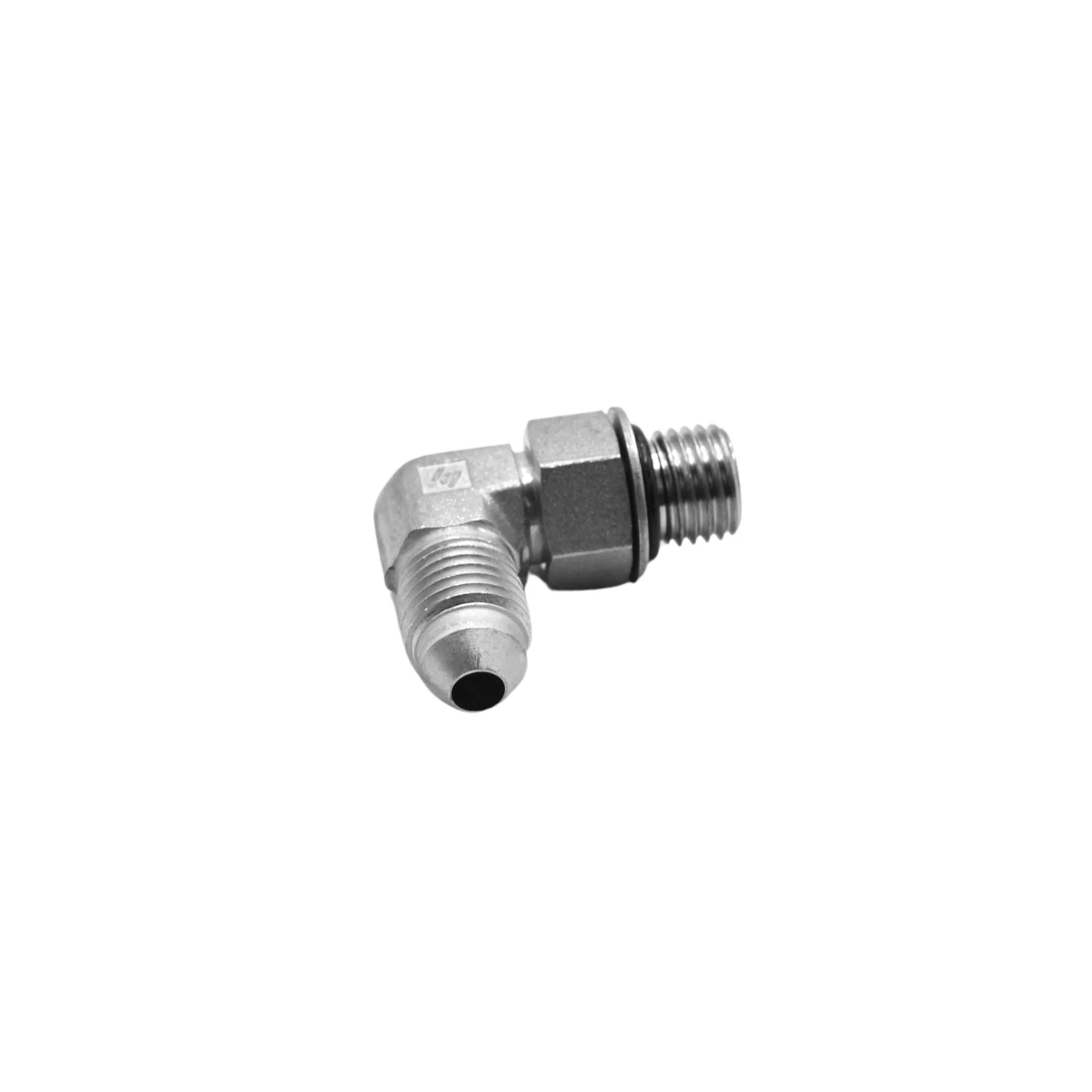

Hydraulics | 04MJ-04MAORB 90deg Elb Stnls | 6801-04-04-NWO-SS
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 1.030 |
| CENTERLINE LENGTH M IN | 0.890 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.824 |
$30.89
Hydraulics | 04MJ-04MAORB 90deg Elb Stnls | 6801-04-04-NWO-SS—
$30.89
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 1.030 |
| CENTERLINE LENGTH M IN | 0.890 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.824 |
