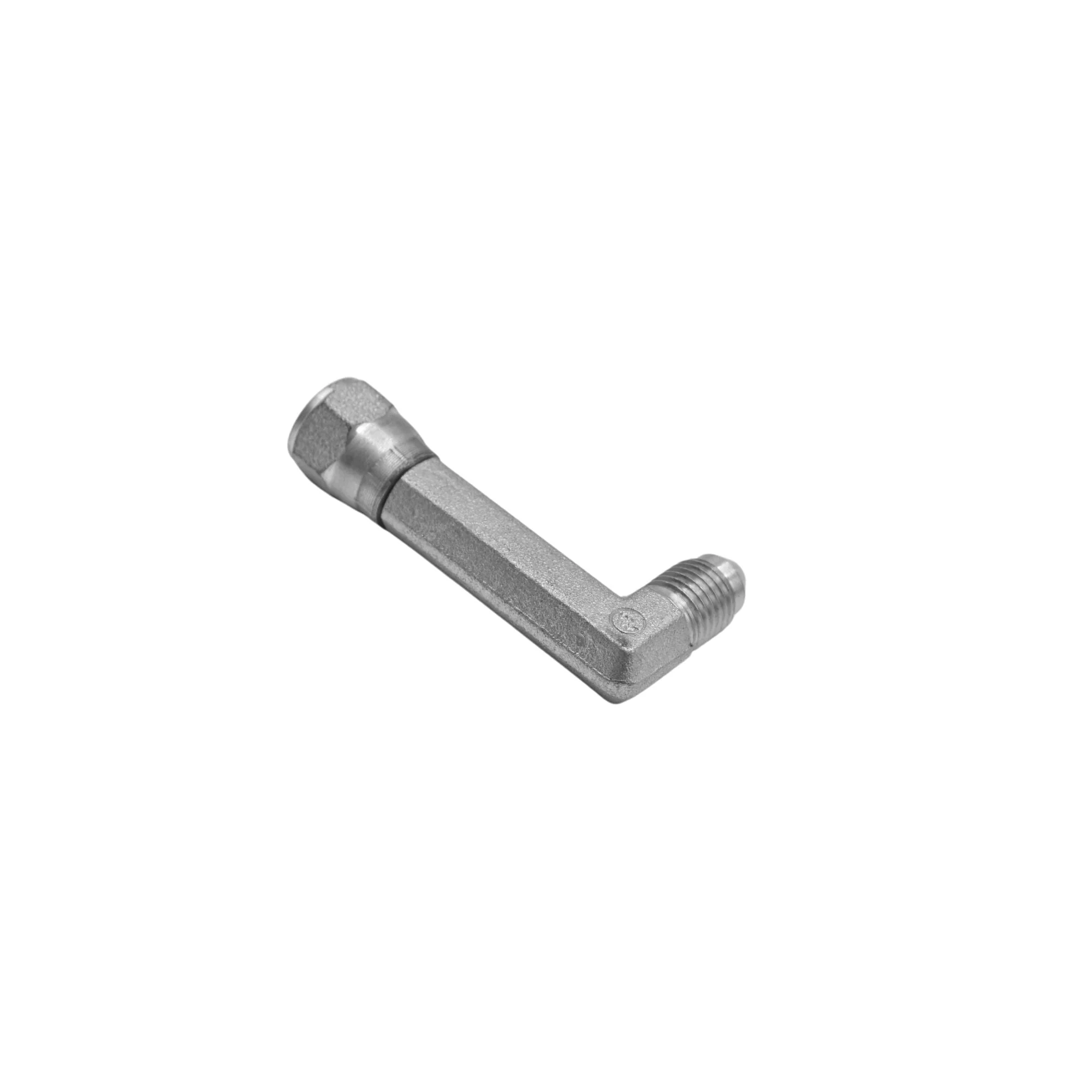

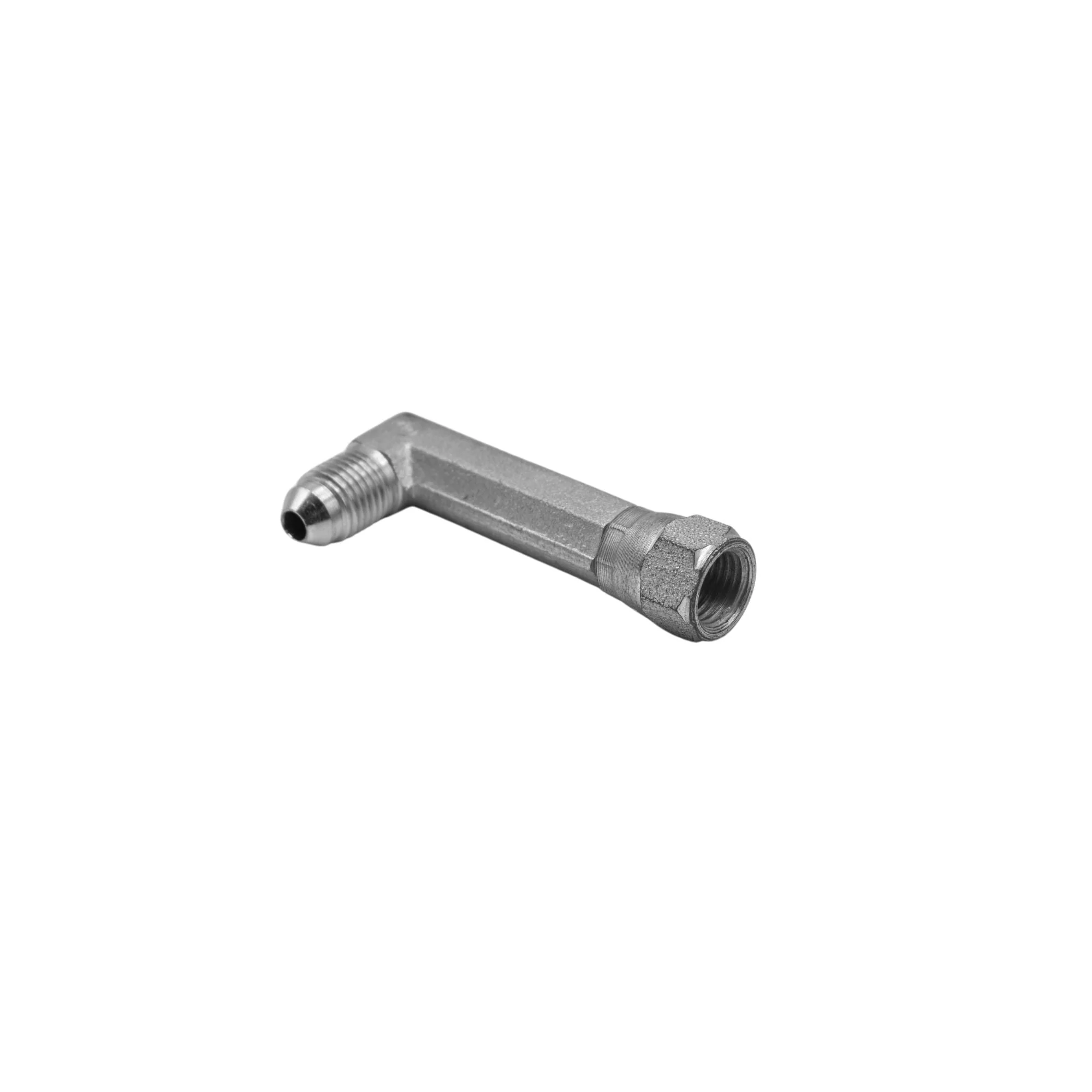

Hydraulics | 04MJ-04FJS 90deg Elb Lg Forg | 6500-L-04-04-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.438 |
| OVERALL LENGTH L IN | 2.160 |
| OVERALL LENGTH L2 IN | 1.810 |
| CENTERLINE LENGTH M IN | 0.890 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$14.40
