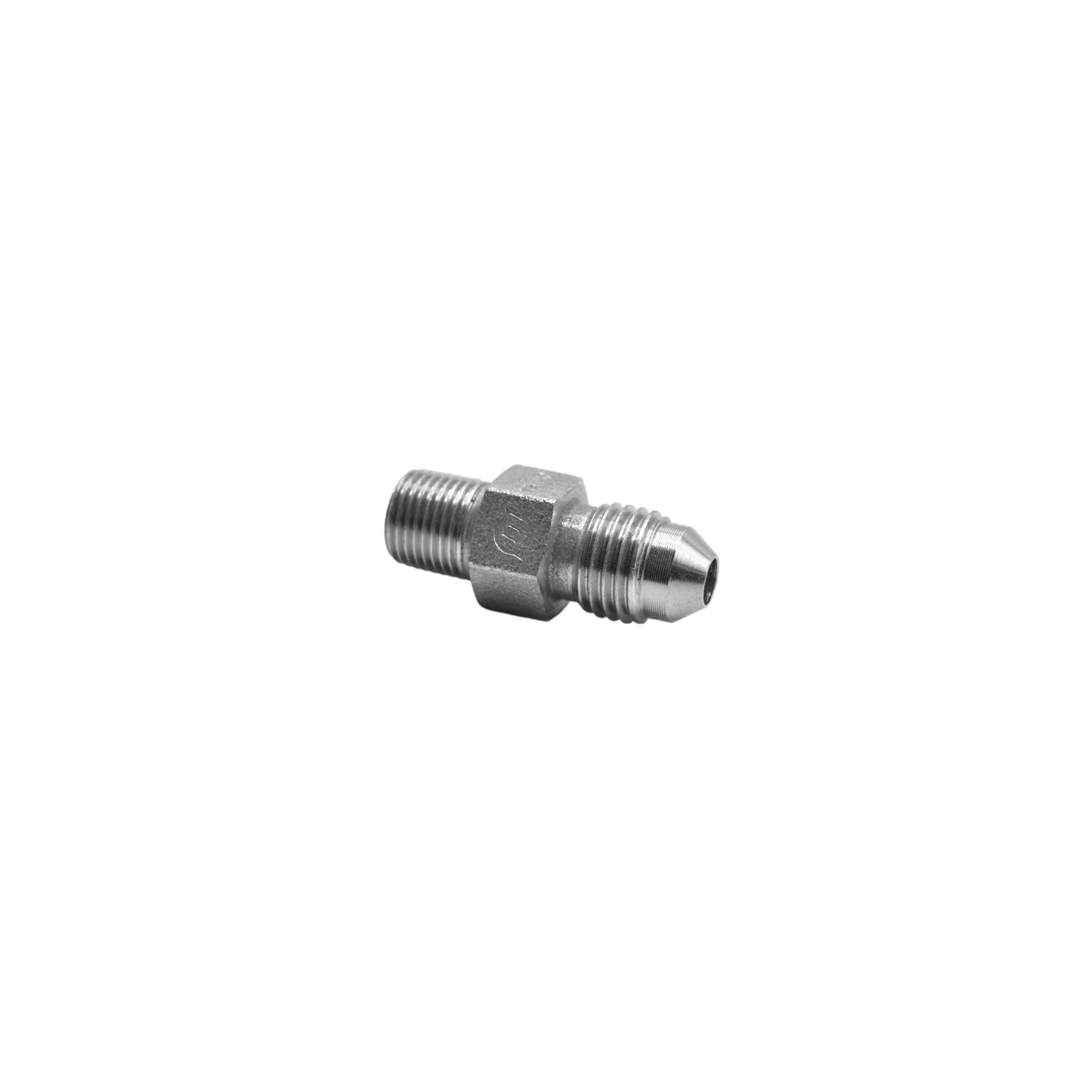

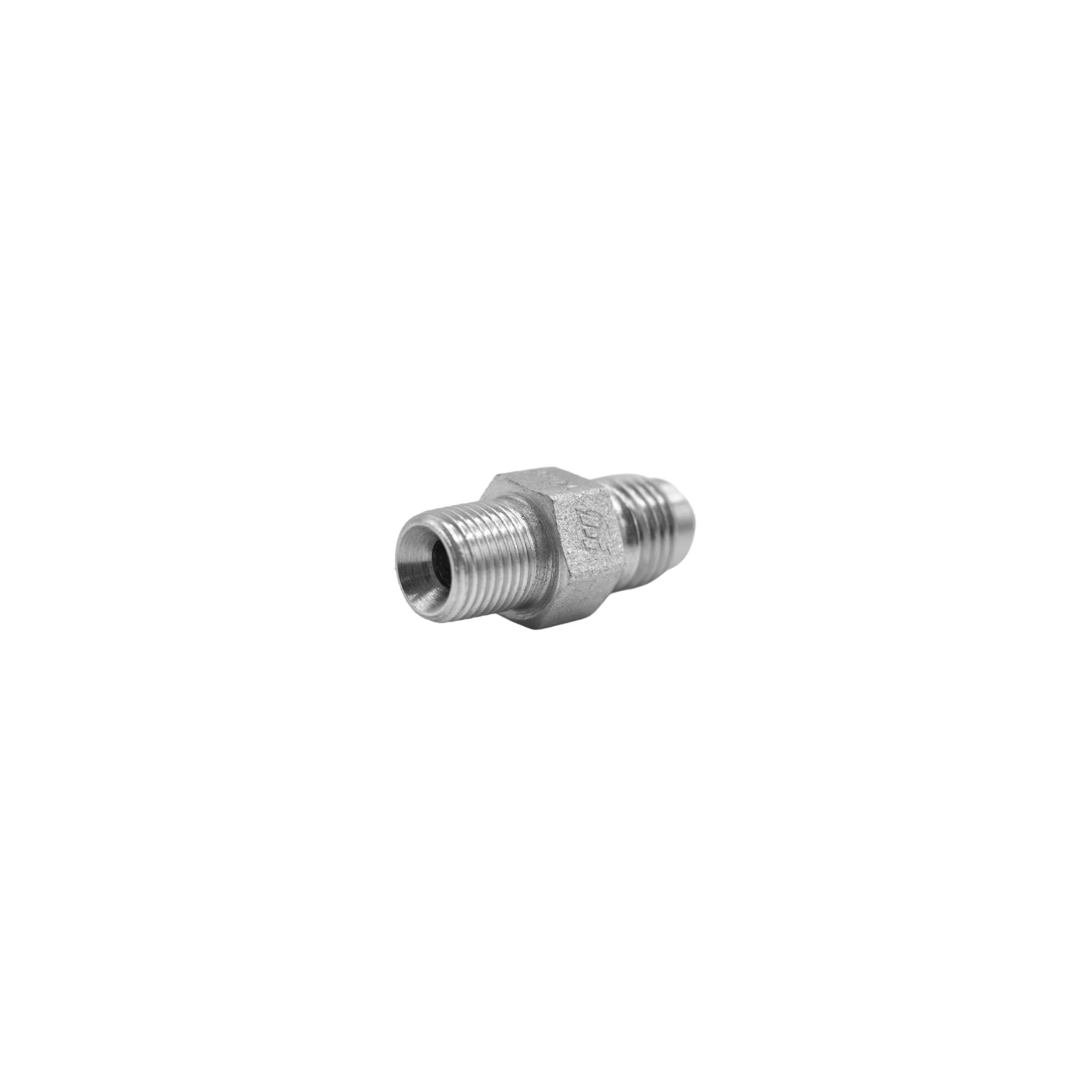

Hydraulics | 04MJ-02MBSPT Straight | 7000-04-02
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 3.8 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/8-28 |
| THREAD DRILL B2 (MM) | 3.8 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 12.0 |
| OVERALL LENGTH L (MM) | 30.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.038 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.264 |
$0.94
Original: $2.70
-65%Hydraulics | 04MJ-02MBSPT Straight | 7000-04-02—
$2.70
$0.94Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 3.8 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/8-28 |
| THREAD DRILL B2 (MM) | 3.8 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 12.0 |
| OVERALL LENGTH L (MM) | 30.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.038 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.264 |
