Hydraulics | 04MJ-02MBSPP Straight | 7002-04-02

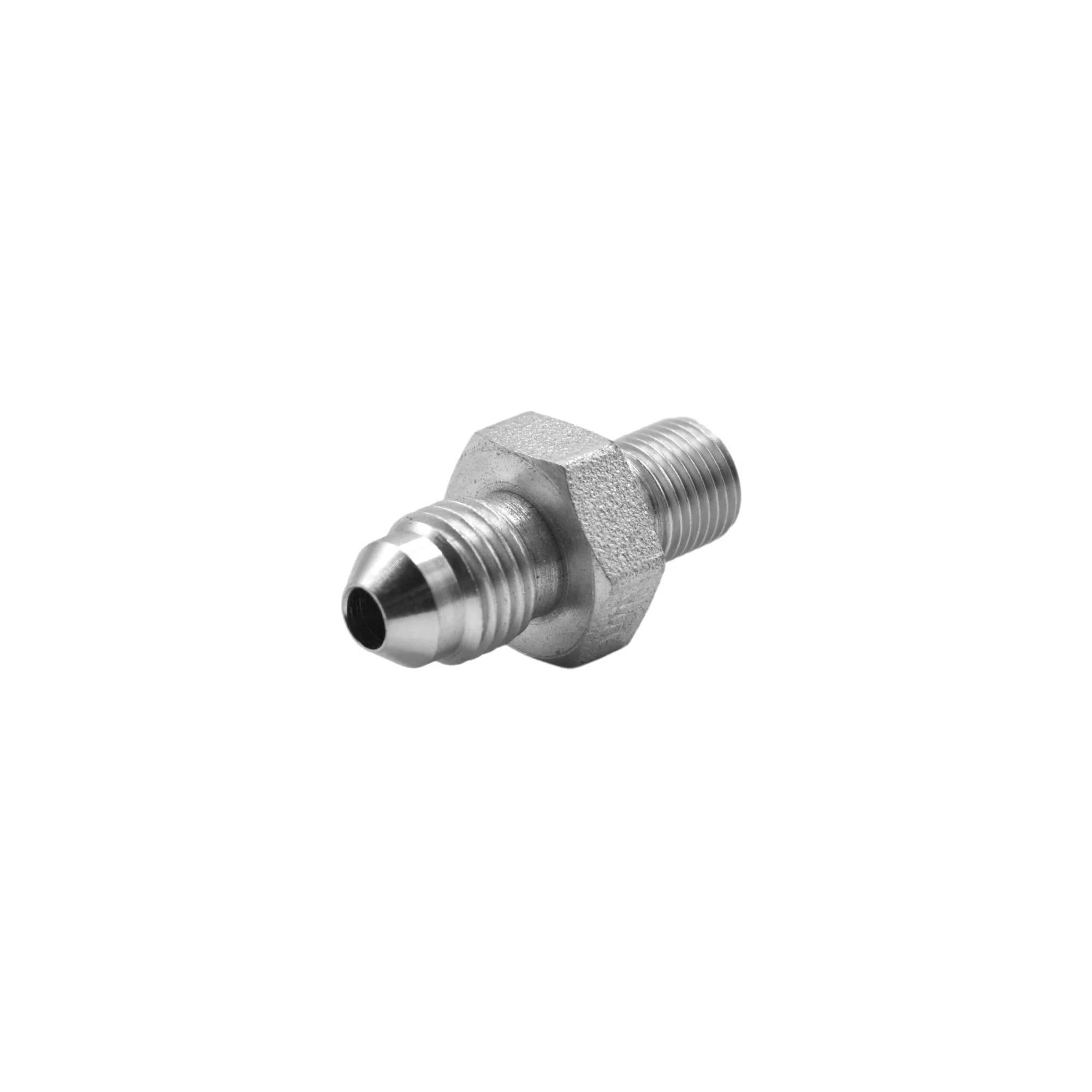

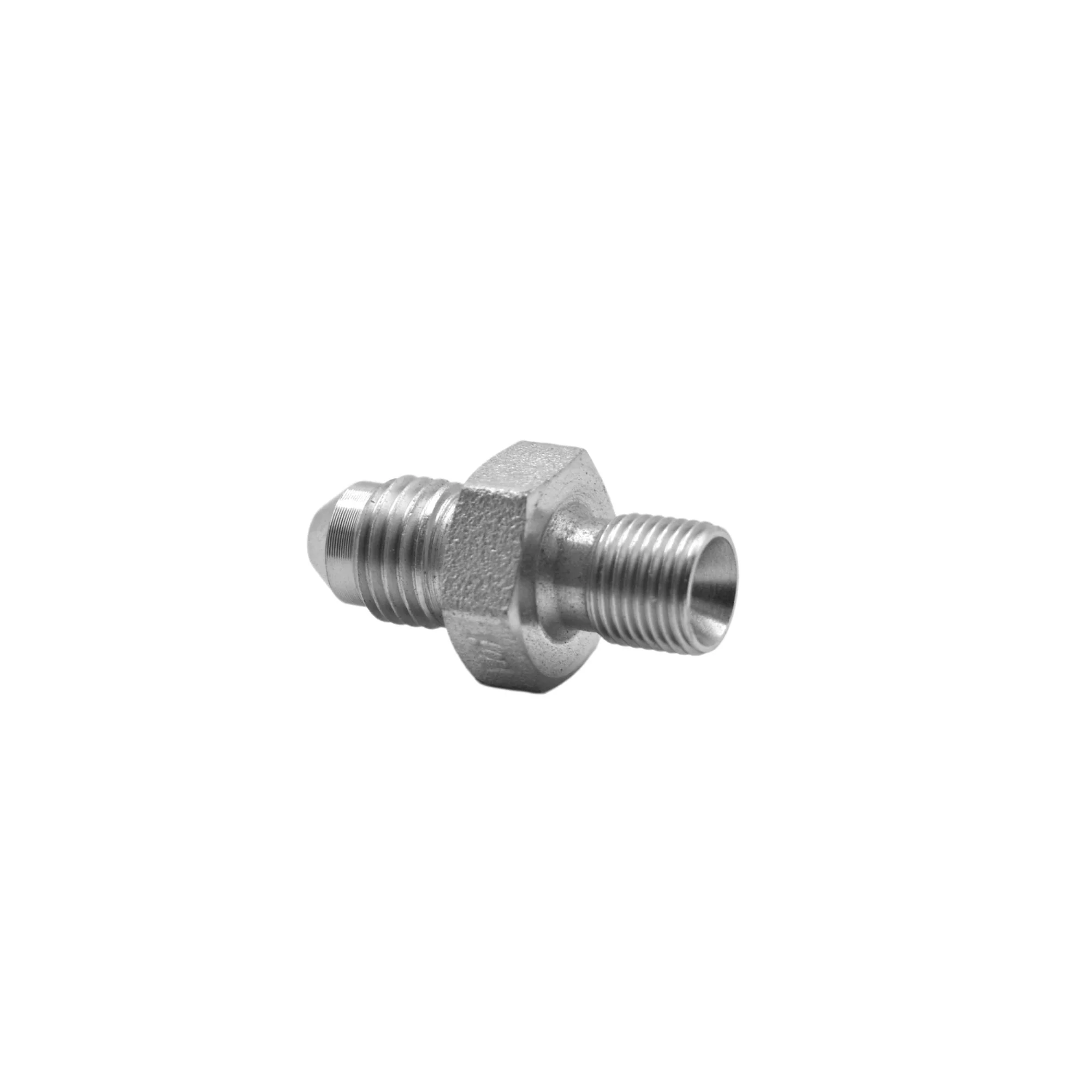

Hydraulics | 04MJ-02MBSPP Straight | 7002-04-02

THREAD TYPE B1 MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1 7/16-20
THREAD DRILL B1 (MM) 4.37
THREAD SPECIFICATION B1 SAE J514
THREAD TYPE B2 MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2 1/8-28
THREAD DRILL B2 (MM) 4.0
THREAD SPECIFICATION B2 60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM) 16.0
OVERALL LENGTH L (MM) 31.5
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.043
MAXIMUM DYNAMIC PRESSURE (PSI) 5,100
CALIFORNIA RESIDENTS PROP-65 WARNING
CUBIC INCH SPACE (L X W X H) 0.492
$1.96

Original: $5.60

-65%
Hydraulics | 04MJ-02MBSPP Straight | 7002-04-02—

$5.60

$1.96

Product Information

Shipping & Returns

Description

THREAD TYPE B1 MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1 7/16-20
THREAD DRILL B1 (MM) 4.37
THREAD SPECIFICATION B1 SAE J514
THREAD TYPE B2 MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2 1/8-28
THREAD DRILL B2 (MM) 4.0
THREAD SPECIFICATION B2 60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM) 16.0
OVERALL LENGTH L (MM) 31.5
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.043
MAXIMUM DYNAMIC PRESSURE (PSI) 5,100
CALIFORNIA RESIDENTS PROP-65 WARNING
CUBIC INCH SPACE (L X W X H) 0.492
