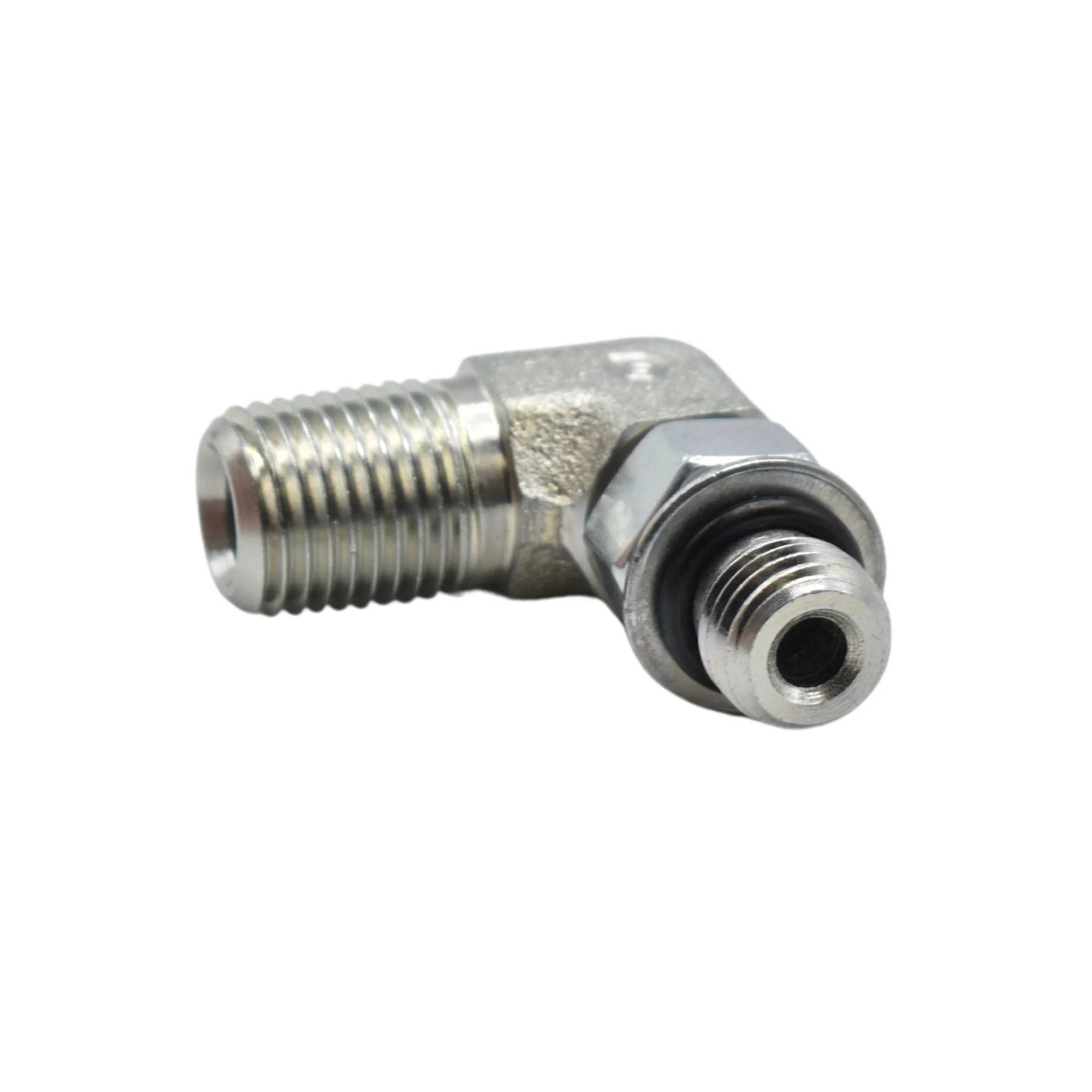

Hydraulics | 04MAORB-04MP 90deg Elb Forg Adapter | 6806-04-04-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.190 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$1.33
Original: $3.80
-65%Hydraulics | 04MAORB-04MP 90deg Elb Forg Adapter | 6806-04-04-NWO-FG—
$3.80
$1.33Product Information
