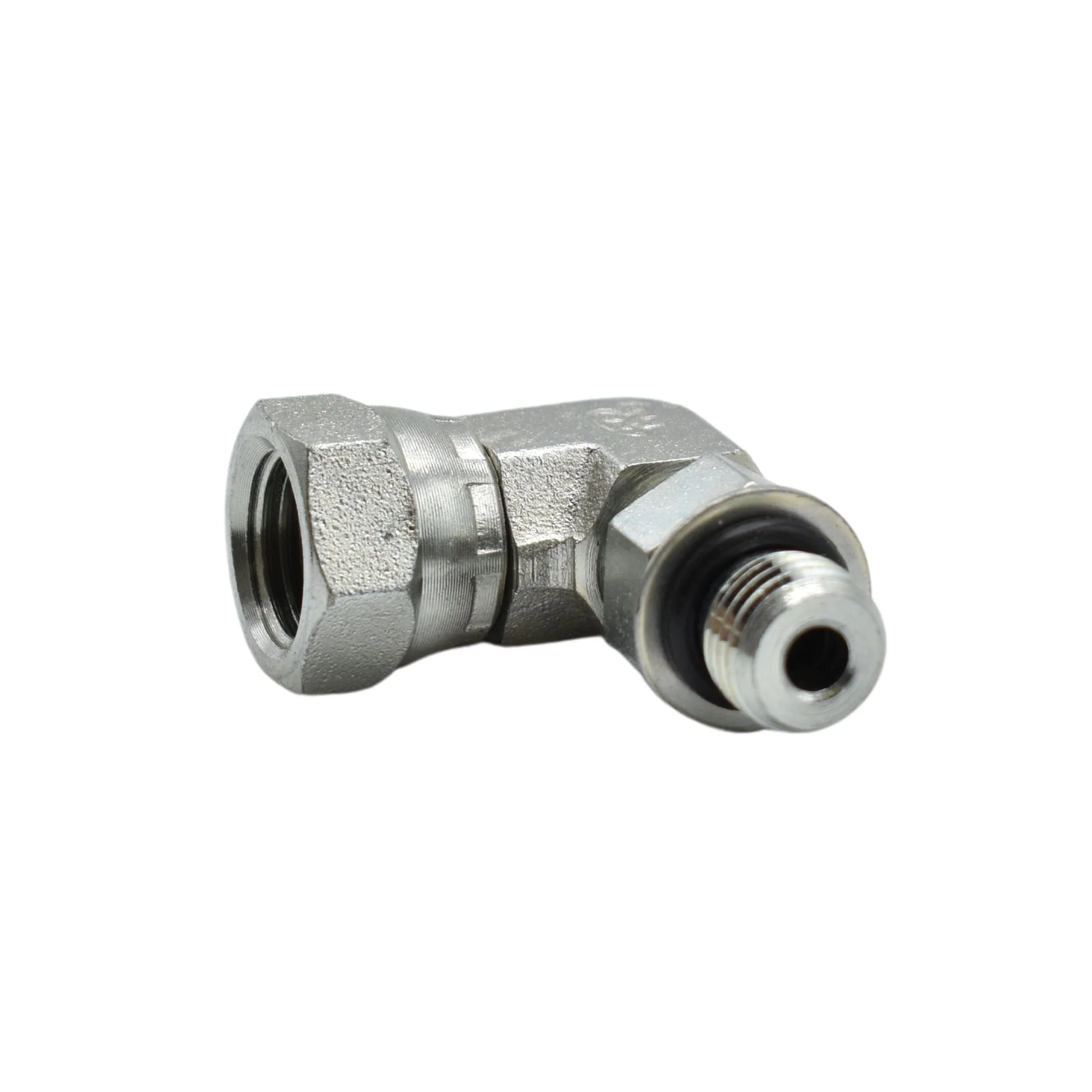

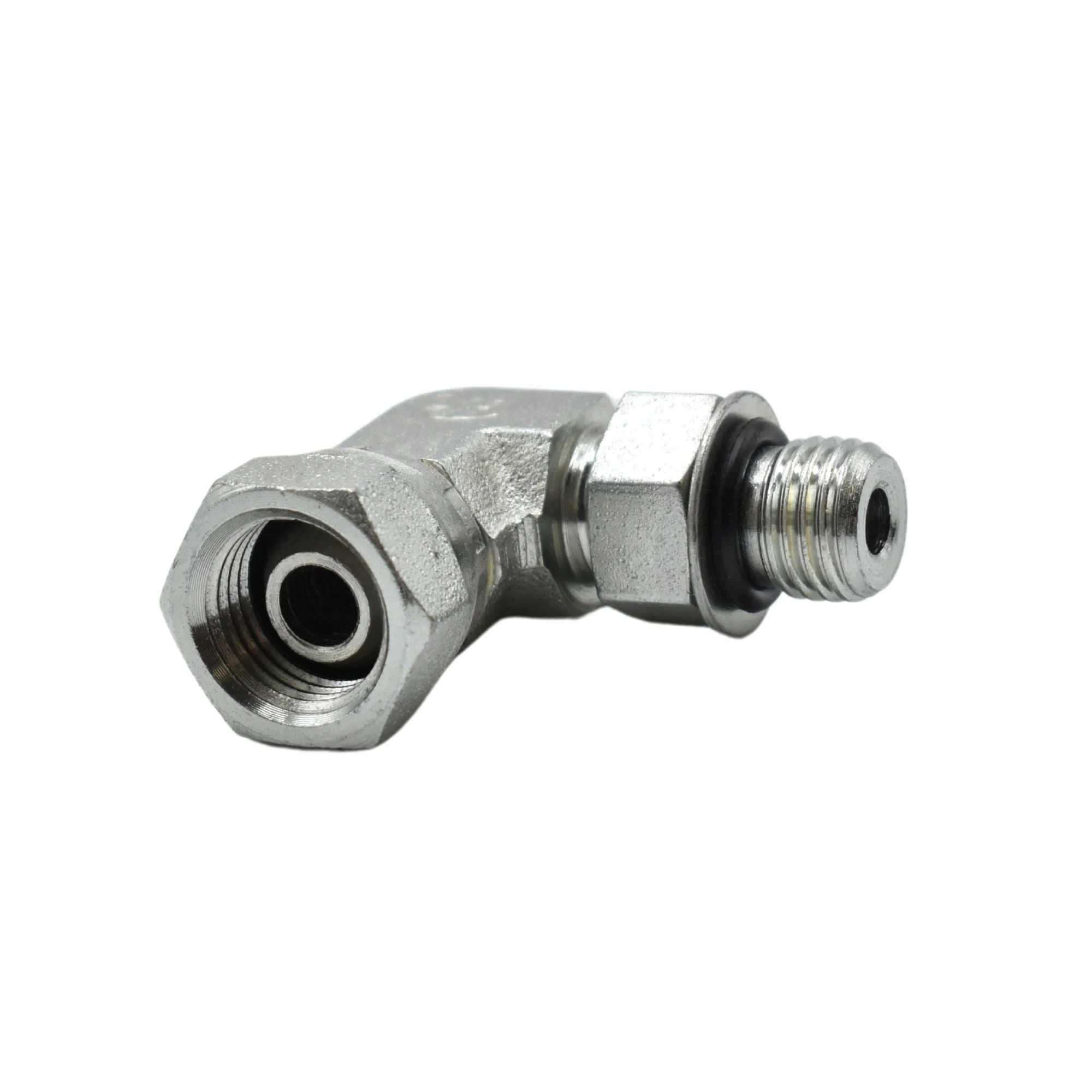

Hydraulics | 04MAORB-04FPS 90deg Elb Forg Adapter | 6901-04-04-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.220 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.563 |
| C HEX 2 IN | 0.688 |
| OVERALL LENGTH L IN | 0.980 |
| OVERALL LENGTH L2 IN | 0.790 |
| CENTERLINE LENGTH M IN | 1.030 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$2.71
Original: $7.74
-65%Hydraulics | 04MAORB-04FPS 90deg Elb Forg Adapter | 6901-04-04-NWO-FG—
$7.74
$2.71Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.220 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.563 |
| C HEX 2 IN | 0.688 |
| OVERALL LENGTH L IN | 0.980 |
| OVERALL LENGTH L2 IN | 0.790 |
| CENTERLINE LENGTH M IN | 1.030 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
