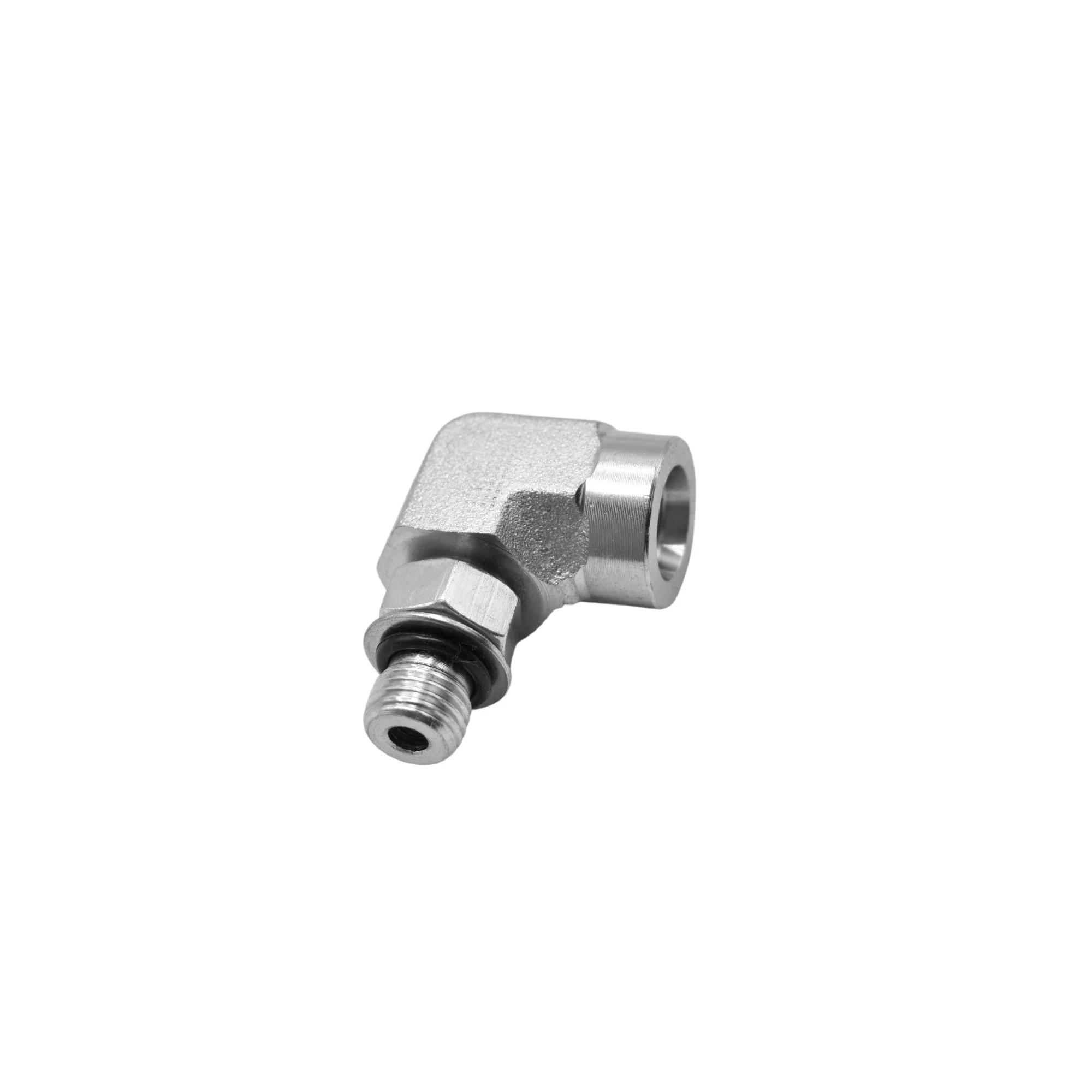

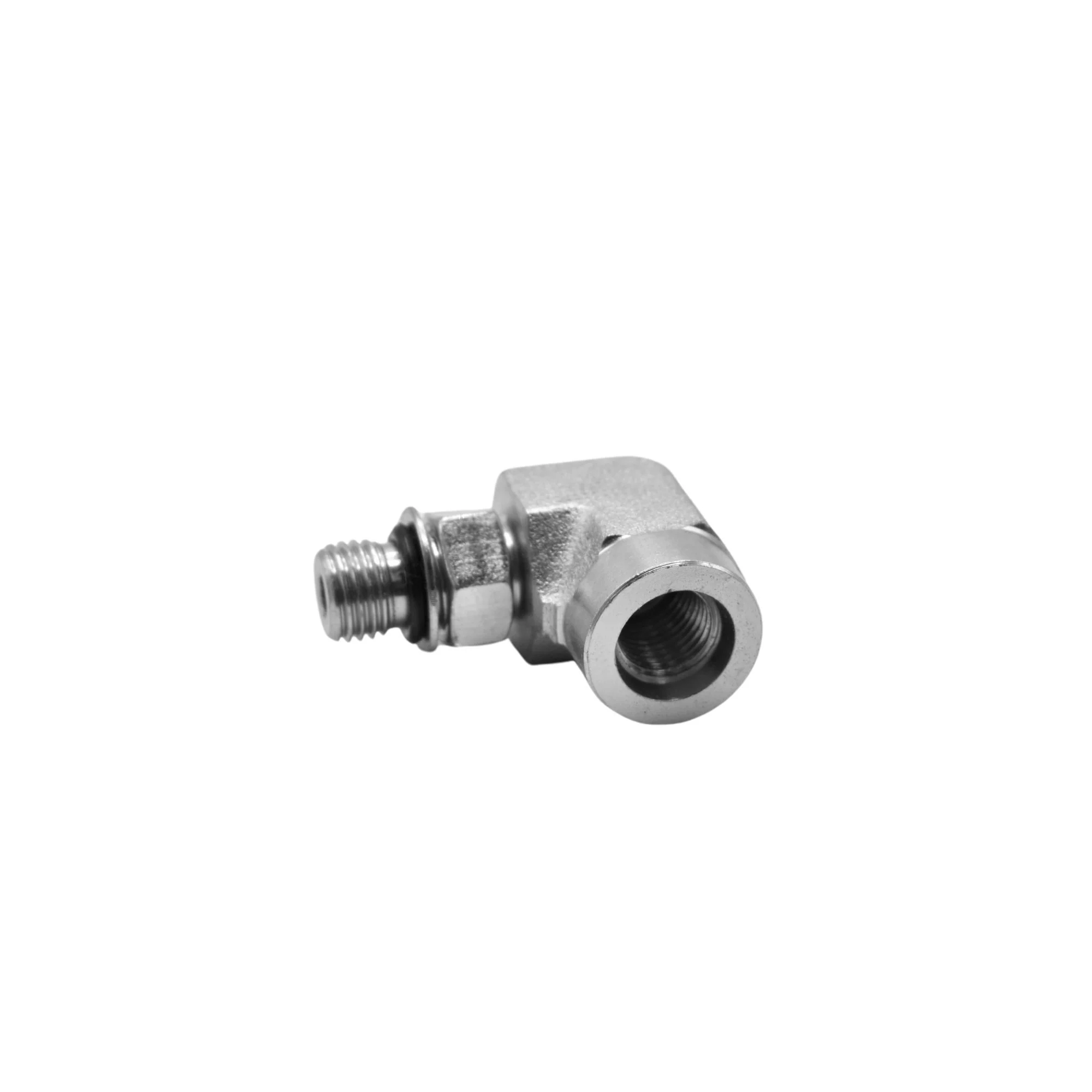

Hydraulics | 04MAORB-04FORB 90deg Elb Forg | 6815-04-04-NWO-FG

Hydraulics | 04MAORB-04FORB 90deg Elb Forg | 6815-04-04-NWO-FG

04MAORB-04FO

THREAD B1 TYPE MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE 7/16-20
THREAD B1 DRILL IN 0.172
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE FEMALE O-RING BOSS
THREAD B2 SIZE 7/16-20
THREAD B2 DRILL IN 0.172
THREAD B2 SPECIFICATION SAE J514
BODY HEX IN 0.750
C HEX 1 IN 0.563
OVERALL LENGTH L IN 0.630
CENTERLINE LENGTH M IN 1.230
SHAPE 90 DEGREE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
O-RING / SEAL MATERIAL NBR
WEIGHT LBS 0.1445
CALIFORNIA RESIDENTS PROP-65 WARNING


$2.97

Original: $8.48

-65%
Hydraulics | 04MAORB-04FORB 90deg Elb Forg | 6815-04-04-NWO-FG—

$8.48

$2.97

Product Information

Shipping & Returns

Description

04MAORB-04FO

THREAD B1 TYPE MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE 7/16-20
THREAD B1 DRILL IN 0.172
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE FEMALE O-RING BOSS
THREAD B2 SIZE 7/16-20
THREAD B2 DRILL IN 0.172
THREAD B2 SPECIFICATION SAE J514
BODY HEX IN 0.750
C HEX 1 IN 0.563
OVERALL LENGTH L IN 0.630
CENTERLINE LENGTH M IN 1.230
SHAPE 90 DEGREE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
O-RING / SEAL MATERIAL NBR
WEIGHT LBS 0.1445
CALIFORNIA RESIDENTS PROP-65 WARNING
