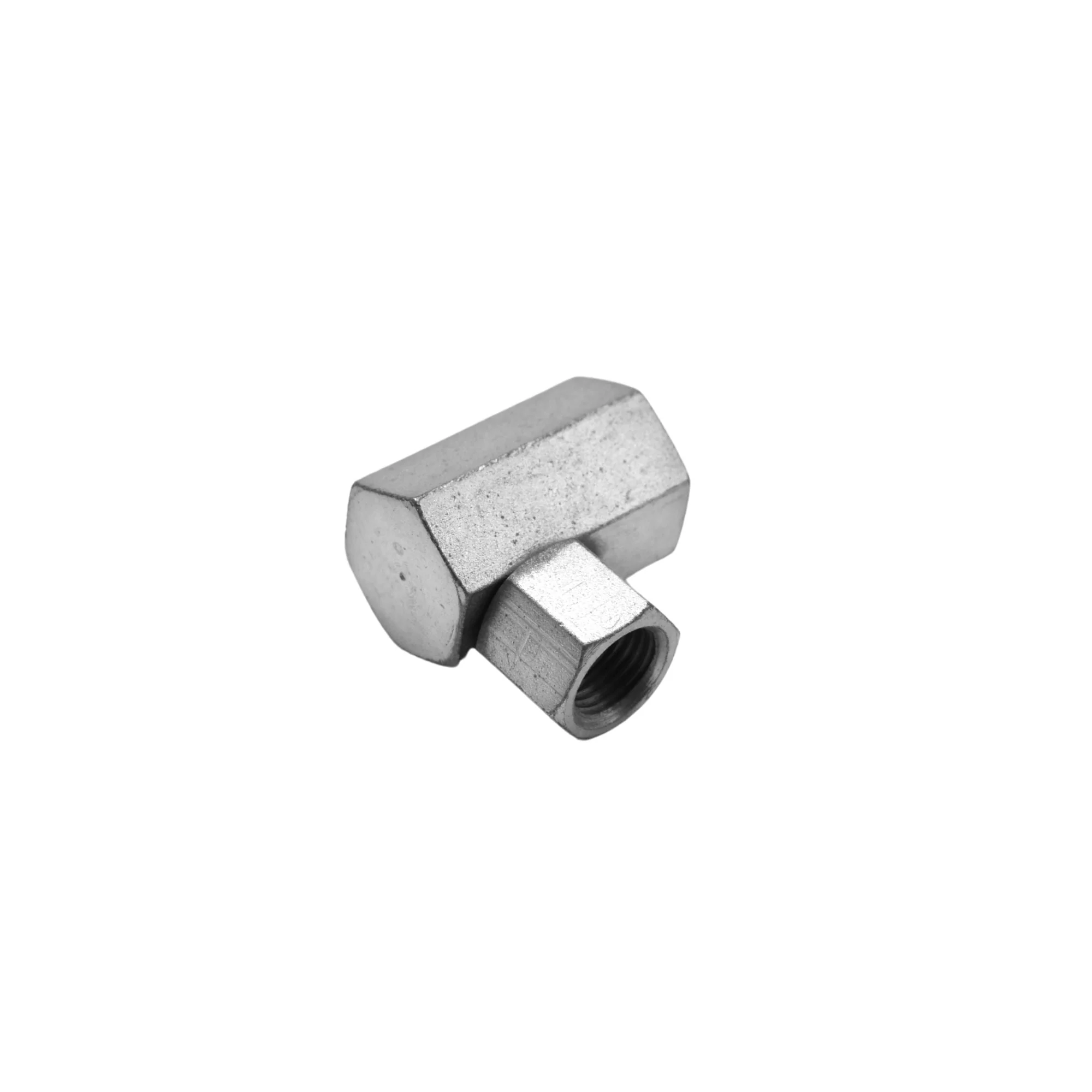

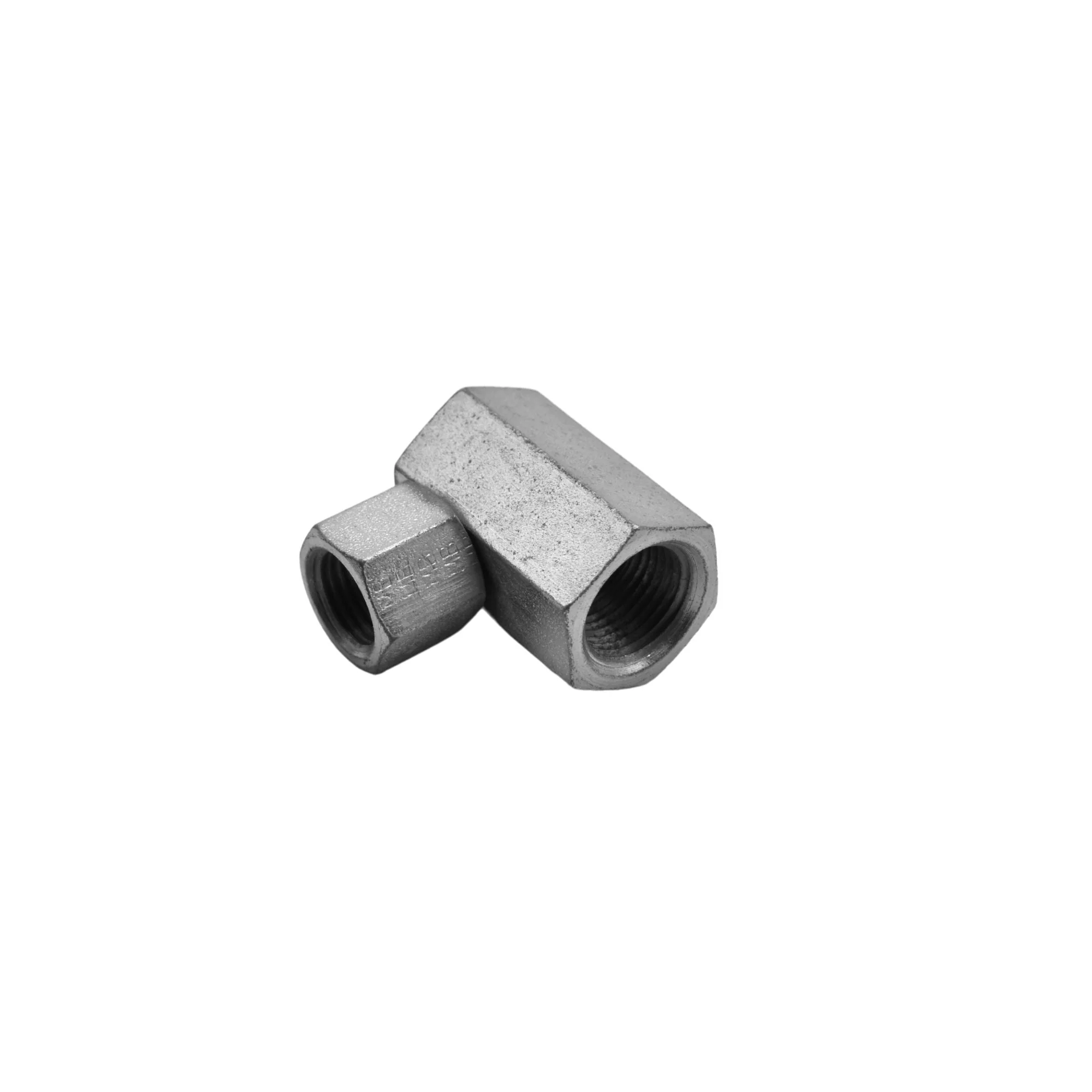

Hydraulics | 04FP-06FPS 90deg Elb | 1502-04-06-FG
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.320 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.010 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.58 |
$2.80
Original: $7.99
-65%Hydraulics | 04FP-06FPS 90deg Elb | 1502-04-06-FG—
$7.99
$2.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.320 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.010 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.58 |
