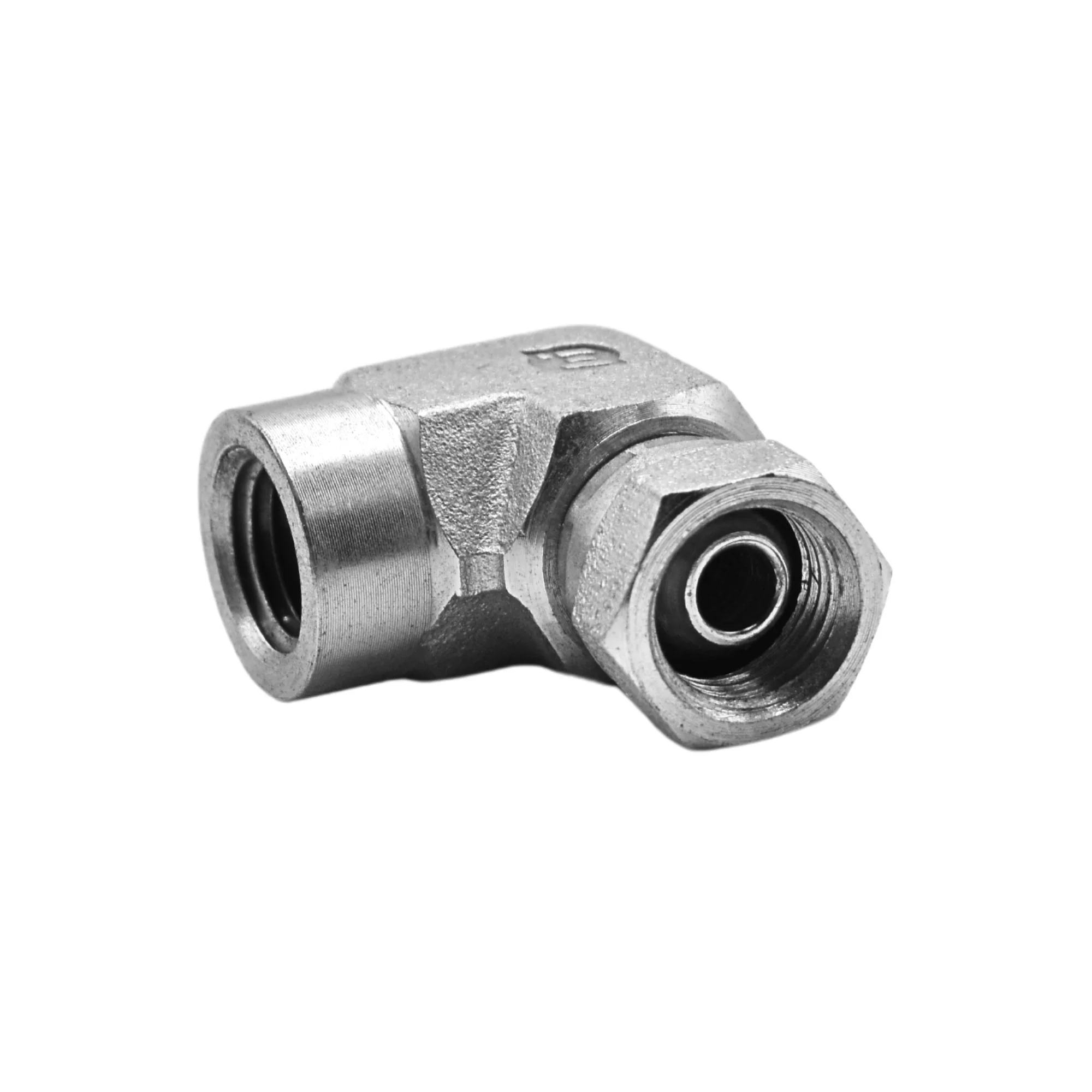

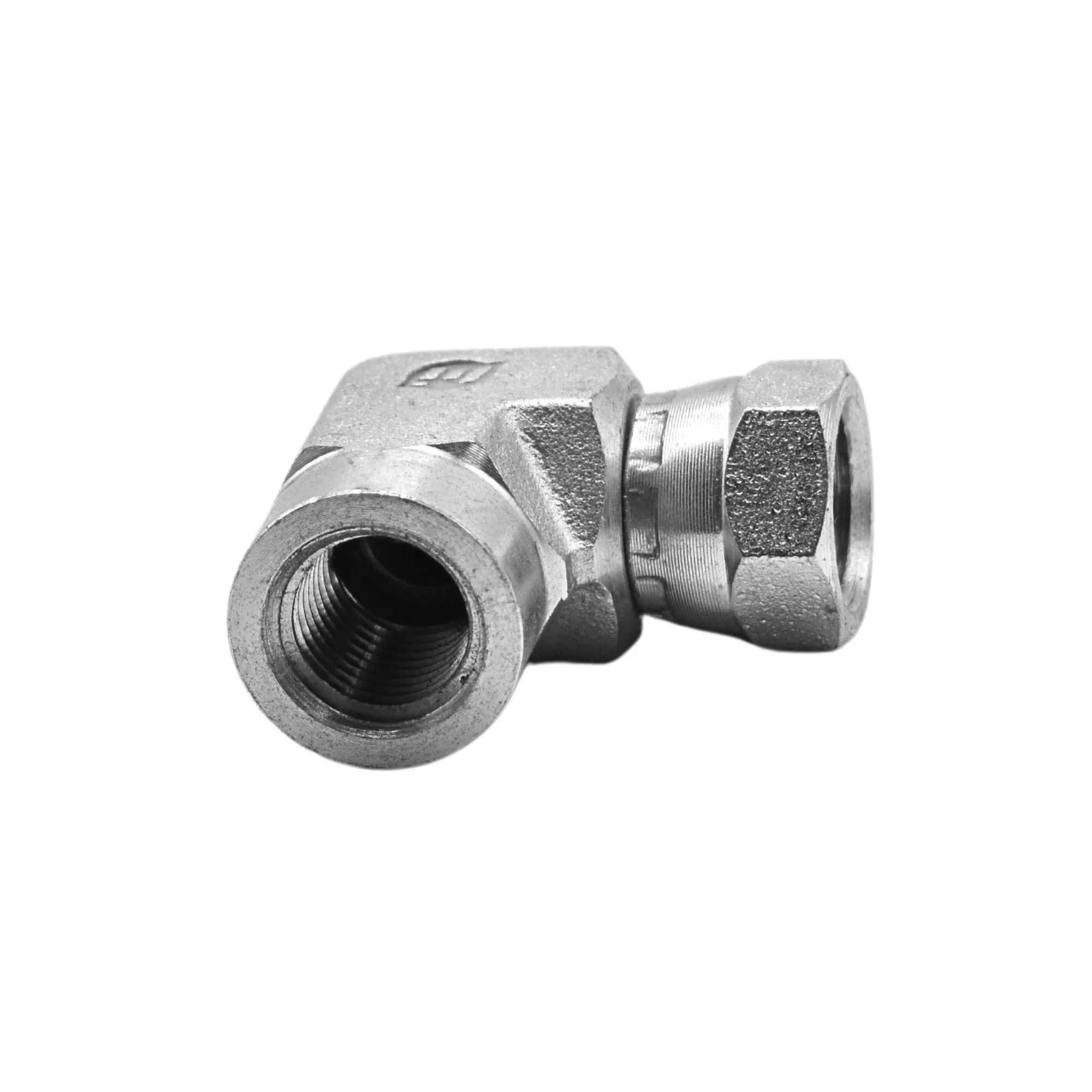

Hydraulics | 04FP-04FPS 90deg Elb Forg Adapter | 1502-04-04-FG
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.180 |
| CENTERLINE LENGTH M2 IN | 0.990 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.43 |
$2.29
Original: $6.55
-65%Hydraulics | 04FP-04FPS 90deg Elb Forg Adapter | 1502-04-04-FG—
$6.55
$2.29Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.180 |
| CENTERLINE LENGTH M2 IN | 0.990 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.43 |
