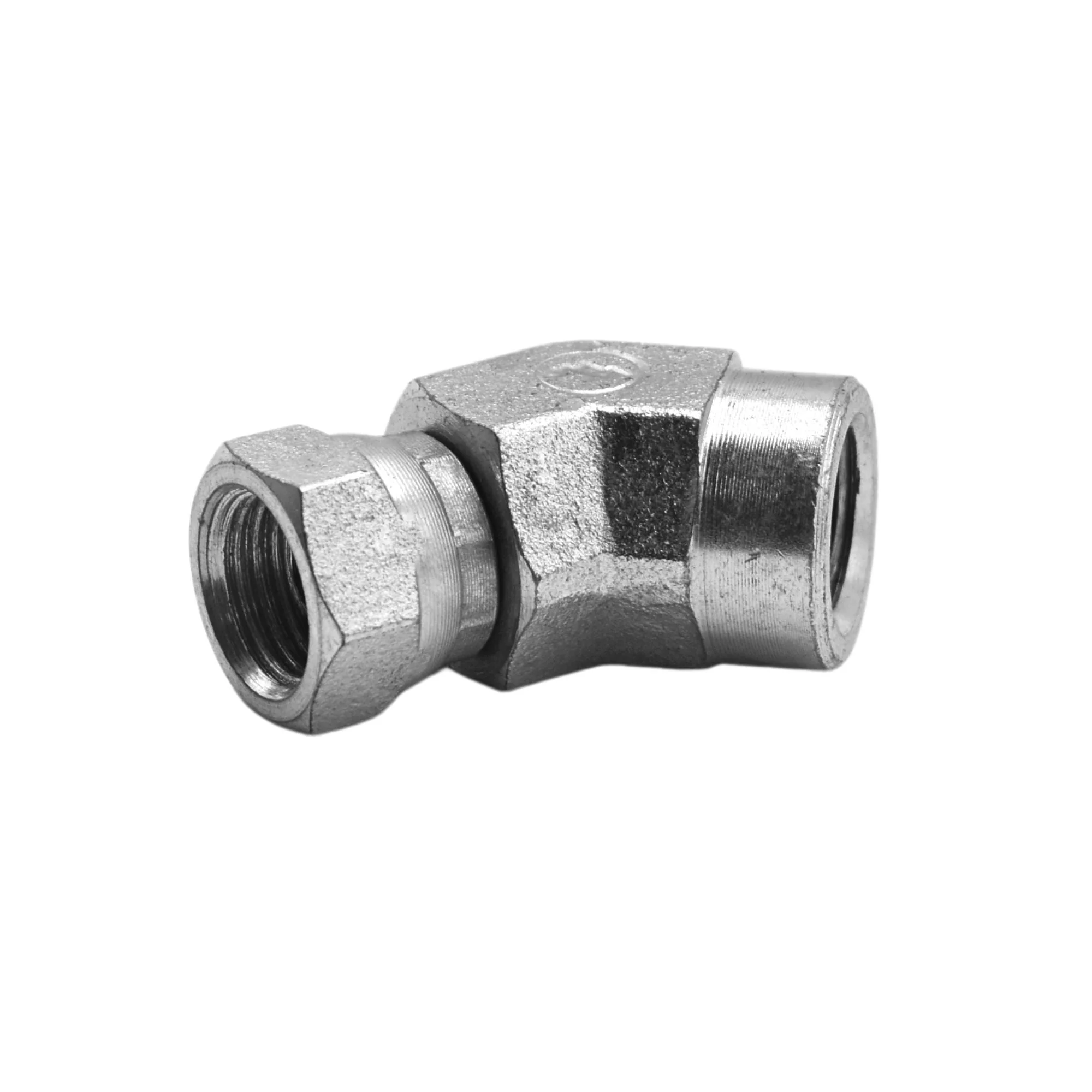

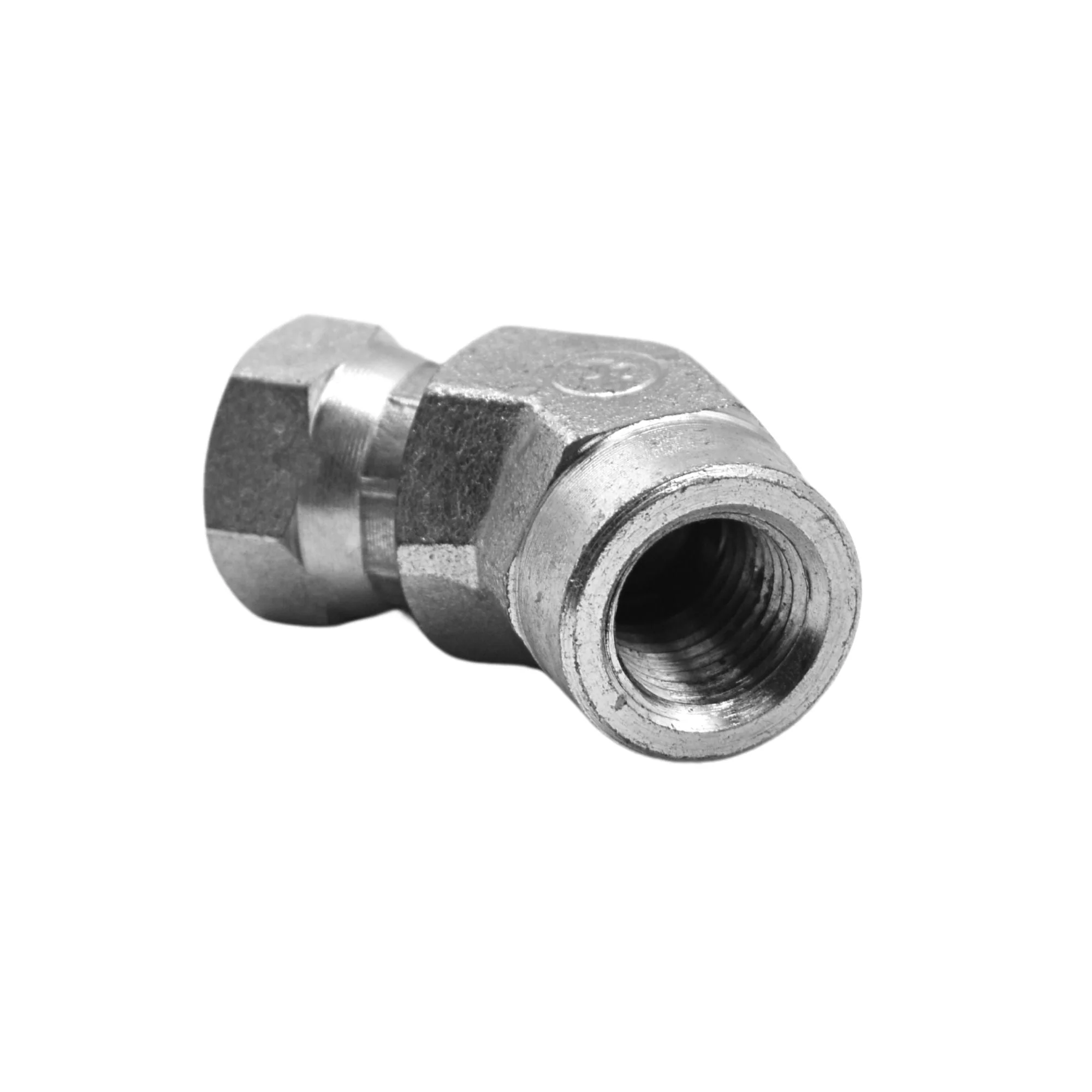

Hydraulics | 04FP-04FPS 45deg Elb Forg Adapter | 1504-04-04-FG
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 0.690 |
| CENTERLINE LENGTH M IN | 0.760 |
| CENTERLINE LENGTH M2 IN | 0.950 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$3.38
Original: $9.67
-65%Hydraulics | 04FP-04FPS 45deg Elb Forg Adapter | 1504-04-04-FG—
$9.67
$3.38Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 0.690 |
| CENTERLINE LENGTH M IN | 0.760 |
| CENTERLINE LENGTH M2 IN | 0.950 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
