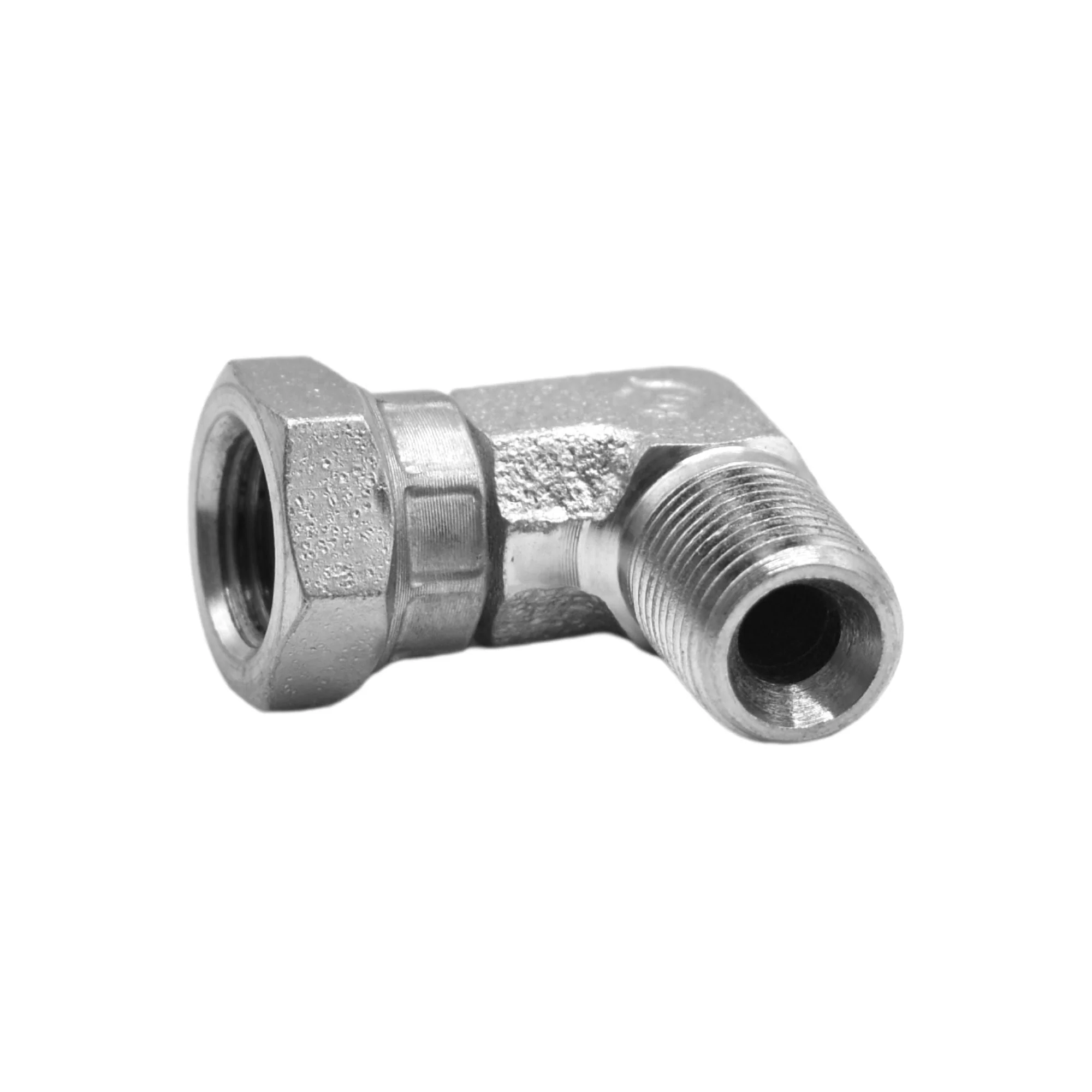

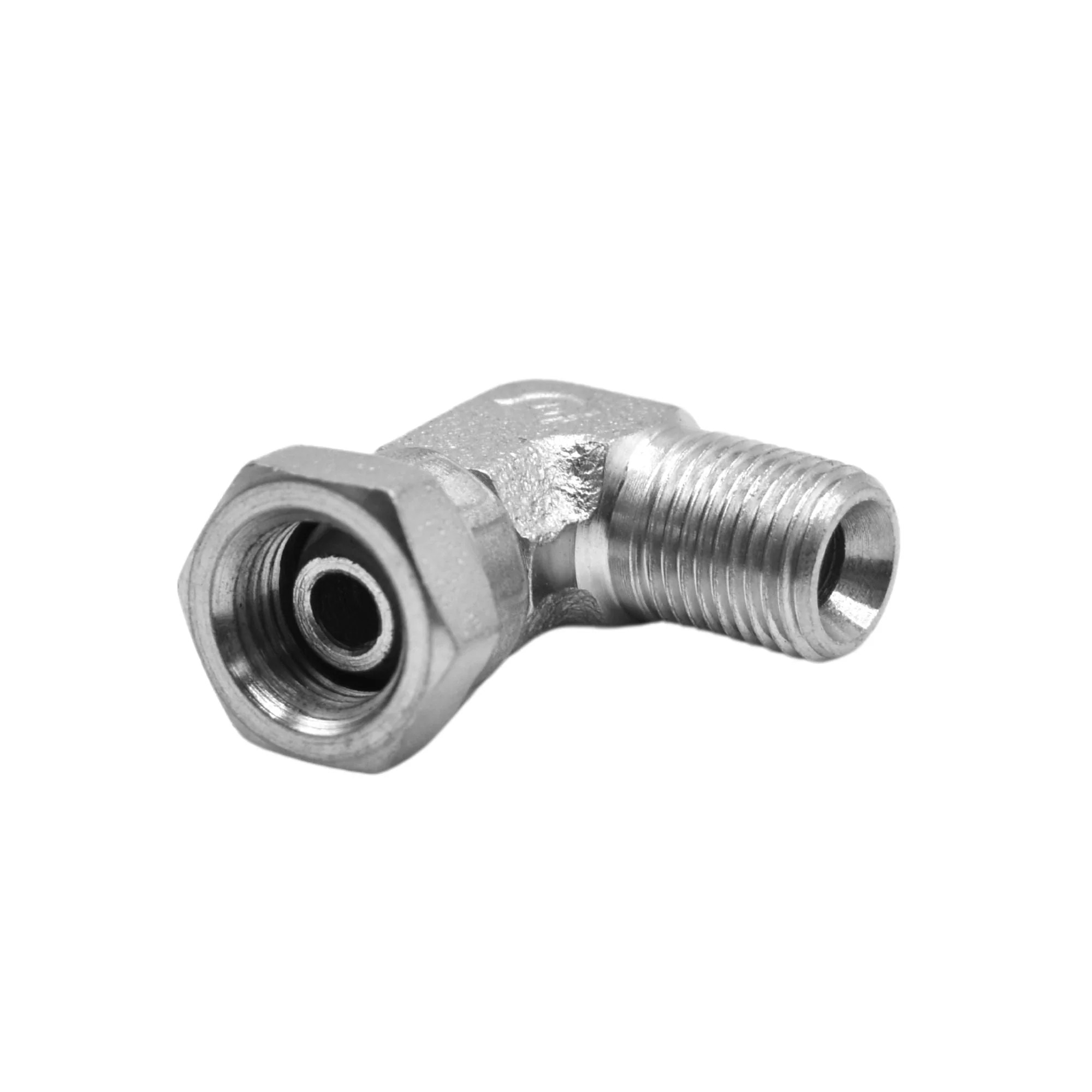

Hydraulics | 02MP-02FPS 90* Elb Forg Adapter | 1501-02-02-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.110 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.720 |
| CENTERLINE LENGTH M IN | 0.840 |
| CENTERLINE LENGTH M2 IN | 0.700 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0562 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.596 |
$1.69
Original: $4.82
-65%Hydraulics | 02MP-02FPS 90* Elb Forg Adapter | 1501-02-02-FG—
$4.82
$1.69Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.110 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.720 |
| CENTERLINE LENGTH M IN | 0.840 |
| CENTERLINE LENGTH M2 IN | 0.700 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0562 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.596 |
