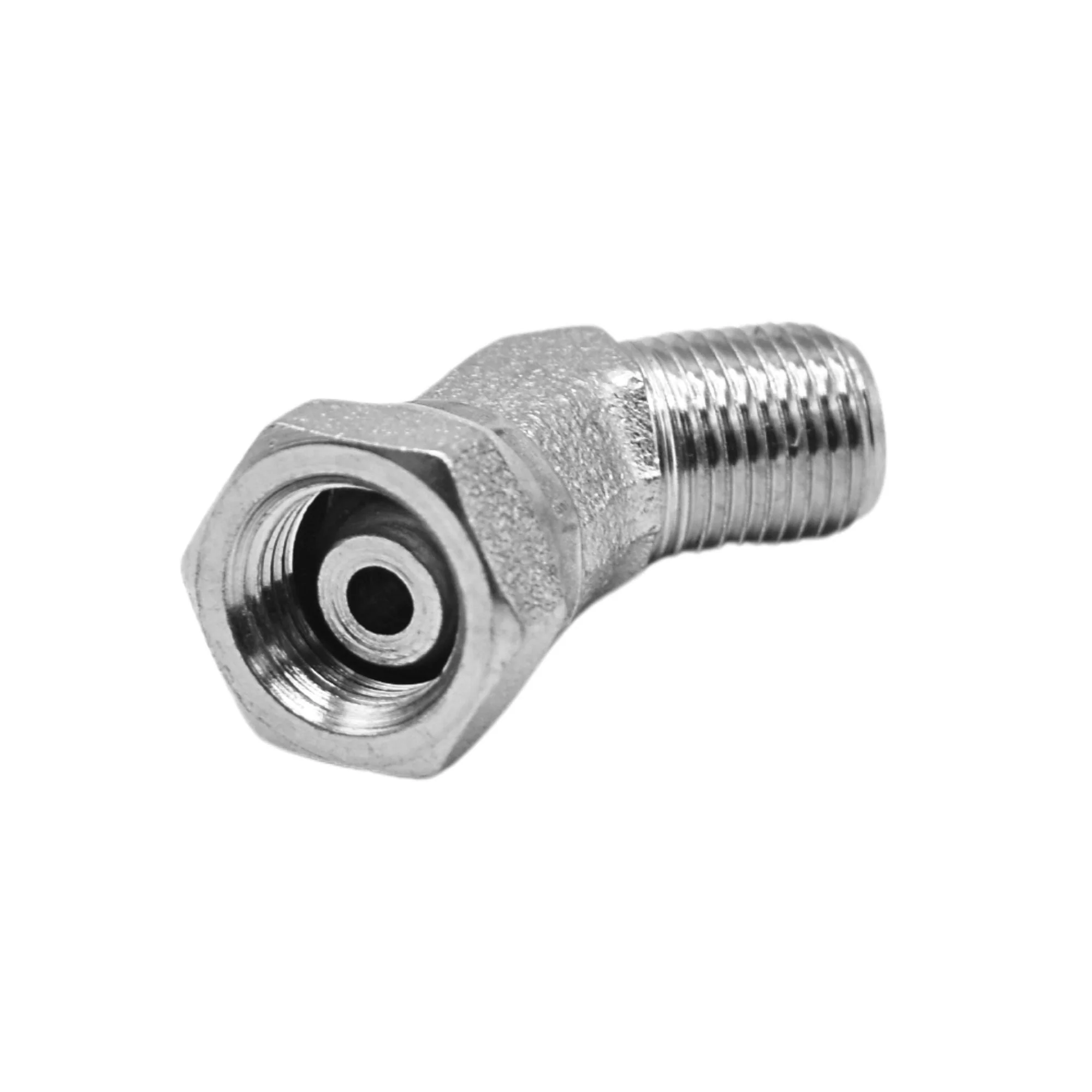

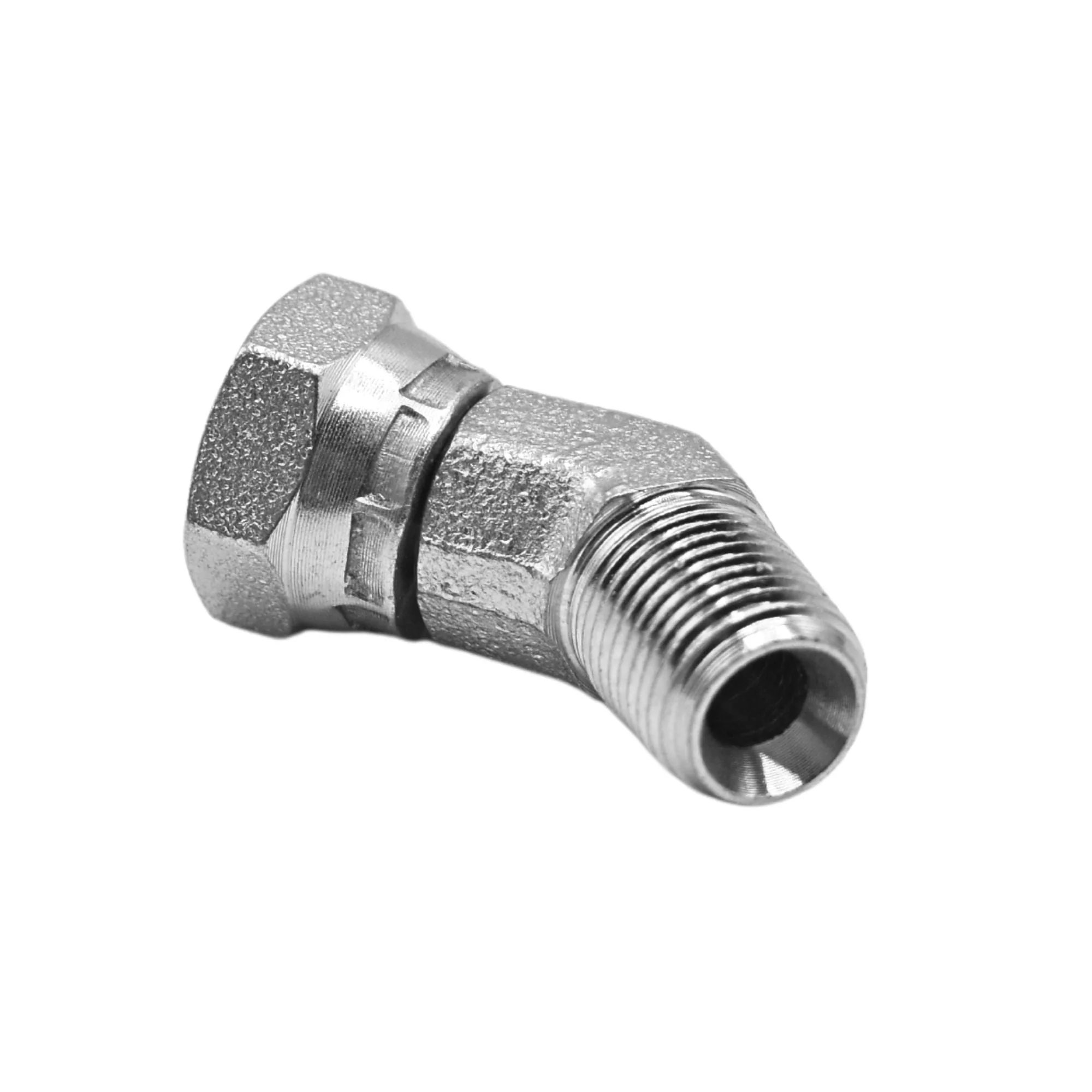

Hydraulics | 02MP-02FPS 45deg Elb Forg Adapter | 1503-02-02-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.150 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.520 |
| CENTERLINE LENGTH M IN | 0.760 |
| CENTERLINE LENGTH M2 IN | 0.620 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0448 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.704 |
$1.65
Original: $4.72
-65%Hydraulics | 02MP-02FPS 45deg Elb Forg Adapter | 1503-02-02-FG—
$4.72
$1.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.150 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.520 |
| CENTERLINE LENGTH M IN | 0.760 |
| CENTERLINE LENGTH M2 IN | 0.620 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0448 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.704 |
