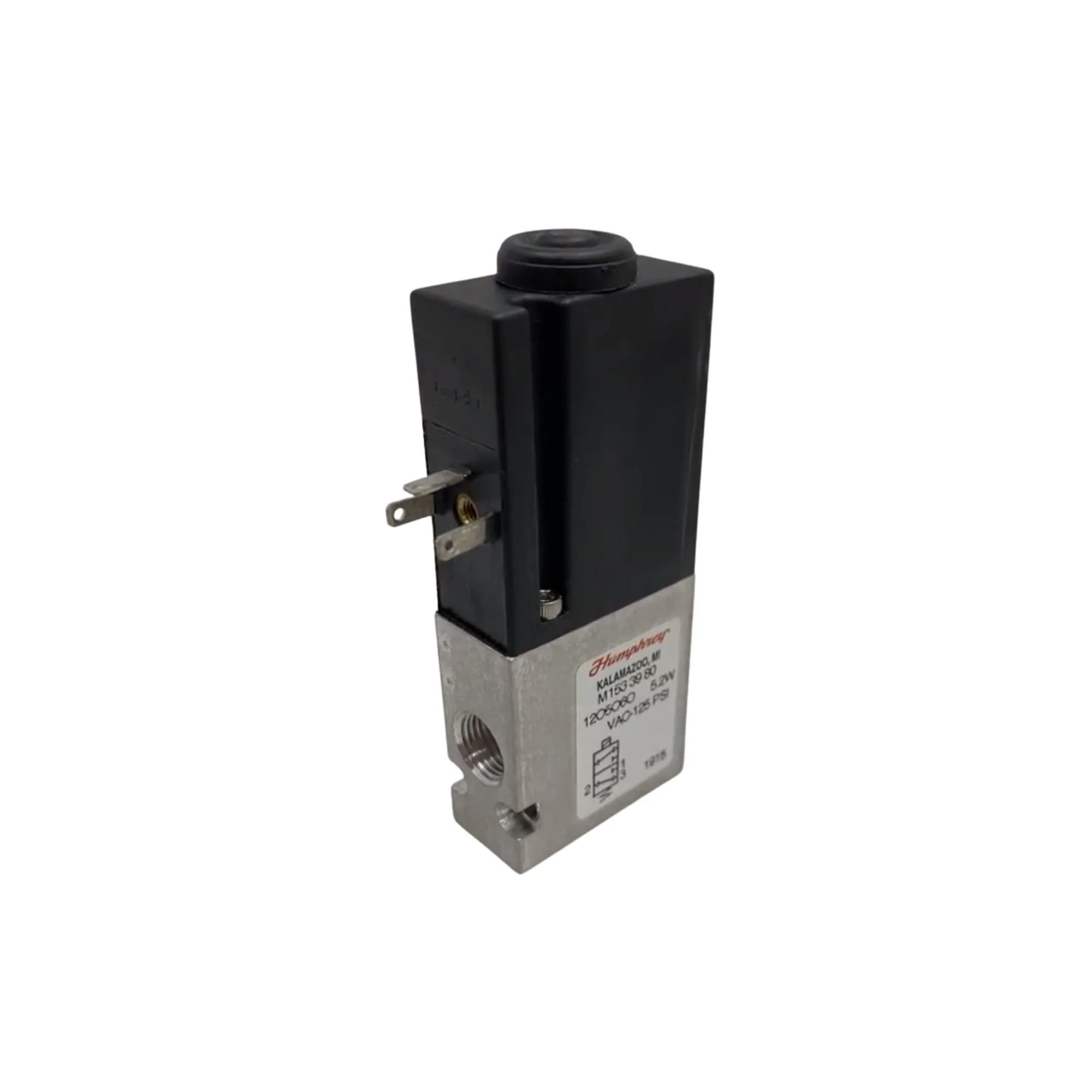

Humphrey | Manifold 3/2 Single Solenoid, 1/8 in NPTF, 120/50/60 | M153-39-80-120/50/60
1/8 NPSF, 15mm wide 153 Balanced Valve is compact, high flow and cost effective. Direct acting, this 3-port solenoid valve can operate reliably through the full pressure spectrum of vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector function. Plug 1 or 3 port for 2-way function. Made in USA. RoHS and REACH compliant.
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Valve Function | Single Solenoid, Multi-purpose |
| Piping Type | Manifold, Subbase 1&3 Port Piping |
| Coil Entry Orientation | Standard, over Port 2 |
| Size (in) HxWxD | 3 x 0.59 x 1.25 |
| Media | Air, Inert Gas, Vacuum |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 0.25 |
| Port Size | 1/8 NPSF |
| Lubrication | Not Required |
| Media Filtration | 40 Micron Recommended |
| Pressure Range (psi) | -25"Hg-125 |
| Response Time - ON/OFF (ms) | 8/35 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Anodized Aluminum, Brass, SST, Buna N |
| Weight (oz) | 3.0 |
| Electrical Entry | DIN style, Micro Type C (9.4mm) |
| Voltage | 120/50/60 |
| Voltage Range | +/-10% |
| Power Consumption (w) | 5.2 |
| Manual Override | Non-Locking |
| Compliance | RoHS, REACH |
Original: $48.41
-65%$48.41
$16.94Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
1/8 NPSF, 15mm wide 153 Balanced Valve is compact, high flow and cost effective. Direct acting, this 3-port solenoid valve can operate reliably through the full pressure spectrum of vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector function. Plug 1 or 3 port for 2-way function. Made in USA. RoHS and REACH compliant.
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Valve Function | Single Solenoid, Multi-purpose |
| Piping Type | Manifold, Subbase 1&3 Port Piping |
| Coil Entry Orientation | Standard, over Port 2 |
| Size (in) HxWxD | 3 x 0.59 x 1.25 |
| Media | Air, Inert Gas, Vacuum |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 0.25 |
| Port Size | 1/8 NPSF |
| Lubrication | Not Required |
| Media Filtration | 40 Micron Recommended |
| Pressure Range (psi) | -25"Hg-125 |
| Response Time - ON/OFF (ms) | 8/35 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Anodized Aluminum, Brass, SST, Buna N |
| Weight (oz) | 3.0 |
| Electrical Entry | DIN style, Micro Type C (9.4mm) |
| Voltage | 120/50/60 |
| Voltage Range | +/-10% |
| Power Consumption (w) | 5.2 |
| Manual Override | Non-Locking |
| Compliance | RoHS, REACH |
