80/20 | 40 Series Standard End Fastener, M8 | 40-3891

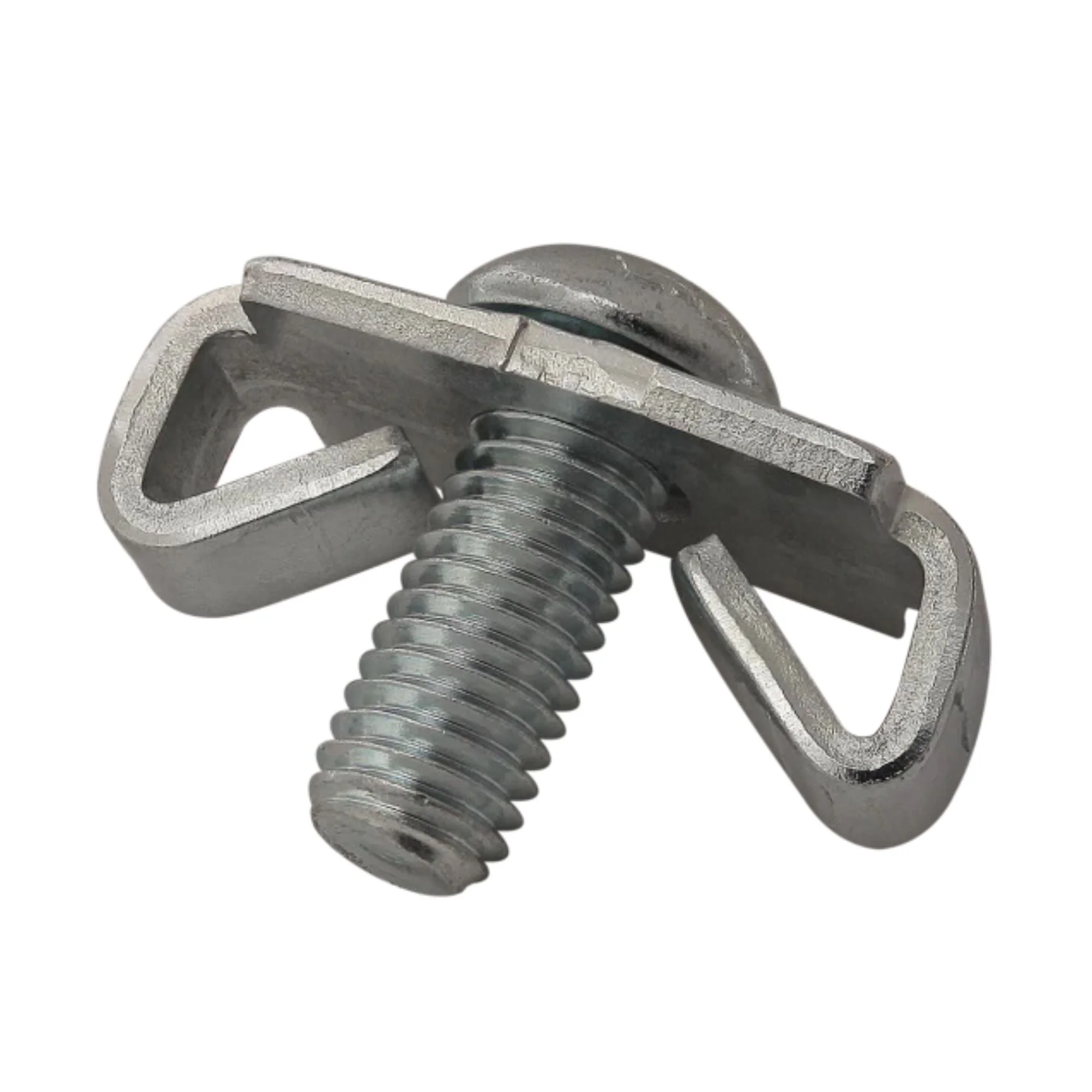

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.
